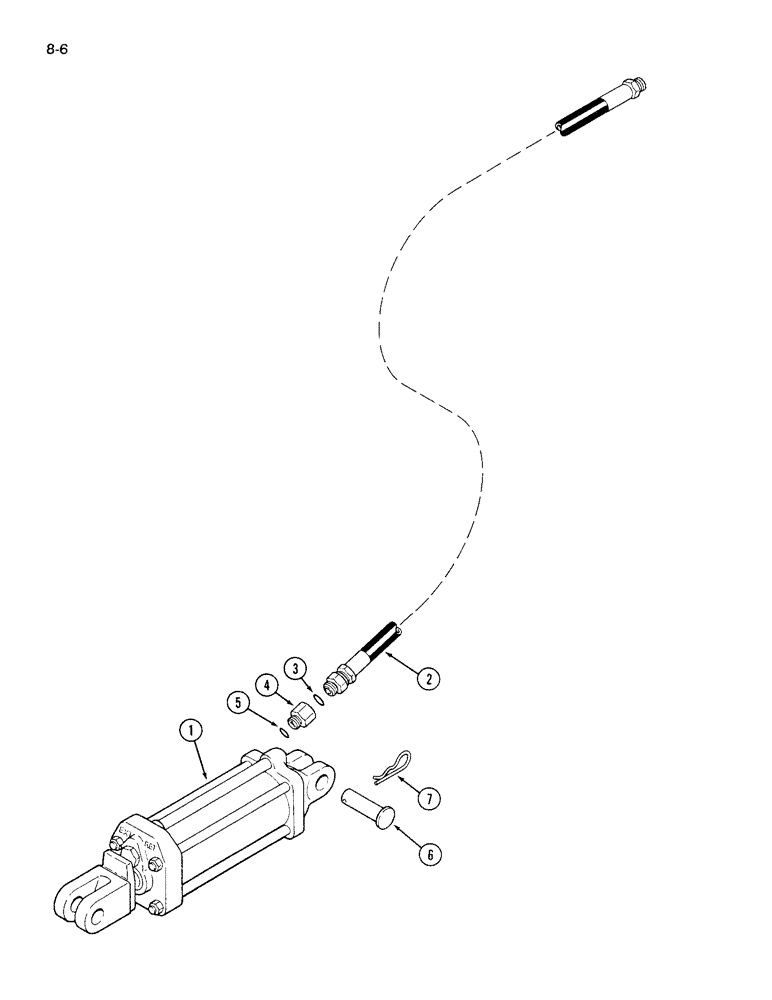

Запчасти Case IH 770 (8-06) - HYDRAULIC EQUIPMENT, DEPTH CONTROL, 3-1/2 INCH BORE X 8 INCH STROKE

1

REF

INSTRUCTION

CYLINDER - hydraulic, 3-1/2 bore x 8 inch stroke (If equipped)(See Pages 8-9 and 8-11)

1шт.

2

630457R91

HOSE ASSY.

HOSE ASSEMBLY - hydraulic, 132 inch long

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

4

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female o-ring boss

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

6

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

7

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

2шт.
