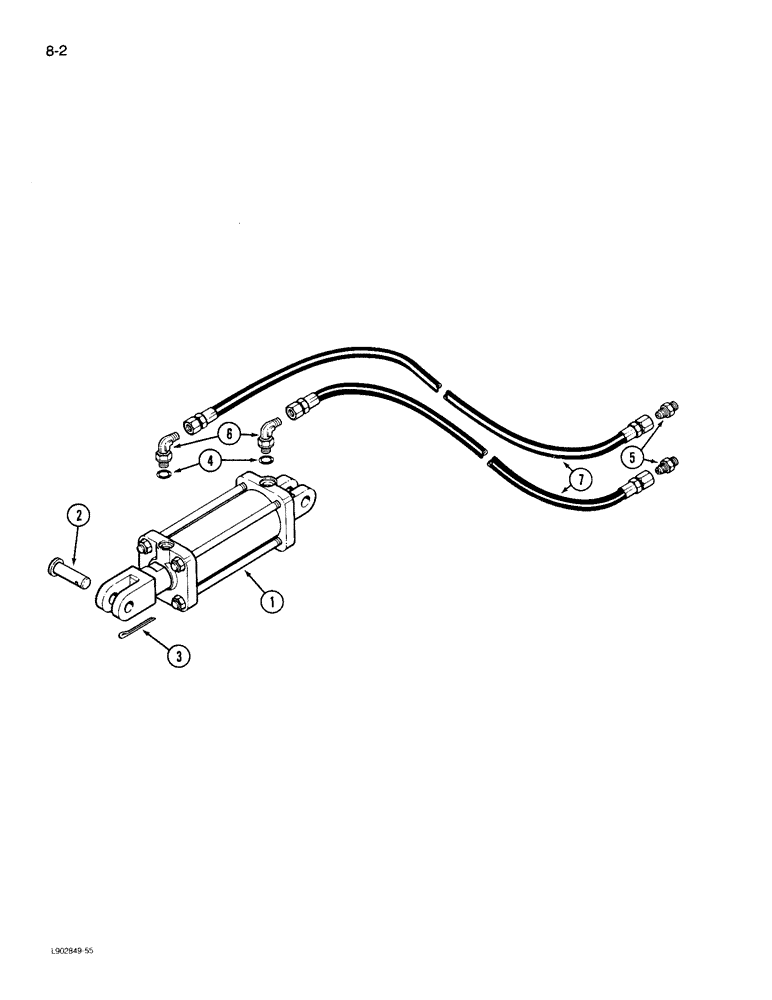

Запчасти Case IH 770 (8-02) - HYDRAULIC EQUIPMENT, DEPTH CONTROL, 4 INCH BORE X 8 INCH STROKE

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - 4 x 8 inch (See page 8-5)

1шт.

2

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

3

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

5

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

2шт.

7

139519C2

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 3/8 x 135 inch long

2шт.
