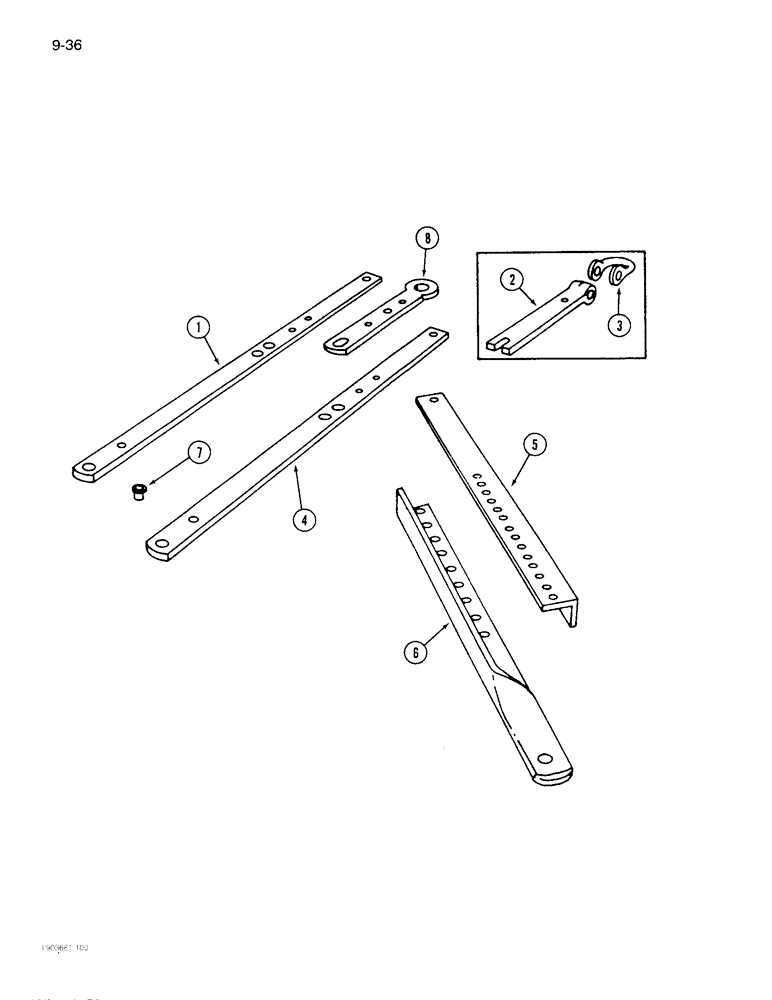

Запчасти Case IH 770 (9-36) - RIGID HITCH

1

526569R2

BAR

DRAWBAR - upper

1шт.

424-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 2

- hex, 5/8 NC x 3 inch

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

424-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 2

- hex, 5/8 NC x 3-1/2 inch

1шт.

424-1456

BOLT,Hex, 7/8" - 9 x 3-1/2", Gr 2

- hex, 7/8 NC x 3-1/2 inch, Grade 2

1шт.

425-1010

NUT,5/8"-11, G5

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

129-109

NUT,7/8"-9, G5

2шт.

492-11088

LOCK WASHER,7/8"

7/8"

1шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

2

526572R1

HEAD - drawbar

1шт.

3

526568R1

CLEVIS

- hitch

1шт.

21798R1

BOLT

- hex, 1 NC x 4-3/4 inch

1шт.

129-110

NUT,1"-8, G5

1шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

4

526570R2

BAR

DRAWBAR - lower

1шт.

5

526573R1

BRACE

- front diagonal

1шт.

424-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 2

- hex, 5/8 NC x 1-3/4 inch

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

526574R1

BRACE

- rear diagonal

1шт.

21707R1

BOLT,Hex, 7/8" - 9 x 3 3/4", Gr 2

- special

1шт.

129-109

NUT,7/8"-9, G5

1шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

7

554327R1

SPACER,7/8" Tube x 1"

- tube, 7/8 x 1 inch

1шт.

8

540037R1

EXTENSION

- pull bar

1шт.

100682C3

CHAIN (AG)

CHAIN ASSEMBLY - safety, 5/16 link x 59-1/4 inch

1шт.

148558C1

CLEVIS

1шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

20033R1

LOCK NUT

NUT - hex lock, 5/8 inch NC

1шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

495-81029

WASHER,0.66" ID x 2" OD x 0.12" Thk

- flat, 21/32 x 2 x 7/64 inch

1шт.
