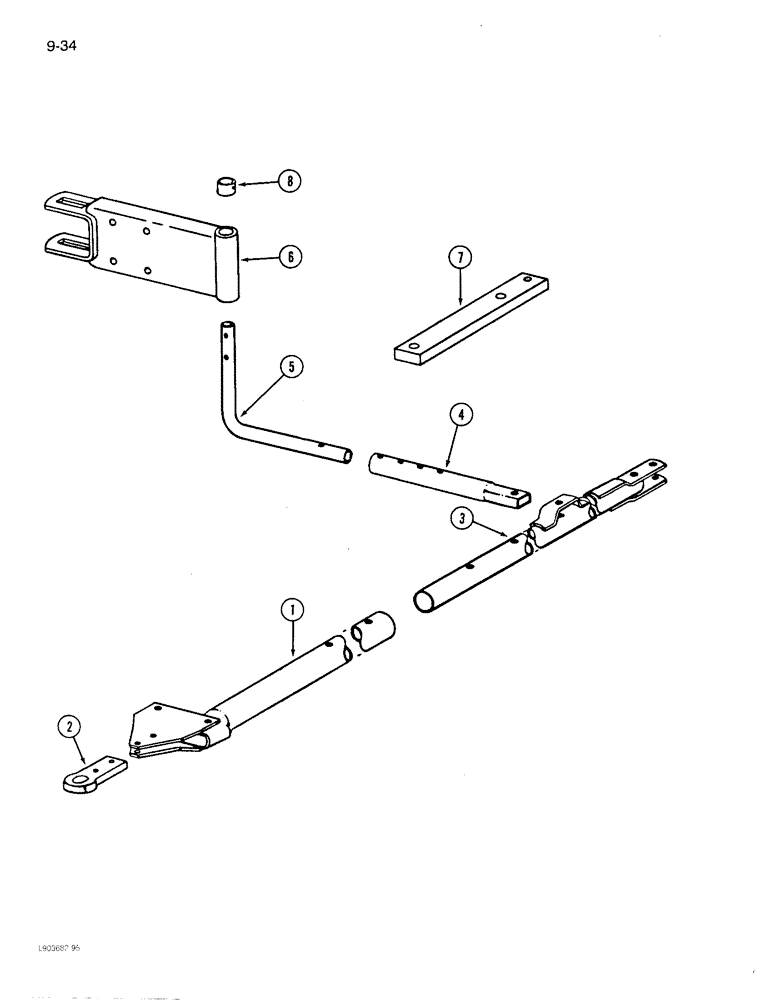

Запчасти Case IH 770 (9-34) - TANDEM HITCH ATTACHMENT

1

493473R1

TUBE ASSEMBLY - hitch

1шт.

323617R1

BOLT (SPREADER),1" x 4", Gr 8

BOLT - hex, 1 NC x 4 inch

1шт.

NLS

NO LONGER SERVICED

- hex, 1 NC x 5 inch

1шт.

19613R1

LOCK NUT,1"-8

NUT - hex, 1 inch NC

2шт.

2

493476R1

SUPPORT

EXTENSION - hitch

1шт.

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- hex, 3/4 NC x 2-1/2 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

129-108

NUT,3/4"-10, G5

2шт.

3

493477R1

TUBE

ASSEMBLY - rear hitch

1шт.

17290R1

SCREW,Hex, 1" - 8 x 6 1/2"

BOLT - hex, 1 NC x 6-1/2 inch

1шт.

323617R1

BOLT (SPREADER),1" x 4", Gr 8

BOLT - hex, 1 NC x 4 inch

1шт.

19613R1

LOCK NUT,1"-8

NUT - hex, 1 inch NC

2шт.

4

493481R1

TUBE

- hitch support

1шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

5

493482R1

SUPPORT TUBE

BAR - tube support

1шт.

6

548268R1

SUPPORT

ASSEMBLY - pivot

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

- hex, 3/4 NC x 3-1/2 inch

4шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, two way, 3/4 inch NC

4шт.

21707R1

BOLT,Hex, 7/8" - 9 x 3 3/4", Gr 2

- special

1шт.

113-808

BOLT,Hex, 7/8" - 9 x 3", Gr 5

- hex, 7/8 NC x 3 inch

1шт.

129-109

NUT,7/8"-9, G5

1шт.

7

548270R1

EXTENSION

- hitch

1шт.

8

493486R1

SPACER

TUBE - vertical pivot collar

1шт.

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
