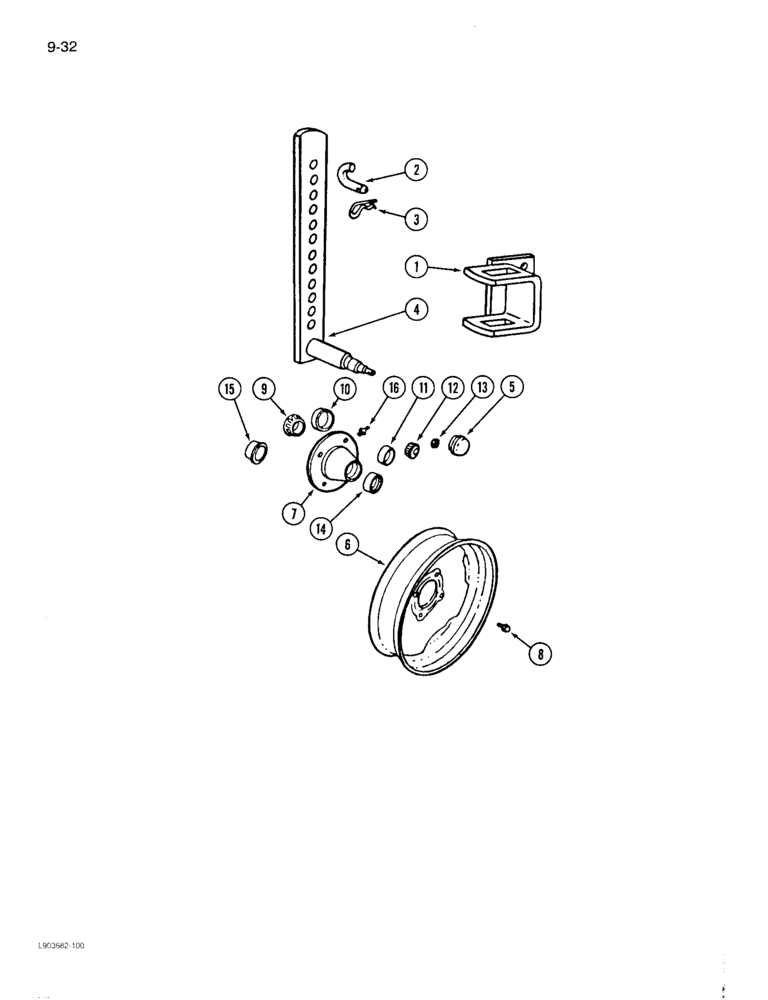

Запчасти Case IH 770 (9-32) - GAUGE WHEEL

1

547947R1

BRACKET

ASSEMBLY - gauge wheel

1шт.

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

2шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, 3/4 inch NC

2шт.

2

520620R1

AXLE PIN

PIN - standard retaining

1шт.

3

1978738C1

HAIR PIN COTTER

1шт.

4

467474R92

SUPPORT ASSY.

STANDARD ASSEMBLY - gauge wheel (Used with four bolt hub)

1шт.

472634R1

WASHER

- special

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

4

96039C91

SUPPORT ASSY.

STANDARD ASSEMBLY - gauge wheel (Used with six bolt hub)

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, 25/32 x 1/4 x 1/8 inch

1шт.

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

1шт.

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

5

651194R1

CAP

- wheel hub (Used with four bolt hub)

1шт.

5

B13280

HUB CAP

CAP - wheel hub (Used with six bolt hub)

1шт.

6

455169R92

WHEEL

- 15 x 4-1/2 KB (1971 through 1977)

1шт.

810769C1

VALVE

- tubeless tire steel

1шт.

6

T25842

RIM

WHEEL - 14 x 5 inch, six bolt mount

1шт.

810768C1

VALVE

- tubeless tire steel

1шт.

7

472220R2

HUB

- wheel, four bolt mount

1шт.

7

810087C2

HUB

- wheel, six bolt mount

1шт.

8

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- hex conical, 1/2 NF x 15/16 inch (Used with four bolt hub)

4шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch (Used with six bolt hub)

6шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, inner

1шт.

10

651817R1

BEARING CUP

CUP - bearing, inner

1шт.

11

651814R1

BEARING CUP

CUP - bearing, outer

1шт.

12

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, outer

1шт.

12

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

13

69442D

NUT

- slotted hex, 3/4 inch NF (Used with four bolt hub)

1шт.

14

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

15

472222R1

SLEEVE

- oil seal

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Used with four bolt hub) 1/4"-28 NPT x .54" lg

1шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (Used with six bolt hub) 1/4"-28 x .56" lg, Self-Tap

1шт.
