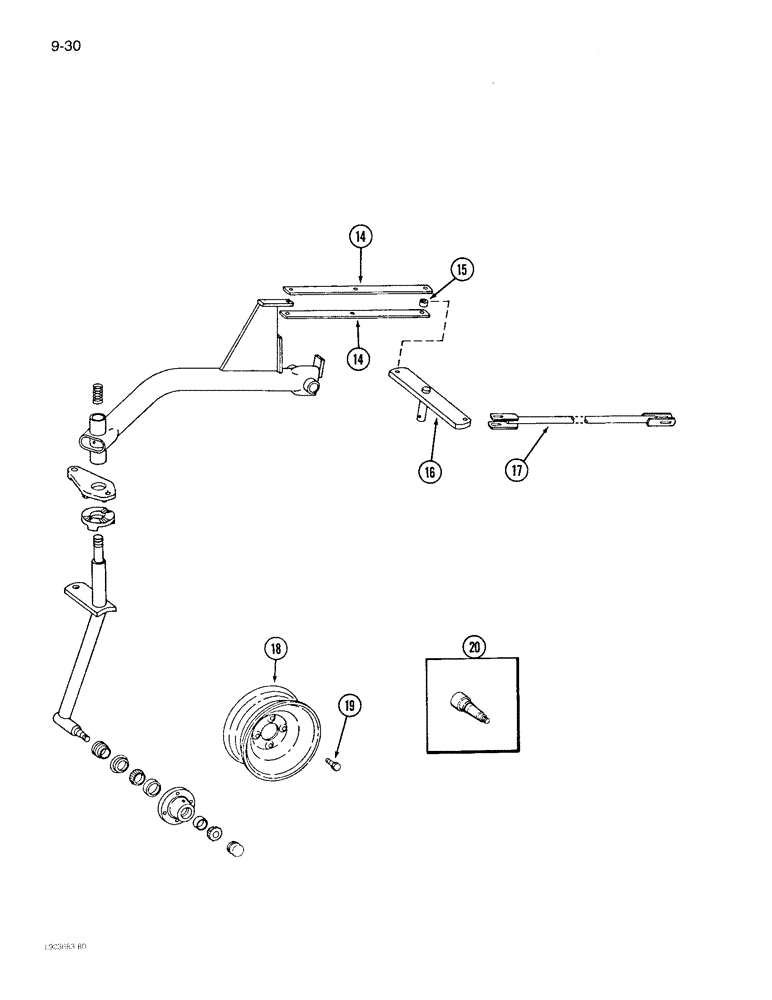

Запчасти Case IH 770 (9-30) - REAR FURROW WHEEL AND LINKAGE, CONTINUED

14

547931R1

LINK

- rear lifting

2шт.

15

605210R1

SPACER,1/2" X-Strng Pipe x 1 1/8"

- 3/8 ID x 1-1/8 inch

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

22096R1

HEADED PIN,3/4" x 2 1/4"

PIN - headed, 3/4 x 2-1/4 inch

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

16

547932R2

ARM

ASSEMBLY - rear lift

1шт.

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

- flat, 1-9/32 x 1-3/4 x 1/16 inch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

17

547934R1

ROD

ASSEMBLY - rear lift (5 furrow)

1шт.

17

547935R1

ROD

ASSEMBLY - rear lift (6 furrow)

1шт.

21673R1

HEADED PIN,3/4" x 2 1/2"

PIN - headed, 3/4 x 2-1/2 inch

2шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

4шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

18

463036R1

WHEEL (STEERING)

DISK AND RIM ASSEMBLY - wheel, 14 x 5KB, four bolt mount

1шт.

18

T25842

RIM

WHEEL - 14 x 5 inch, six bolt mount

1шт.

810768C1

VALVE

- tubeless tire steel

1шт.

19

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

6шт.

20

95961C1

SPINDLE

- axle, welds to axle assembly

1шт.

NSS

NOT SOLD SEPARAT

SPINDLE - axle

1шт.

NSS

NOT SOLD SEPARAT

BUSHING

1шт.
