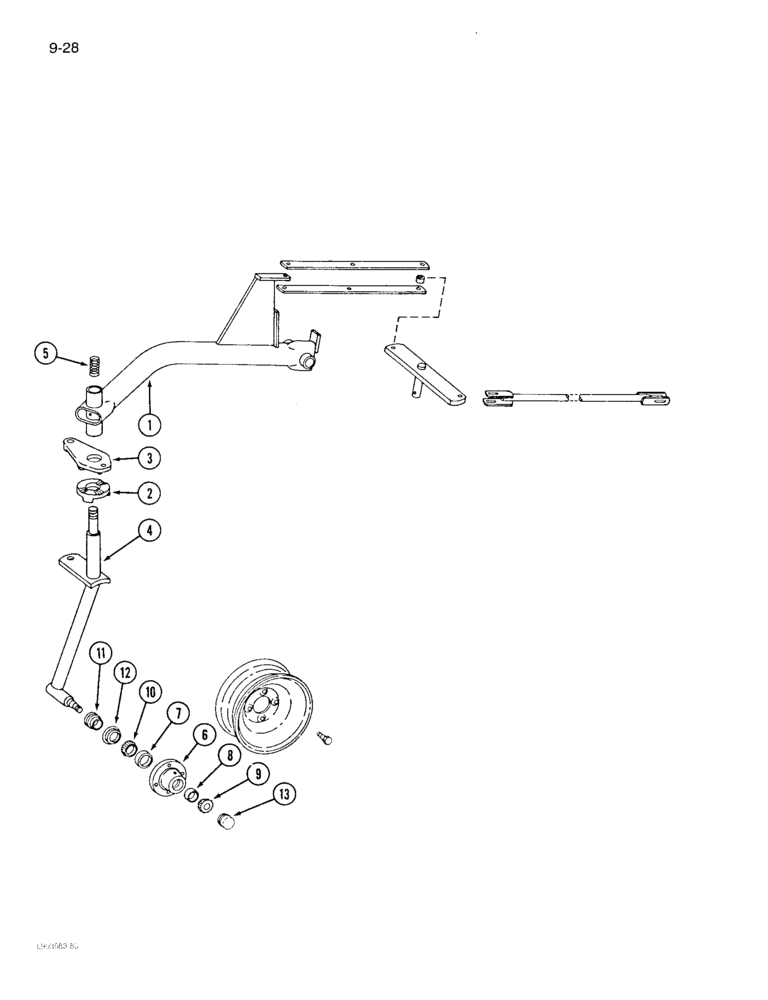

Запчасти Case IH 770 (9-28) - REAR FURROW WHEEL AND LINKAGE

1

547919R2

TUBE ASSEMBLY - rear axle

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

2

491555R1

CAM

- axle, bottom

1шт.

3

491556R1

CAM

- axle, top

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

486762R1

PIN

- lockout

1шт.

1978738C1

HAIR PIN COTTER

1шт.

4

547988R91

AXLE - rear furrow wheel (1971 through 1977)

1шт.

4

1337967C1

CENTER AXLE

AXLE - rear furrow wheel (1978 and after)

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

495-81046

WASHER,25/32" x 2" x .120"

- flat, 25/32 x 2 x 1/8 inch

1шт.

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch

1шт.

5

C13263

SPRING

- rear axle

1шт.

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

1шт.

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

2шт.

6

472220R2

HUB

- wheel, four bolt

1шт.

443804

SCREW - set, slotted headless, 1/4 NF x 1/4 inch

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- hex conical, 1/2 NF x 15/16 inch

4шт.

6

606468R21

HUB

ASSEMBLY - wheel

1шт.

7

651817R1

BEARING CUP

CUP - bearing, outer

1шт.

8

663558R1

BEARING CUP

CUP - inner bearing, 2-57/64 inch OD (Used with six bolt hub)

1шт.

8

651814R1

BEARING CUP

CUP - bearing, inner (Used with four bolt hub)

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

9

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - bearing, inner (Used with four bolt hub)

1шт.

9

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

9

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - inner bearing, 1-5/8 inch ID (Used with six bolt hub)

1шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

1шт.

11

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil (Used with four bolt hub)

1шт.

606556R91

OIL SEAL

SEAL - oil, with wear sleeve (Used with six bolt hub)

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

12

NSS

NOT SOLD SEPARAT

SLEEVE - wear, oil seal

1шт.

12

472222R1

SLEEVE

- wear, oil seal (Used with four bolt hub)

1шт.

13

663906R1

CAP

- wheel hub

1шт.
