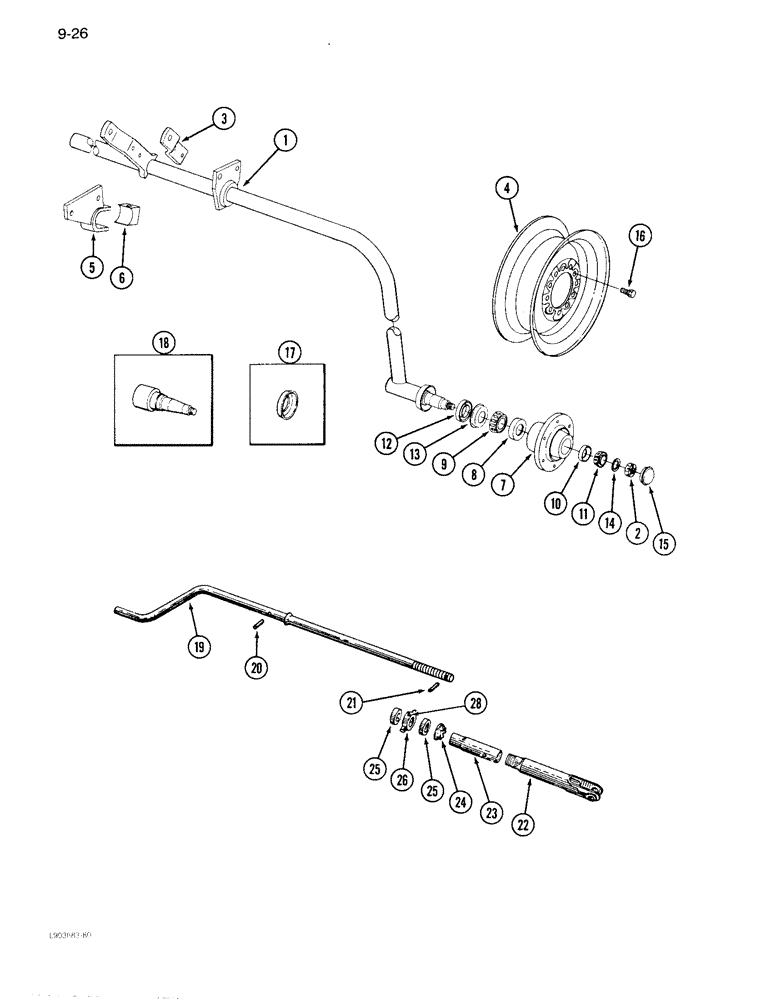

Запчасти Case IH 770 (9-26) - FRONT FURROW WHEEL AND LEVELING SCREW, 1975 AND AFTER

1

1337966C1

CENTER AXLE

AXLE - front furrow wheel

1шт.

2

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

3

518705R1

STRAP

- hammer, front axle

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

4

G57007

WHEEL

- offset, 15 inch (Use 7.60 - 15, 4 ply tire)

1шт.

810769C1

VALVE

- tubeless tire, steel

1шт.

5

547952R1

AXLE

BEARING - front furrow wheel

1шт.

6

482872R1

CAP

BEARING - outer half

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

7

606468R21

HUB

ASSEMBLY - wheel

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

8

663558R1

BEARING CUP

CUP - inner bearing, 2-57/64 inch OD

1шт.

9

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - inner bearing, 1-5/8 inch ID

1шт.

10

651817R1

BEARING CUP

CUP - bearing, outer

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

1шт.

606556R91

OIL SEAL

SEAL - wheel hub oil with wear sleeve

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

14

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch

1шт.

15

663906R1

CAP

- wheel hub

1шт.

16

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

6шт.

17

490909R1

COLLAR

- sand

1шт.

18

95961C1

SPINDLE

- axle, welds to axle assembly

1шт.

NSS

NOT SOLD SEPARAT

SPINDLE - axle

1шт.

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

19

547915R1

ADJUSTMENT SCREW

- depth adjusting

1шт.

20

17069R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

21

21831R1

LOCK PIN,1/4" x 1 1/8", Slotted

Pin, 1/4" x 1 1/8", Slotted

1шт.

22

518613R2

HOUSING

CLEVIS - leveling screw

1шт.

21671R1

PIN,3/4" x 2 1/8"

- headed, 3/4 x 2-1/8 inch

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

23

518779R1

SLEEVE

- leveling screw

1шт.

24

518615R1

COLLAR

- stop

1шт.

25

80755R91

THRUST BEARING,30.32mm ID x 55.82mm OD x 16mm W

BEARING - thrust

2шт.

26

518617R1

TRUNNION

- leveling screw

1шт.

27

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING - lube, 3/16 inch

1шт.
