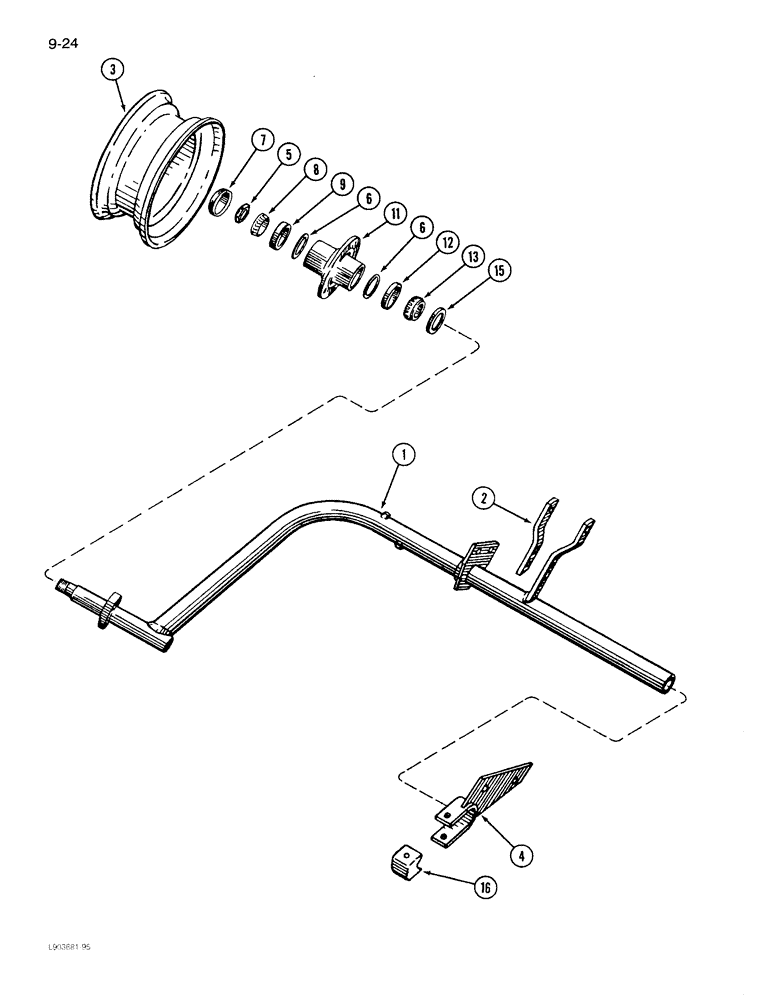

Запчасти Case IH 770 (9-24) - FRONT FURROW WHEEL, PRIOR TO 1975

1

101099C91

AXLE

ASSEMBLY - front furrow

1шт.

519250R1

SLOTTED NUT

- slotted hex, 1-1/4 inch NF

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

2

518705R1

STRAP

- hammer, front axle

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

3

481345R91

RIM

WHEEL - 14 inch

1шт.

810768C1

VALVE

- tubeless tire steel

1шт.

3

614424R91

WHEEL ASSY.

WHEEL - 15 inch

1шт.

810769C1

VALVE

- tubeless tire, steel

1шт.

655042R1

BOLT

BOLT - hex conical, 1/2 NF x 1-1/2 inch

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

225857

NUT

- hex, 1/2 inch NF

6шт.

4

547952R1

AXLE

BEARING - front furrow wheel

1шт.

5

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

6

518818R1

RING

- backing

2шт.

7

453771R1

PLUG

CAP - hub

1шт.

8

59756H

CONE

- bearing, outer

1шт.

9

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

CUP - bearing, outer

1шт.

11

518782R92

HUB

- wheel, offset flange type

1шт.

12

518819R1

BEARING CUP,69.01mm OD x 15.08mm W

CUP - bearing, inner

1шт.

13

455256R91

ROLLER BEARING,1.5" ID x 2.717" OD x 1.0313"

CONE - bearing, inner

1шт.

15

518821R91

OIL SEAL

- oil

1шт.

16

482872R1

CAP

BEARING - outer half

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

271370

BARREL

BOLT - hex, 5/8 NC x 3-3/4 inch

1шт.

101100C92

HUB

KIT - spindle conversion (See page 9-23)

1шт.
