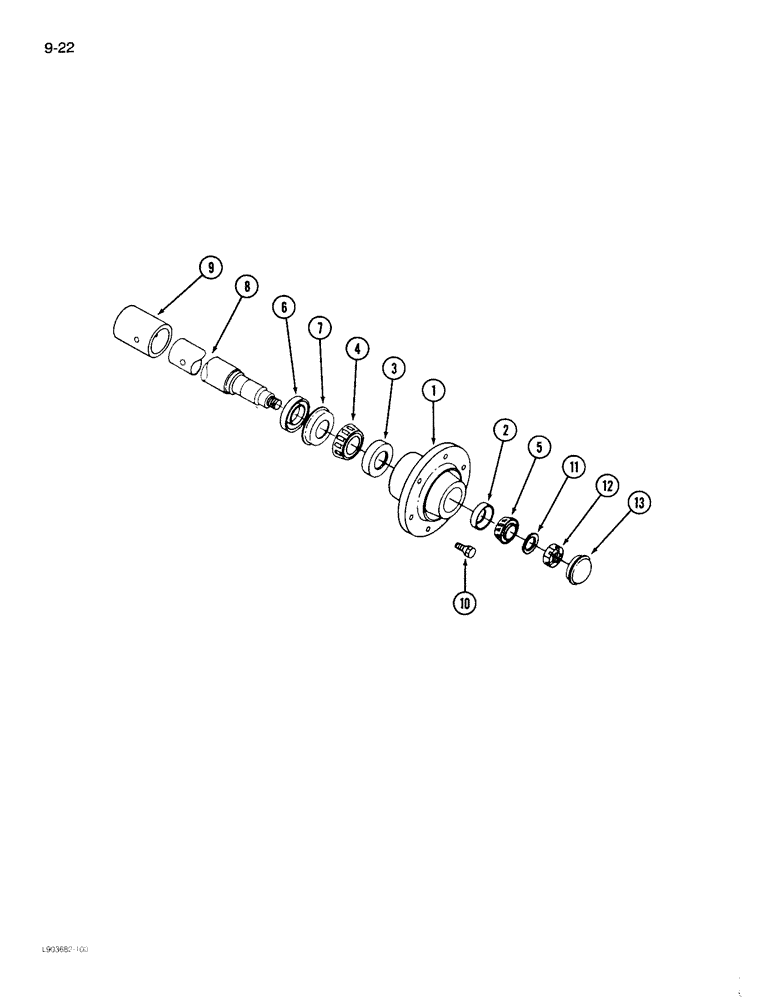

Запчасти Case IH 770 (9-22) - HUB AND SPINDLE CONVERSION KIT, PRIOR TO 1975

101100C92

HUB

AND SPINDLE ASSEMBLY

1шт.

1

465496R11

HUB

ASSEMBLY - with bearings (Six bolt)

1шт.

2

651817R1

BEARING CUP

CUP - bearing, outer

1шт.

3

663558R1

BEARING CUP

CUP - inner bearing, 2-57/64 inch OD

1шт.

4

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - inner bearing, 1-5/8 inch ID

1шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - outer bearing

1шт.

6

654674R91

OIL SEAL

- oil

1шт.

7

654675R1

RING

SLEEVE - wear

1шт.

8

131626C1

STEERING KNUCKLE

SPINDLE - wheel

1шт.

9

58664C2

TUBE,2.03" ID, 3" OD, 127 mm Length

- spindle mounting

1шт.

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

10

655042R1

BOLT

BOLT - hex conical, 1/2 NF x 1-1/8 inch

6шт.

129-125

NUT,1/2"-20, G5

6шт.

11

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- flat, hardened

1шт.

12

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

13

663906R1

CAP

- wheel hub

1шт.
