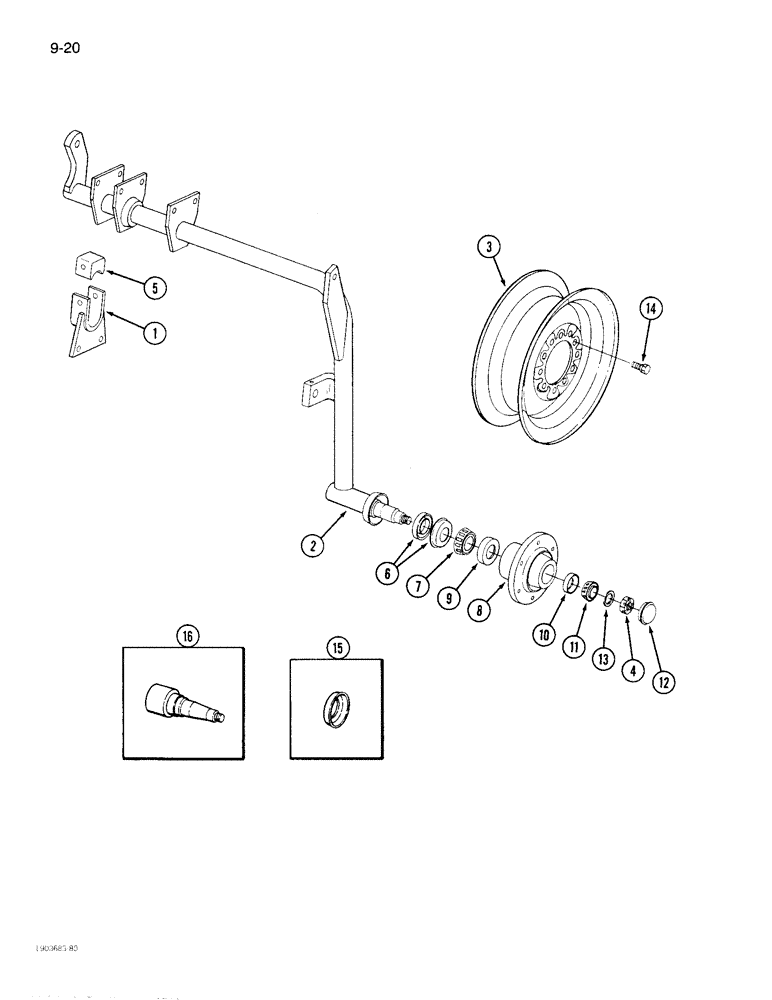

Запчасти Case IH 770 (9-20) - LAND WHEEL AND AXLE, AFTER 1975

1

547913R1

BEARING ASSY

ASSEMBLY - land axle

1шт.

2

1337964C1

CENTER AXLE

AXLE ASSEMBLY - land, 5 furrow (Includes items 4 and 15)

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

2

1337965C1

CENTER AXLE

AXLE ASSEMBLY - land, 6 furrow (Includes items 4 and 15)

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

3

G57007

WHEEL

- one piece, offset, 15 inch

1шт.

810769C1

VALVE

- tubeless tire steel

1шт.

4

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

5

482872R1

CAP

BEARING - outer half

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

428-1068

BOLT - hex, 5/8 NF x 3 inch, Grade 8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

425-1010

NUT,5/8"-11, G5

1шт.

225861

NUT,5/8"-18, G8

2шт.

6

606556R91

OIL SEAL

SEAL - oil, with wear sleeve

1шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - inner bearing, 1-5/8 inch ID

1шт.

8

606468R21

HUB

ASSEMBLY - wheel

1шт.

9

663558R1

BEARING CUP

CUP - inner bearing, 2-57/64 inch OD

1шт.

10

651817R1

BEARING CUP

CUP - bearing, outer

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing, outer

1шт.

12

663906R1

CAP

- wheel hub

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch

1шт.

13

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch(replaces 495-81060)

1шт.

Ref #13 - Replaced by 469873R1 Hardened Washer 06/28/96

1шт.

14

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

6шт.

15

490909R1

COLLAR

- sand

1шт.

16

95961C1

SPINDLE

- axle, welds to axle assembly

1шт.

NSS

NOT SOLD SEPARAT

SPINDLE - axle

1шт.

NSS

NOT SOLD SEPARAT

BUSHING

1шт.
