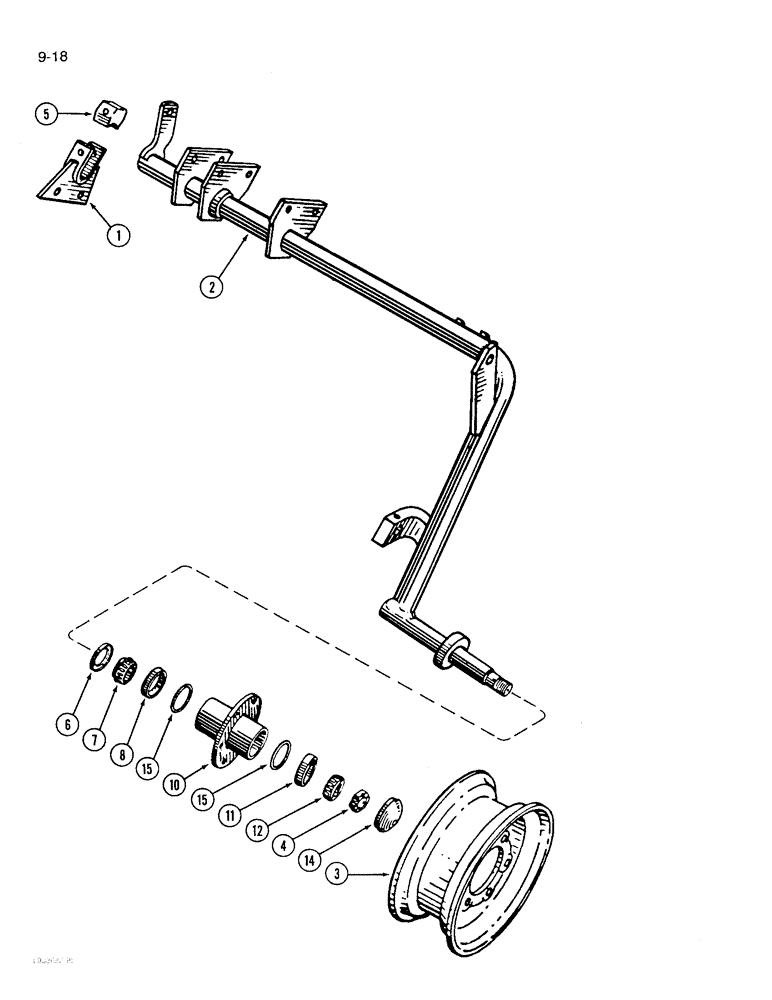

Запчасти Case IH 770 (9-18) - LAND WHEEL AND AXLE, PRIOR TO 1975

1

547913R1

BEARING ASSY

ASSEMBLY - land axle

1шт.

2

101095C91

AXLE

ASSEMBLY - land, 5 furrow (Includes item 4)

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

2

101097C91

AXLE

ASSEMBLY - land, 6 furrow (Includes item 4)

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

3

481345R91

RIM

WHEEL - 14 inch

1шт.

3

614424R91

WHEEL ASSY.

WHEEL - 15 inch

1шт.

655042R1

BOLT

BOLT - hex conical, 1/2 NF x 1-1/8 inch

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

225857

NUT

- hex, 1/2 inch NF, Grade 8

6шт.

4

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

5

482872R1

CAP

BEARING - outer half

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

425-1010

NUT,5/8"-11, G5

3шт.

6

518821R91

OIL SEAL

- oil

1шт.

7

455256R91

ROLLER BEARING,1.5" ID x 2.717" OD x 1.0313"

CONE - bearing, inner

1шт.

8

518819R1

BEARING CUP,69.01mm OD x 15.08mm W

CUP - bearing, outer

1шт.

10

518782R92

HUB

- wheel, offset flange type

1шт.

11

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

CUP - bearing, outer

1шт.

12

59756H

CONE

- bearing, outer

1шт.

14

453771R1

PLUG

CAP - wheel hub

1шт.

15

518818R1

RING

- backing

2шт.

101100C92

HUB

KIT - spindle conversion (See page 9-23)

1шт.
