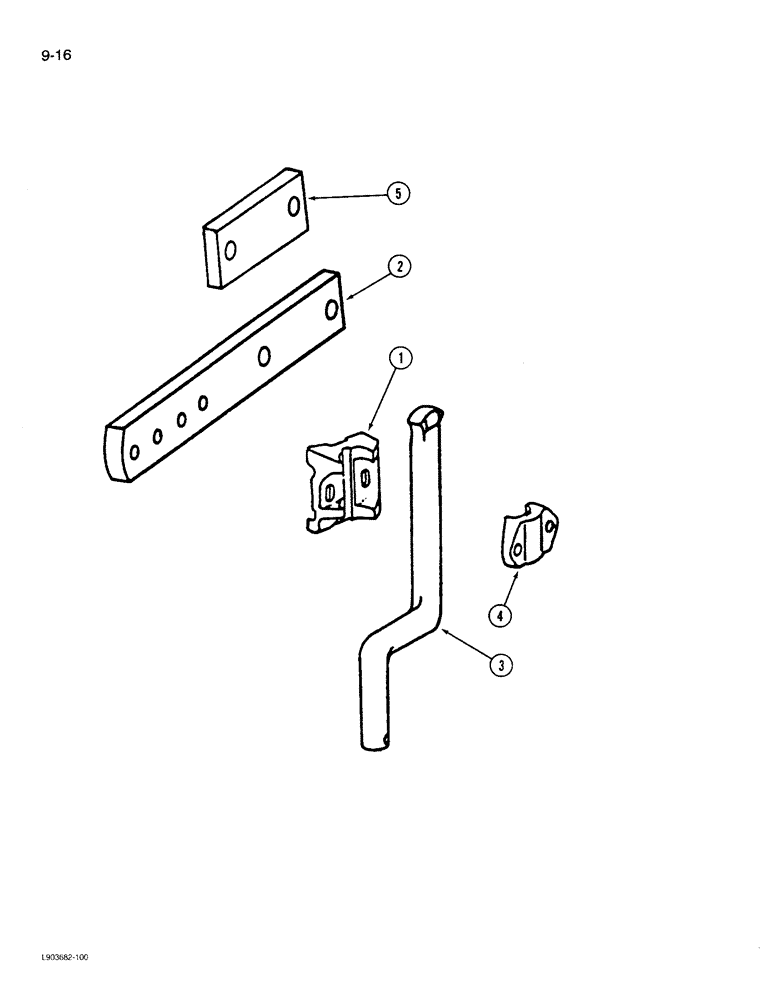

Запчасти Case IH 770 (9-16) - COLTER SHANKS AND CLAMPS

1

524456R3

CLAMP

- rear colter

1шт.

2

541164R1

SUPPORT

BAR - rear colter

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex, 3/4 NC x 3-1/4 inch

1шт.

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

425-1012

NUT,3/4"-10, G5

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

3

488792R1

SHANK

- colter

1шт.

432-2036

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

1шт.

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

4

524492R1

CLAMP

CAP - front colter clamp

1шт.

5

482778R1

BAR

- spacer

1шт.
