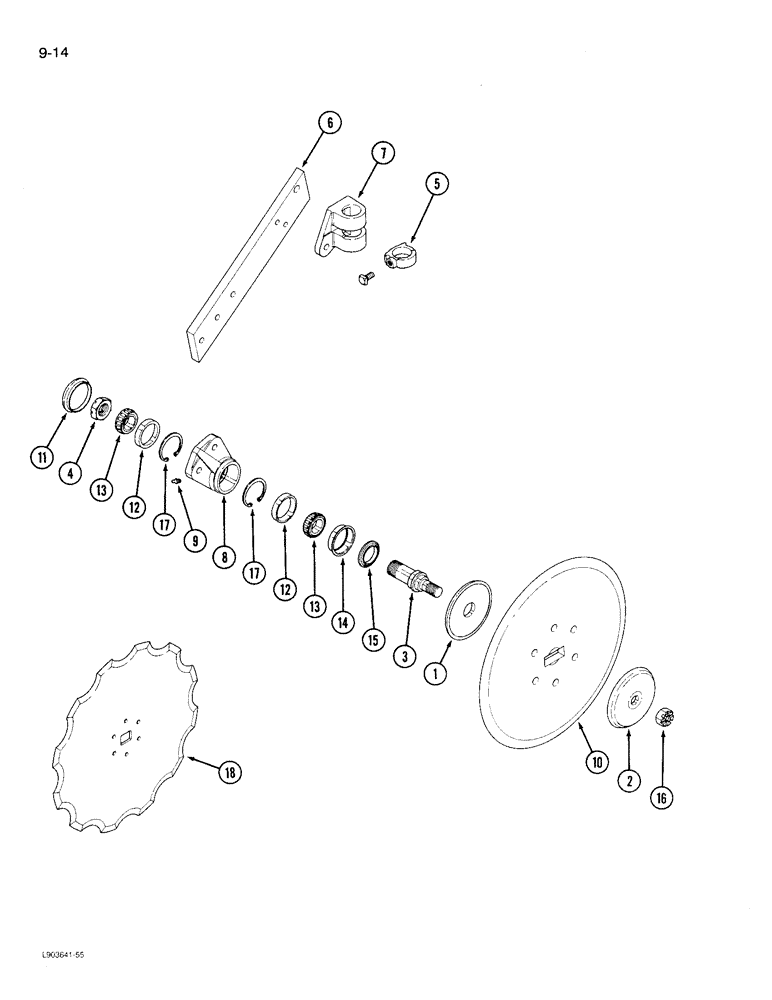

Запчасти Case IH 770 (9-14) - ROLLING COLTER, SHEAR BOLT TYPE

1

523020R3

SUPPORT ASSY.

SUPPORT - inside blade, Serial Range: (Prior-1974)

1шт.

1

59158C1

SUPPORT ASSY.

SUPPORT - inside blade (1974 and after)

1шт.

2

523021R2

SUPPORT ASSY.

SUPPORT - outside blade, Serial Range: (Prior-1974)

1шт.

2

59159C1

SUPPORT ASSY.

SUPPORT - outside blade (After 1974)

1шт.

3

543998R1

SPINDLE

- colter, Serial Range: (Prior-1974)

1шт.

3

541480R1

SPINDLE

- colter (1974 and after)

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

4

519250R1

SLOTTED NUT

- hex slotted, 1-1/4 inch NF

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

5

523345R21

COLLAR CLAMP

COLLAR ASSEMBLY - stop

1шт.

485-15020

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

SCREW - square head cup point, set, 1/2 NC x 1-1/4 inch

1шт.

6

131517C92

LEVER

ARM ASSEMBLY - colter

1шт.

M906

HEADED PIN,7/16" x 1 1/8"

PIN - clevis, 7/16 x 1-1/4 inch

1шт.

32-1216

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

7

462273R3

SUPPORT ASSY.

BEARING - colter arm, right

1шт.

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

1шт.

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

8

523019R1

HOUSING

- bearing, right, Serial Range: (Prior-1974)

1шт.

8

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING - bearing, right (1974 and After)

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

10

523025R2

HALF BLADE

DISC - colter, 17 inch plain

1шт.

10

469191R3

BLADE

DISC - colter, 17 inch rippled edge

1шт.

10

474251R1

DISC

- colter, 20 inch plain

1шт.

10

474252R2

COULTER

RIPPLED 20"

1шт.

11

518842R1

CAP

- wheel hub

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

12

651817R1

BEARING CUP

CUP - bearing

2шт.

Part of colter spindle assembly P/N 549827R92

1шт.

13

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - bearing

2шт.

Part of colter spindle assembly P/N 549827R92

1шт.

14

472222R1

SLEEVE

- oil seal

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

15

523027R91

OIL SEAL

- oil, Serial Range: (Prior-1974)

1шт.

15

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil (1974 and After)

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

16

429-1314

NUT,7/8"-14, G8

NUT - slotted hex, 7/8 inch NF, Grade 8 (1974 and After)

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

16

21626R1

LOCK NUT,3/4"-16

NUT - hex lock, 3/4 inch NF (Prior to 1974)

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

17

216389R1

SNAP RING,2.312", Int, #231

Ring, Snap, , brg, prior to 1974) 2.312", Int, #231

2шт.

18

523026R2

DISC

- notched colter, 17 inch

1шт.

18

471166R1

COULTER

DISC - heavy duty notched colter, 20 inch

1шт.

549827R92

HUB CAP

SPINDLE ASSEMBLY - colter, Includes: Ref. 3, 4, 8, 9, 11, 12, 13, 14, 15 and 16

1шт.
