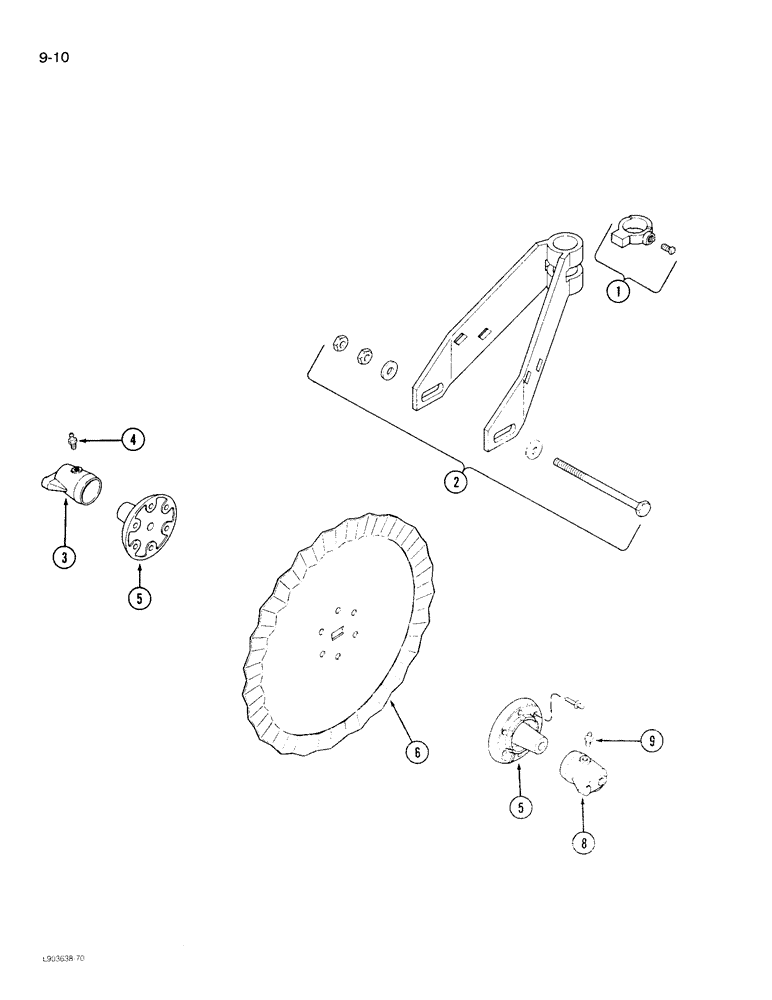

Запчасти Case IH 770 (9-10) - ROLLING COLTER, YOKE TYPE

1

519345R31

COLLAR

COLLER ASSEMBLY - stop

1шт.

485-15016

SET SCREW,Sq Hd, 1/2"-13 x 1"

SCREW - set, 1/2 NC x 1 inch

1шт.

2

522252R93

YOKE

ARM ASSEMBLY - colter

1шт.

13-8124

BOLT,Hex, 1/2" - 13 x 7-3/4", Gr 5

- hex, 1/2 NC x 7-3/4 inch

1шт.

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

3

521157R11

BUSHING

- left

1шт.

4

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING - grease, 5/16 inch straight

1шт.

5

468727R1

HUB

- disc

2шт.

45-528

RIVET,But Hd, 5/16" x 1 3/4"

- round head, 5/16 x 1-3/4 inch

6шт.

6

469191R3

BLADE

- colter, rippled edge, 17 inch

1шт.

8

521158R11

BUSHING

- right

1шт.

9

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING - grease, 5/16 inch straight

1шт.
