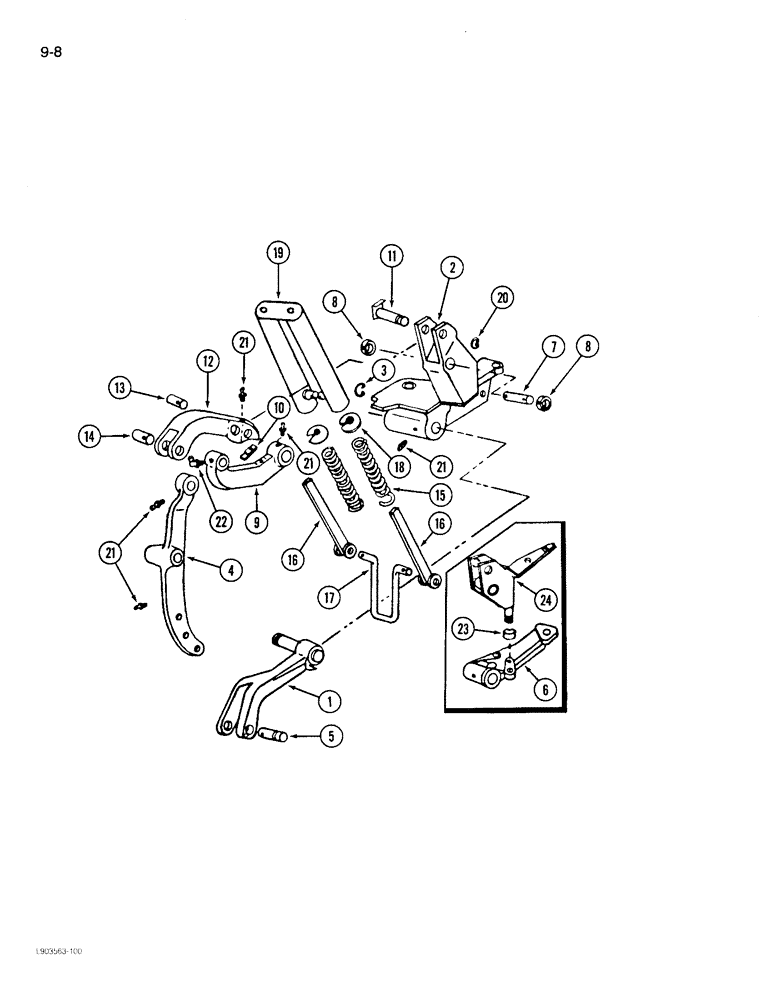

Запчасти Case IH 770 (9-08) - AUTOMATIC TRIP BEAM

1

55366C3

BEAM

- lower link

1шт.

2

112752C3

BRACKET

- pivot, auto trip (1976 and after)

1шт.

3

103-16200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

4

60099C3

BEAM

- recovery trip

1шт.

5

485526R1

SHAFT

- pivot bracket

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

2шт.

471323R1

LINCH PIN

PIN - pivot lock

1шт.

519250R1

SLOTTED NUT

- slotted hex, 1-1/4 inch NF

1шт.

432-836

COTTER PIN,1/8" x 2 1/4"

1/8" x 2 1/4"

1шт.

6

485527R1

SUPPORT

- upper mounting (1967 through 1975)

1шт.

7

485534R1

PIN

- upper mounting roller

1шт.

8

491934R1

SPACER

- stop roller

2шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 3/64 inch

2шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

9

485537R3

LATCH ASSY.

LINK - upper front

1шт.

10

489152R1

STRAP

ASSEMBLY - load adjusting

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, Grade 8

1шт.

11

485539R1

PIN

- upper front link

1шт.

12

485542R5

LEVER

LINK - upper rear, left

1шт.

13

485543R1

PIN

- upper link center

1шт.

21647R1

LOCK PIN,7/32" x 2 1/2", Slotted

Pin, 7/32" x 2 1/2", Slotted

1шт.

14

485524R1

PIN

- plow beam

1шт.

21650R1

LOCK PIN,5/16" x 2 1/2", Slotted

Pin, 5/16" x 2 1/2", Slotted

1шт.

21646R1

LOCK PIN,3/16" x 2 1/2", Slotted

Pin, 3/16" x 2 1/2", Slotted

1шт.

15

485557R1

SPRING

- extension

2шт.

16

485545R1

BAR

- spring insert

1шт.

17

485544Rl

HOLDER - spring mounting hook

1шт.

486365R1

WASHER

- mounting hook

2шт.

460309R1

COTTER PIN

PIN - cotter, hair

2шт.

18

485548R2

WASHER

ADJUSTER - spring

2шт.

485555R1

BOLT,Hex, 1/2" - 13 x 4 1/4"

- hex, 1/2 NC x 4-1/4 full thread

1шт.

495-81169

WASHER,17/32" x 2 1/2" x .120"

- flat, 17/32 x 2-1/2 x 7/64 inch

1шт.

25710R1

WASHER

- hardened flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

19

485551R3

TUBE

ASSEMBLY - spring

1шт.

20

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

22

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

23

485535R1

WASHER

WASHER - upper mounting horseshoe (1967 through 1975)

2шт.

24

485556R1

BRACKET

- pivot, auto trip (1967 through 1975)

1шт.
