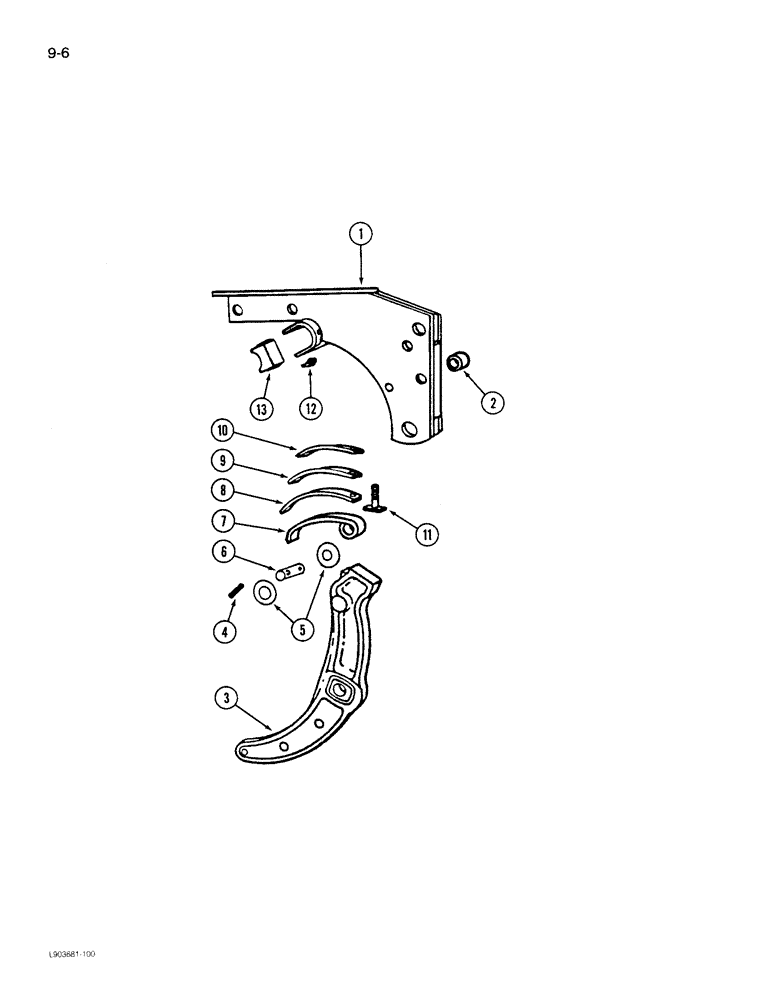

Запчасти Case IH 770 (9-06) - SPRING TRIP BEAM

1

55655C1

SUPPORT - beam

1шт.

2

522432R2

SPACER

- beam

1шт.

424-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 2

- hex, 5/8 NC x 3-1/4 inch, Grade 2

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

3

465800R2

BEAM

- plow

1шт.

465799R1

BOLT (SPREADER),Hex, 1" x 3 1/2", Drilled

BOLT - special

1шт.

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

1шт.

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

1шт.

4

21649R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

5

522473R1

WASHER

- flat, 49/64 x 1-3/4 x 1/8 inch

2шт.

6

465801R1

ROLLER

- trip spring

1шт.

7

465868R1

SPRING

- trip

1шт.

21666R1

HEADED PIN,3/4" x 2 15/16"

PIN - clevis, 3/4 x 2-15/16 inch

1шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

8

524454R1

VALVE SPRING

SPRING - helper, lower

1шт.

9

524453R1

VALVE SPRING

SPRING - helper, middle

1шт.

10

524452R1

VALVE SPRING

SPRING - helper, upper

1шт.

11

484522R91

ADJUSTMENT SCREW

- adjusting

1шт.

124934

HOSE

- hex jam, 1/2 inch NF

1шт.

129-125

NUT,1/2"-20, G5

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

13

482872R1

CAP

BEARING - outer half

1шт.

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.
