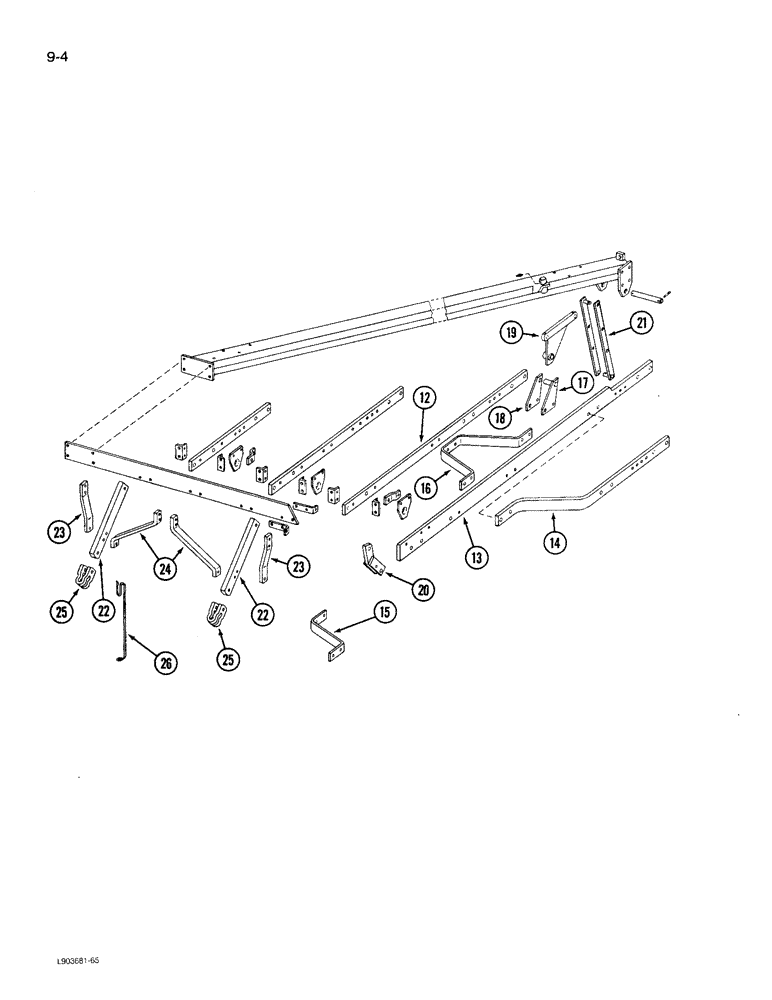

Запчасти Case IH 770 (9-04) - MAIN FRAME, CONTINUED

12

547884R1

RAIL

- fourth (5 furrow)

1шт.

12

547885R1

RAIL

- fourth (6 furrow)

1шт.

13

547886R1

RAIL

- fifth (6 furrow)

1шт.

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.

14

488339R1

SUPPORT

- rail extension

1шт.

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

413-1258

BOLT - hex, 3/4 NC x 3 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

129-108

NUT,3/4"-10, G5

4шт.

15

547887R1

BRACE

- frame (5 furrow)

1шт.

16

547888R1

BRACE

- frame (6 furrow)

1шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

17

547889R1

BASE

MOUNTING ASSEMBLY - bellcrank

1шт.

18

547890R1

PLATE

- mounting (6 furrow)

1шт.

18

547892R1

PLATE

- mounting (5 furrow)

1шт.

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.

19

547893R1

CRANK

BELLCRANK ASSEMBLY - front lift

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

20

547897R1

ANCHOR

- cylinder

1шт.

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, two way, 3/4 inch NC

1шт.

1256

HEADED PIN,5/8" x 2 5/8"

PIN - clevis, 5/8 x 2-5/8 inch

1шт.

1978738C1

HAIR PIN COTTER

1шт.

21

547900R1

LINK

ASSEMBLY - pitman

2шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 3/32"

1шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 3/64 inch

6шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

22

526549R1

STRAP

- hitch

2шт.

23

547903R1

BRACE

- outside hitch

2шт.

24

547904R1

STIRRUP

BRACE - inside hitch

2шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

3шт.

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

5шт.

129-108

NUT,3/4"-10, G5

5шт.

25

518683R1

CLEVIS

- hitch strap

2шт.

21707R1

BOLT,Hex, 7/8" - 9 x 3 3/4", Gr 2

- special

2шт.

129-109

NUT,7/8"-9, G5

2шт.

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

26

651793R2

SUPPORT

ROD - hose support

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

1шт.
