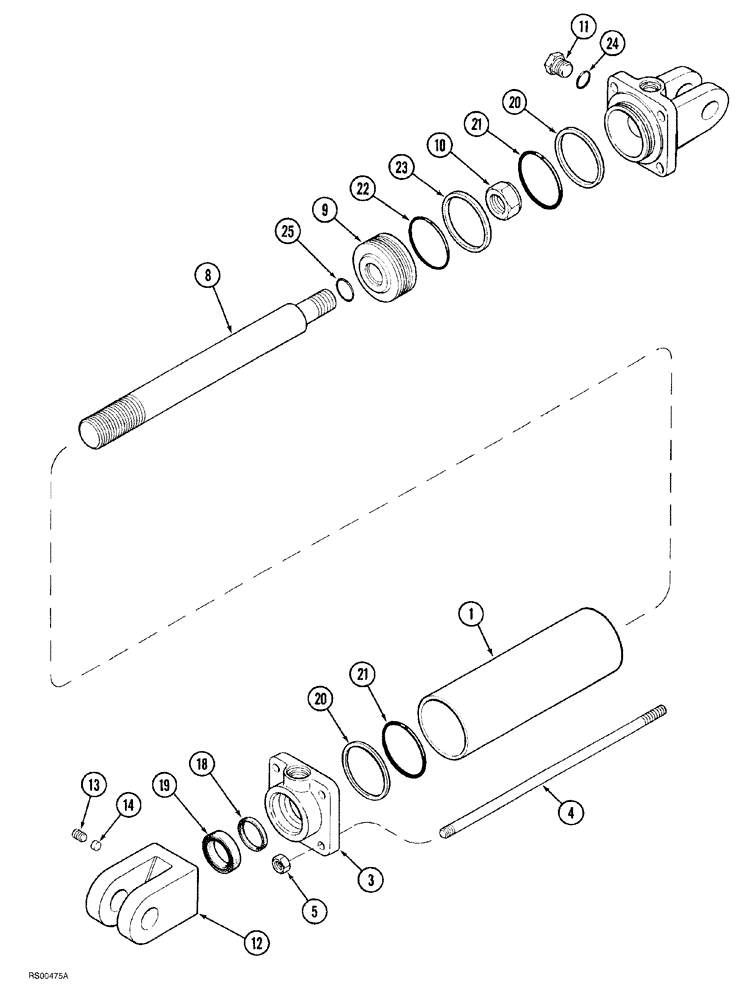

Запчасти Case IH 7500 (08-07) - HYDRAULIC CYLINDER, 3 INCH BORE X 8 INCH STROKE (08) - HYDRAULICS

87427819

CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

ASSEMBLY, hydraulic, 3 (76 mm) ID x 8 inch (203 mm) stroke

1шт.

1

NSS

NOT SOLD SEPARAT

BODY cylinder (Order cylinder assembly)

1шт.

2

1272761C1

HEAD

Cylinder, rear, cylinder

1шт.

3

1272762C1

HEAD

cylinder, front, cylinder

1шт.

4

1272747C1

TIE-ROD,7/16" - 14 x 12.25mm

7/16 inch NC, cylinder

4шт.

5

425-107

NUT,7/16"-14, G5

4шт.

8

145231C1

PISTON ROD

1шт.

9

145225C2

PISTON

Cylinder

1шт.

10

232-46314

LOCK NUT,7/8"-14, GC

1шт.

11

214389

PLUG,3/4" - 16 ORB

1шт.

12

145233C1

CLEVIS,1/4" - 12

Rod end

1шт.

13

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

Set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

14

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert

1шт.

79976C2

SEAL KIT

KIT (Inc; REF 18 - 23 and 25)

1шт.

18

NSS

NOT SOLD SEPARAT

WIPER rod

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL rod

1шт.

20

NSS

NOT SOLD SEPARAT

RING backup

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING, 2-3/4 ID x 1/8 inch

2шт.

22

NSS

NOT SOLD SEPARAT

O-RING, 2-9/16 ID x 3/32 inch

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

Headed, 1 x 3-1/4 inch

2шт.

1970957C1

SPRING

PIN cotter, hair, 3/16 inch

2шт.
