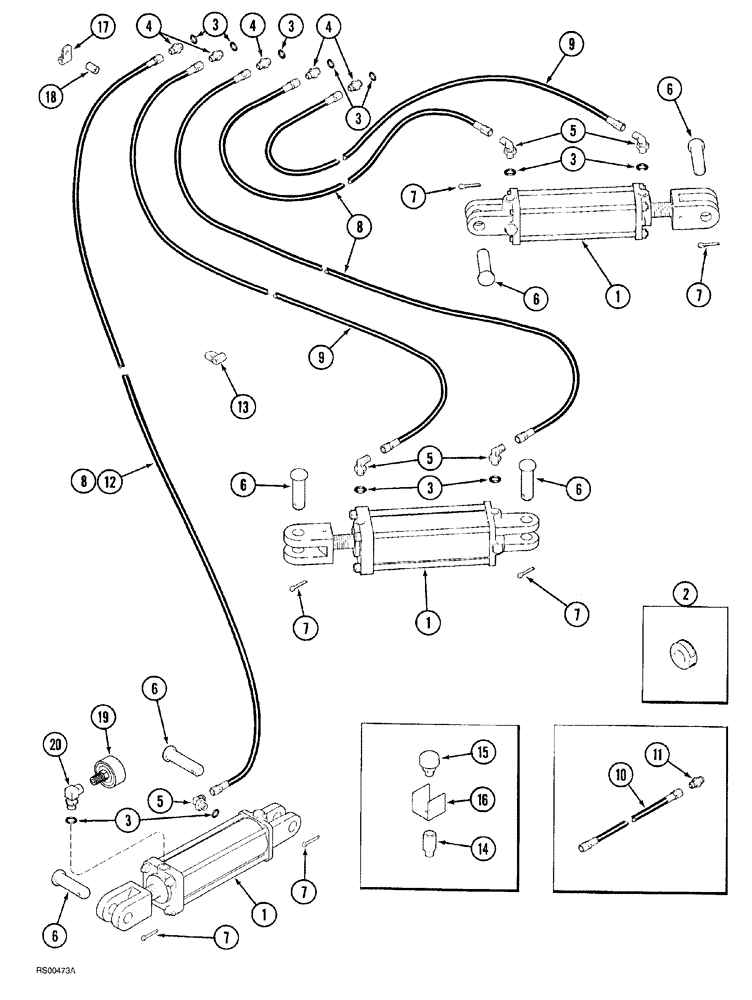

Запчасти Case IH 7500 (08-05) - HYDRAULIC SYSTEM, ON THE LAND PLOWS, PRIOR TO P.I.N. JAG0303580 (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY, hydraulic, 3 x 8 inch (See Fig. 08-07)

3шт.

2

7737869

COLLAR

KIT stroke control collar

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

11шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Straight, 9/16-18 flare x 3/4-16 inch O-ring boss

5шт.

5

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

5шт.

6

427-16325

CLEVIS PIN,25.4mm OD x 82.55mm L

clevis, 1 x 3-1/4 inch, hardened

6шт.

7

432-1620

COTTER PIN,1/4" x 1 1/4"

6шт.

8

1284257C1

HYDRAULIC HOSE,9.53mm ID x 5335mm L

5334 mm (210 inch) long (used on 5 furrow plows)

3шт.

9

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

5715 mm (225 inch) long

2шт.

10

129672C2

HYDRAULIC HOSE

991 mm (39 inch) long, used on plows equipped with frame extension

1шт.

11

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Straight, 9/16-18 inch flare, used on plows equipped with frame extension

1шт.

12

129782C2

HYDRAULIC HOSE

4191 mm (165 inch) long (used on 5 furrow plows)

1шт.

13

299615C1

CLAMP

P-type, 5/8 inch ID

1шт.

14

218-5093

ADAPTER,#8 MALE ORB (ORING) TO # 6 FEMALE NPT (PIPE)

Straight, 3/4-16 O-ring boss x 3/8 inch female PT

1шт.

15

65970C2

BREATHER ASSY.

FILTER, 3/8 inch PT

1шт.

16

1995579C1

GUARD

breather

1шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type

1шт.

18

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

3/8 ID x 1 inch

1шт.

19

S240879

BREATHER

FILTER

1шт.

20

218-5460

FITTING

90 Degree, 3/4-16 adj. O-ring x 1/2 inch female PT

1шт.
