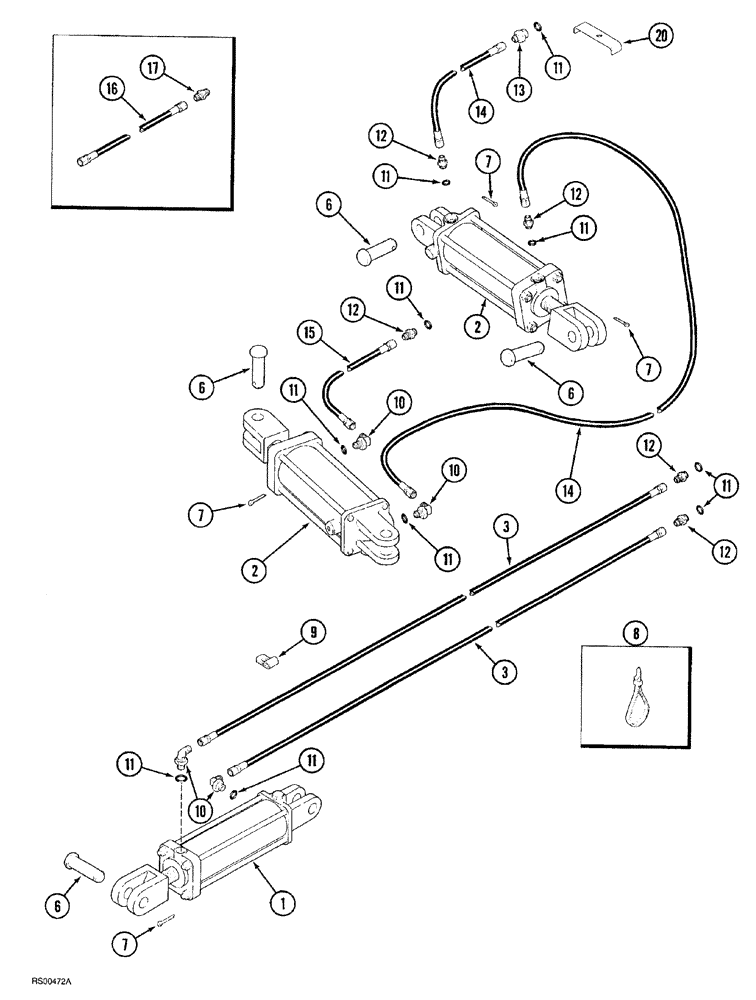

Запчасти Case IH 7500 (08-04) - HYDRAULIC SYSTEM, IN THE FURROW PLOWS WITH HYDRAULIC ADJUSTABLE HITCH, P.I.N. JAG0303580 AND AFTER (08) - HYDRAULICS

1

87427819

CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

ASSEMBLY, hydraulic, 3 x 8 inch (See Fig. 08-07)

1шт.

2

87427820

CYLINDER

ASSEMBLY, hydraulic, phasing, 3-1/2 x 8 inch (See Fig. 08-08)

2шт.

3

133933C2

HYDRAULIC HOSE

3/8 x 6604mm (260 inch) long (4 furrow)

2шт.

3

1284266C1

HYDRAULIC HOSE

3/8 x 7747mm (305 inch) long (5 furrow)

2шт.

3

1284268C1

HYDRAULIC HOSE

3/8 x 8636mm (340 inch) long (6 furrow)

2шт.

6

810751C1

PIN

1 x 3-1/2 inch

4шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

8

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

9

299615C1

CLAMP

P-type, 5/8 inch ID

1шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

4шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

10шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Straight, 3/8 37FL x 1/2 inch

5шт.

236878A1

GRIP

Hydra-Grip, Red

2шт.

236880A1

GRIP

Hydra-Grip, Gray

2шт.

13

92424C1

RESTRICTOR

ADAPTER one way orifice, one way

1шт.

14

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

1397 mm (55 inch) long

2шт.

15

1284269C1

HYDRAULIC HOSE

9144 mm (360 inch) long

1шт.

16

129672C2

HYDRAULIC HOSE

991 mm (39 inch) long

1шт.

Used on plows equipped with frame extension

1шт.

17

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR straight, 9/16-18 inch flare

1шт.

Used on plows equipped with frame extension

1шт.

20

129888C2

CLAMP

hose

1шт.

87431719

SEAL KIT

O-ring and Seal Service

1шт.

7737869

COLLAR

Cylinder Stop (not shown)

1шт.
