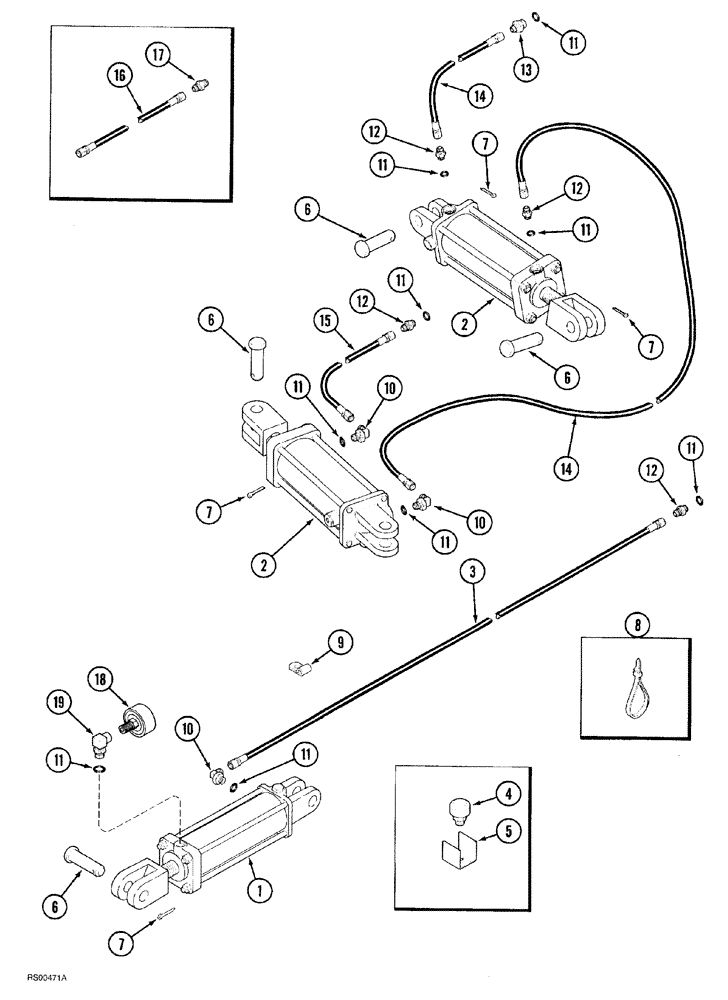

Запчасти Case IH 7500 (08-03) - HYDRAULIC SYSTEM, IN THE FURROW PLOWS WITH HYDRAULIC ADJUSTABLE HITCH, PRIOR TO P.I.N. JAG0303580 (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY, hydraulic, 3 x 8 inch (See Fig. 08-07)

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY, hydraulic, phasing, 3-1/2 x 8 inch (See Fig. 08-08)

2шт.

3

1284330C1

HOSE

6096 mm (240 inch) long (4 furrow)

1шт.

3

129673C2

HOSE

7112 mm (280 inch) long (5 furrow)

1шт.

3

1284290C1

HYDRAULIC HOSE

8130 mm (320 inch) long (6 furrow)

1шт.

4

65970C2

BREATHER ASSY.

FILTER, 3/8 inch PT, plastic

1шт.

5

1995579C1

GUARD

breather (Used with 65970C2 filter)

1шт.

6

810751C1

PIN

1 x 3-1/2 inch

4шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

8

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

9

299615C1

CLAMP

P-type, 5/8 inch ID

1шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

3шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

9шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Straight, 9/16-18 flare x 3/4-16 inch O-ring boss

4шт.

13

92424C1

RESTRICTOR

One way orifice

1шт.

14

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

1397 mm (55 inch) long

2шт.

15

1284269C1

HYDRAULIC HOSE

9144 mm (360 inch) long

1шт.

16

129672C2

HYDRAULIC HOSE

991 mm (39 inch) long, used on plows equipped with frame extension

1шт.

17

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Straight, 9/16-18 inch flare, used on plows equipped with frame extension

1шт.

18

S240879

BREATHER

FILTER

1шт.

19

218-5460

FITTING

90 degree, 3/4-16 adj. O-ring x 1/2 inch female PT

1шт.
