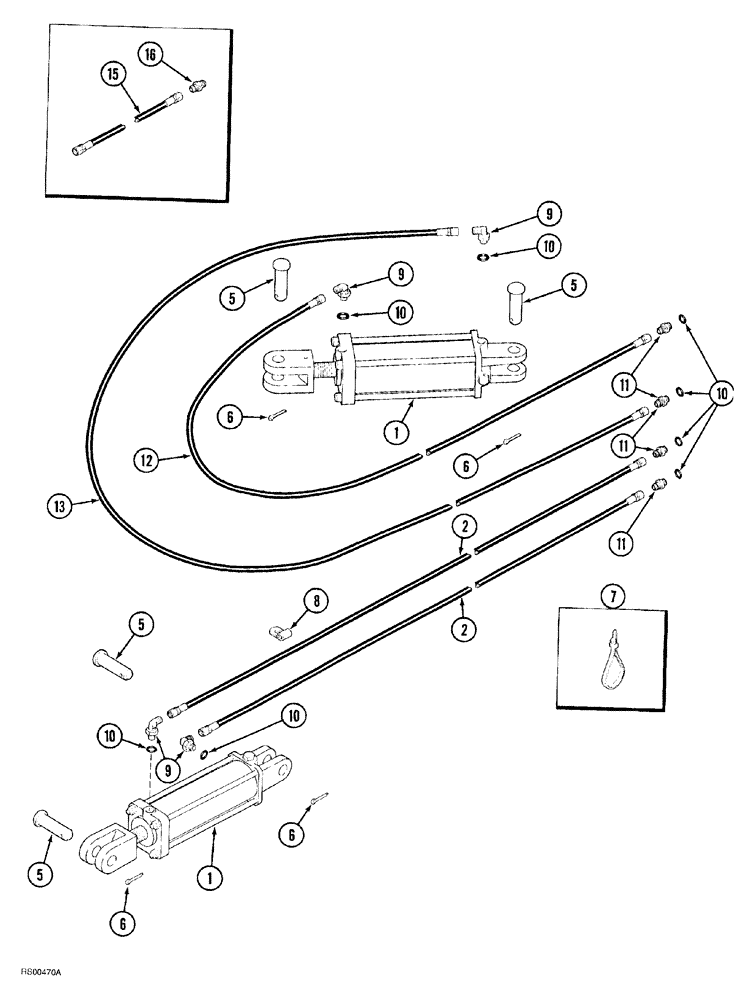

Запчасти Case IH 7500 (08-02) - HYDRAULIC SYSTEM, IN THE FURROW PLOWS WITH HYDRAULIC WIDTH ADJUSTMENT, PRIOR TO P.I.N. JAG0303580 (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY, hydraulic, 3 x 8 inch (See Fig. 08-07)

2шт.

2

1284330C1

HOSE

6096 mm (240 inch) long (4 furrow)

2шт.

2

129673C2

HOSE

7112 mm (280 inch) long (5 furrow)

2шт.

2

1284290C1

HYDRAULIC HOSE

8130 mm (320 inch) long (6 furrow)

2шт.

5

810751C1

PIN

1 x 3-1/2 inch

4шт.

6

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

3шт.

8

299615C1

CLAMP

P-type, 5/8 inch ID

1шт.

9

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

4шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8шт.

11

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Straight, 9/16-18 flare x 3/4-16 inch O-ring boss

4шт.

12

1284257C1

HYDRAULIC HOSE,9.53mm ID x 5335mm L

5334 mm (210 inch) long

1шт.

13

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

5715 mm (225 inch) long

1шт.

15

129672C2

HYDRAULIC HOSE

991 mm (39 inch) long, used on plows equipped with frame extension

1шт.

16

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Straight, 9/16-18 inch flare, used on plows equipped with frame extension

1шт.
