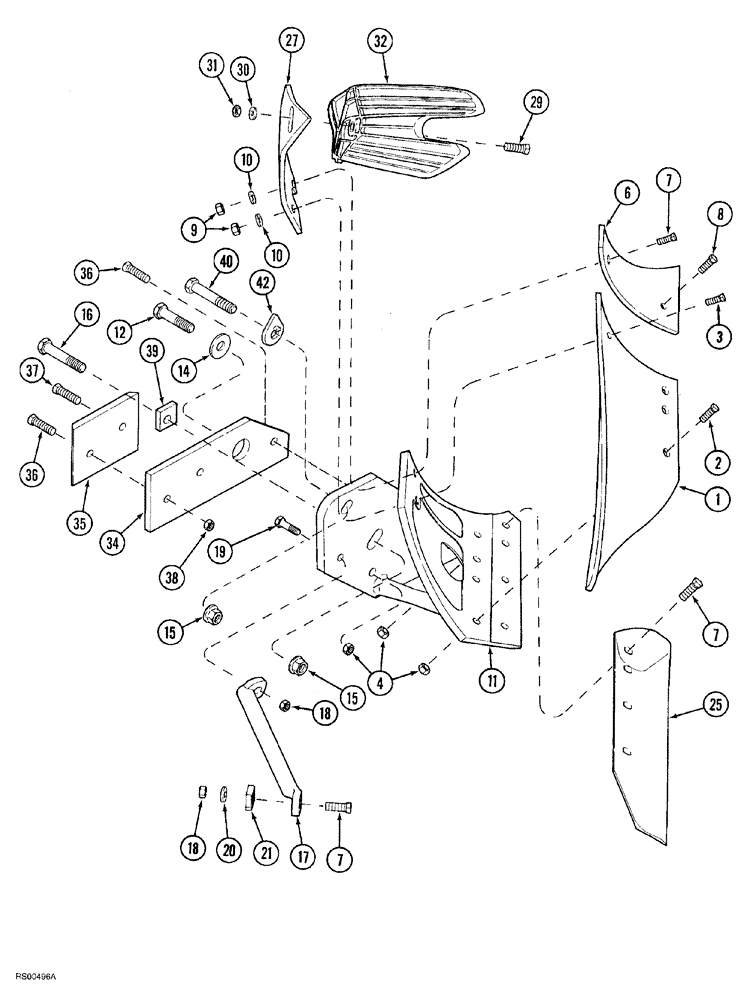

Запчасти Case IH 7500 (09-19) - MOLDBOARD BOTTOM, HSCXN-25 HEAVY DUTY SUPER CHIEF (09) - CHASSIS/ATTACHMENTS

1

179314A1

MOLDBOARD

right, HSCXN-25

1шт.

2

179324A1

BOLT

special oval, 7/16 inch x 32 mm

3шт.

3

179323A1

BOLT

special oval, 7/16 inch x 44 mm

2шт.

4

429-107

NUT,7/16"-14, G8

5шт.

6

179318A1

SHIN

right

1шт.

7

179324A1

BOLT

special oval, 7/16 inch x 32 mm

1шт.

8

179323A1

BOLT

special oval, 7/16 inch x 44 mm

1шт.

9

429-107

NUT,7/16"-14, G8

2шт.

10

495-81009

WASHER,.469" x 1" x .120"

4шт.

11

224130C2

FROG, SADDLE FROG

right

1шт.

12

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

1шт.

14

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

1шт.

15

1256884C1

NUT

hex flange, self locking, special, 5/8 inch NC, grade 8

4шт.

16

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

1шт.

17

132002C1

BRACE

, Serial Range: moldboard,-frog

1шт.

18

429-107

NUT,7/16"-14, G8

1шт.

19

426-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

1шт.

20

495-81009

WASHER,.469" x 1" x .120"

1шт.

21

490663R1

SQ HOLE WASHER,12.7mm ID x 31.75mm OD x 9.65mm Thk

serrated

1шт.

25

REF

INSTRUCTION

SHARE moldboard (See Fig. 09-20)

1шт.

27

484688R1

BRACKET

trash plate, right

1шт.

29

418-3624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

2шт.

30

495-81009

WASHER,.469" x 1" x .120"

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

464719R2

LARGE PLATE

Trash, Steel

1шт.

32

476811R1

PLATE

Trash, Plastic

1шт.

34

1980672C2

LARGE PLATE

PLATE, LARGE LANDSIDE standard, front

1шт.

35

59058C2

PAD

wear, landside

2шт.

36

59055C3

PLOW BOLT,Spcl Hd, 7/16" - 14 x 28mm

2шт.

37

59056C3

PLOW BOLT

special, 7/16 NC x 2 inch

1шт.

38

429-107

NUT,7/16"-14, G8

3шт.

39

58994C1

PLATE,SMALL SQUARE

stop, landside

1шт.

40

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

1шт.

42

1256864C2

WASHER

eccentric

1шт.
