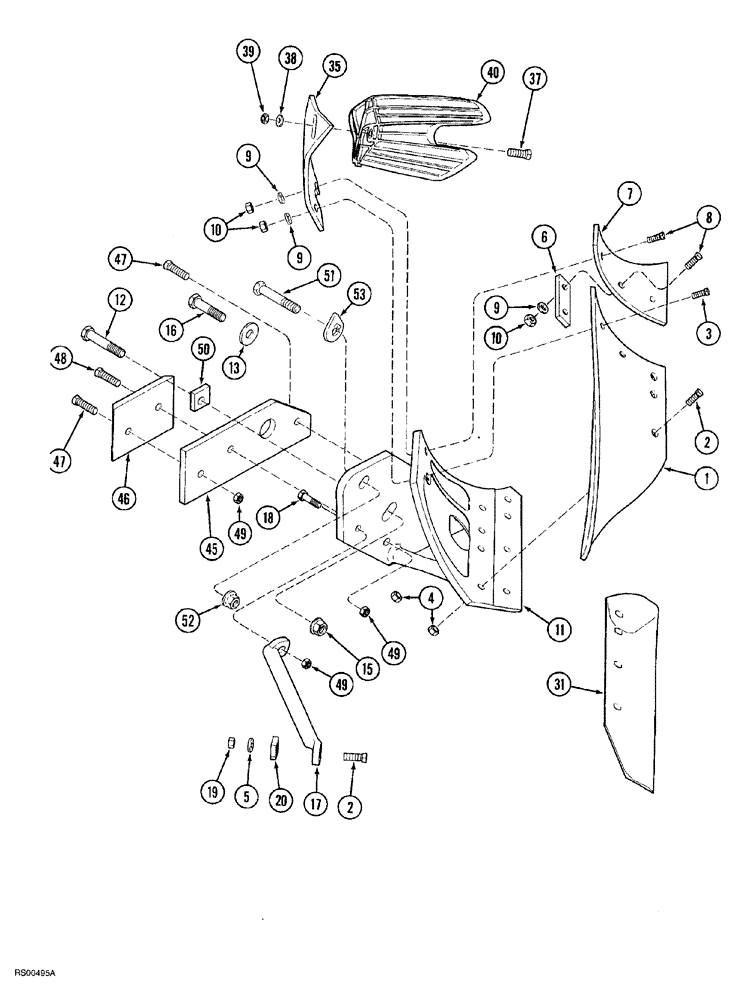

Запчасти Case IH 7500 (09-18) - MOLDBOARD BOTTOM, HSCU HEAVY DUTY SUPER CHIEF DEEP TILLAGE (09) - CHASSIS/ATTACHMENTS

1

491634R1

MOLDBOARD

deep tillage, right

1шт.

2

62177C1

PLOW BOLT

flat head square neck, 7/16 NC x 1-1/4 inch

5шт.

3

62179C1

PLOW BOLT

flat head square neck, 7/16 NC x 2-1/8 inch

1шт.

4

429-107

NUT,7/16"-14, G8

6шт.

5

495-81012

WASHER,0.47" ID x 1.25" OD x 0.18" Thk

flat, 15/32 x 1-1/4 x 11/64 inch

2шт.

6

491632R1

BAR

, Serial Range: shin,-moldboard

1шт.

7

491631R1

EXTENSION

SHIN right

1шт.

8

62177C1

PLOW BOLT

flat head square neck, 7/16 NC x 1-1/4 inch

3шт.

9

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

flat, 15/32 x 1 x 3/64 inch

3шт.

10

429-107

NUT,7/16"-14, G8

3шт.

11

224130C2

FROG, SADDLE FROG

right

1шт.

12

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

1шт.

13

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

1шт.

15

1256884C1

NUT

hex flange, self locking, special, 5/8 inch NC, grade 8

2шт.

16

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

hex, 5/8 NC x 3-1/2 inch, grade 8

1шт.

17

522318R2

SUPPORT

moldboard, to frog, right

1шт.

18

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

hex, 7/16 NC x 1-1/2 inch, grade 8

1шт.

19

429-107

NUT,7/16"-14, G8

1шт.

20

490663R1

SQ HOLE WASHER,12.7mm ID x 31.75mm OD x 9.65mm Thk

serrated

1шт.

31

REF

INSTRUCTION

SHARE moldboard (See Fig. 09-20)

1шт.

35

484688R1

BRACKET

trash plate, right

1шт.

37

418-3624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

plow, 3/8 NC x 1-1/2 inch

2шт.

38

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

39

425-106

NUT,3/8"-16, Cl 5

2шт.

40

464719R2

LARGE PLATE

PLATE, LARGE trash, right

1шт.

40

476811R1

PLATE

trash

1шт.

45

1980672C2

LARGE PLATE

PLATE, LARGE LANDSIDE standard, right

1шт.

46

59058C2

PAD

wear, landside

2шт.

47

59055C3

PLOW BOLT,Spcl Hd, 7/16" - 14 x 28mm

special, 7/16 NC x 1-3/32 inch

2шт.

48

59056C3

PLOW BOLT

special, 7/16 NC x 2 inch

1шт.

49

429-107

NUT,7/16"-14, G8

3шт.

50

58994C1

PLATE,SMALL SQUARE

stop, landside

1шт.

51

426-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

hex, 5/8 NC x 3-3/4 inch, grade 8

1шт.

52

1256884C1

NUT

hex flange, self locking, special, 5/8 inch NC, grade 8

1шт.

53

1256864C2

WASHER

eccentric

1шт.
