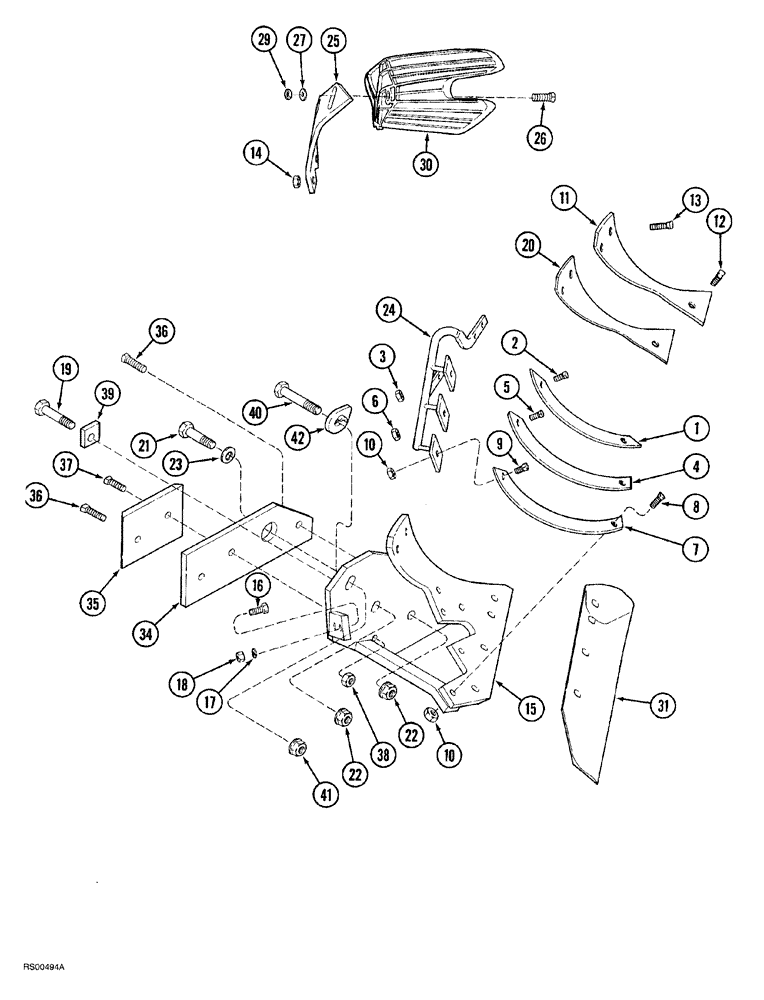

Запчасти Case IH 7500 (09-17) - MOLDBOARD BOTTOM, HSCS HEAVY DUTY SUPER CHIEF SLAT (09) - CHASSIS/ATTACHMENTS

1

488429R11

LARGE PLATE

PLATE, LARGE SLAT, No. 1, right

1шт.

2

62177C1

PLOW BOLT

flat head square neck, 7/16 NC x 1-1/4 inch

2шт.

3

429-107

NUT,7/16"-14, G8

2шт.

4

488430R11

LARGE PLATE

PLATE, LARGE SLA, No. 2, right

1шт.

5

62177C1

PLOW BOLT

flat head square neck, 7/16 NC x 1-1/4 inch

2шт.

6

429-107

NUT,7/16"-14, G8

2шт.

7

488431R11

LARGE PLATE

PLATE, LARGE SLAT, No. 3, right

1шт.

8

62177C1

PLOW BOLT

flat head square neck, 7/16 NC x 1-1/4 inch

1шт.

9

62179C1

PLOW BOLT

flat head square neck, 7/16 NC x 2-1/8 inch

1шт.

10

429-107

NUT,7/16"-14, G8

2шт.

11

488428R11

LARGE PLATE

PLATE, LARGE SHIN ASSEMBLY, moldboard, right

1шт.

12

62177C1

PLOW BOLT

flat head square neck, 7/16 NC x 1-1/4 inch

1шт.

13

62179C1

PLOW BOLT

flat head square neck, 7/16 NC x 2-1/8 inch

2шт.

14

429-107

NUT,7/16"-14, G8

3шт.

15

488424R1

FROG, SADDLE FROG

right

1шт.

16

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

hex, 7/16 NC x 1-1/2 inch, grade 8

2шт.

17

492-11044

LOCK WASHER,7/16"

2шт.

18

429-1110

NUT,5/8"-18, G8

3шт.

19

428-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 8

hex, 5/8 NF x 3 inch, grade 8

1шт.

20

491399R1

BLOCK

shin

1шт.

21

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

hex, 5/8 NC x 3-1/2 inch, grade 8

1шт.

22

1256884C1

NUT

hex flange, self locking, special, 5/8 inch NC, grade 8

2шт.

23

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

1шт.

24

488432R1

SUPPORT

slat, right

1шт.

25

484688R1

BRACKET

trash plate, right

1шт.

26

418-3624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

plow, 3/8 NC x 1-1/2 inch

2шт.

27

495-81009

WASHER,.469" x 1" x .120"

flat, 15/32 x 1 x 1/8 inch

2шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.

30

464719R2

LARGE PLATE

PLATE, LARGE trash, right (Steel)

1шт.

30

476811R1

PLATE

trash

1шт.

31

REF

INSTRUCTION

SHARE moldboard (See Fig. 09-20)

1шт.

34

1980672C2

LARGE PLATE

PLATE, LARGE LANDSIDE standard, right

1шт.

35

59058C2

PAD

wear, landside

2шт.

36

59055C3

PLOW BOLT,Spcl Hd, 7/16" - 14 x 28mm

special, 7/16 NC x 1-3/32 inch

2шт.

37

59056C3

PLOW BOLT

special, 7/16 NC x 2 inch

1шт.

38

429-107

NUT,7/16"-14, G8

3шт.

39

58994C1

PLATE,SMALL SQUARE

stop, landside

1шт.

40

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

1шт.

41

1256884C1

NUT

hex flange, self locking, special, 5/8 inch NC, grade 8

1шт.

42

1256864C2

WASHER

eccentric

1шт.
