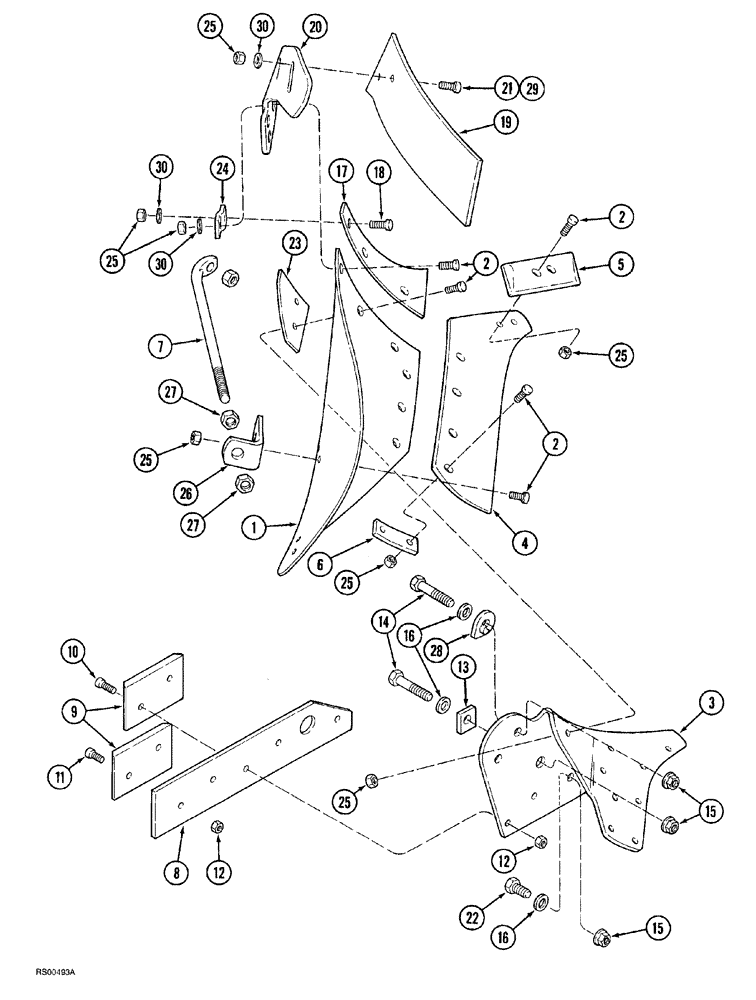

Запчасти Case IH 7500 (09-16) - MOLDBOARD BOTTOM, HSES HIGH SPEED EUROPEAN (09) - CHASSIS/ATTACHMENTS

1

1986183C1

MOLDBOARD

High Speed European Style, 20 inch

1шт.

2

1995840C1

PLOW BOLT

special, 12 x 35 mm (Nut not required)

10шт.

2

179323A1

BOLT

special oval, 7/16 inch x 44 mm

10шт.

3

1985932C2

FROG, SADDLE FROG

plow

1шт.

4

REF

INSTRUCTION

SHARE right, curved (See Fig. 09-20)

1шт.

5

REF

INSTRUCTION

POINT share, reversible (See Fig. 09-20)

1шт.

6

1995843C1

SUPPORT

share (Not used with 14 inch share)

1шт.

7

1986186C1

SUPPORT

stay

1шт.

8

526777R3

LANDSIDE

long, right

1шт.

9

59058C2

PAD

wear, landside

2шт.

10

59055C3

PLOW BOLT,Spcl Hd, 7/16" - 14 x 28mm

special, 7/16 NC x 1-3/32 inch

3шт.

11

131972C2

BOLT,Spcl Hd, 7/16" - 14 x 15mm Thd RH

special, 7/16 NC x 1-3/16 inch

2шт.

12

429-107

NUT,7/16"-14, G8

5шт.

13

58994C1

PLATE,SMALL SQUARE

stop, landside

1шт.

14

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

hex, 5/8 NC x 3-1/2 inch, grade 8

2шт.

15

1256884C1

NUT

hex flange, self locking, special, 5/8 inch NC, grade 8

3шт.

16

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

3шт.

17

1986185C1

EXTENSION

SHIN moldboard

1шт.

18

1995841C1

PLOW BOLT

special, 12 x 32 mm

3шт.

1986315C1

LARGE PLATE

PLATE, LARGE KIT trash plate

1шт.

19

1986316C1

LARGE PLATE

PLATE, LARGE trash

1шт.

20

1986317C1

SUPPORT

trash plate

1шт.

21

1995841C1

PLOW BOLT

special, 12 x 32 mm (Nut not required)

2шт.

22

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

1шт.

23

234954A1

FASTENER

BRACKET flat tie

1шт.

24

234953A1

FASTENER

BRACKET offset tie

1шт.

25

829-1312

NUT,M12 x 1.75, Cl 10

10шт.

26

126045A1

BRACKET

brace

1шт.

27

829-1420

NUT,M20, Cl 10

2шт.

28

1256864C2

WASHER

eccentric

1шт.

29

179324A2

BOLT,Spcl, 7/16" - 14 x 32mm, Cl 10.9

special oval, 7/16 x 32 mm

2шт.

30

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

3шт.
