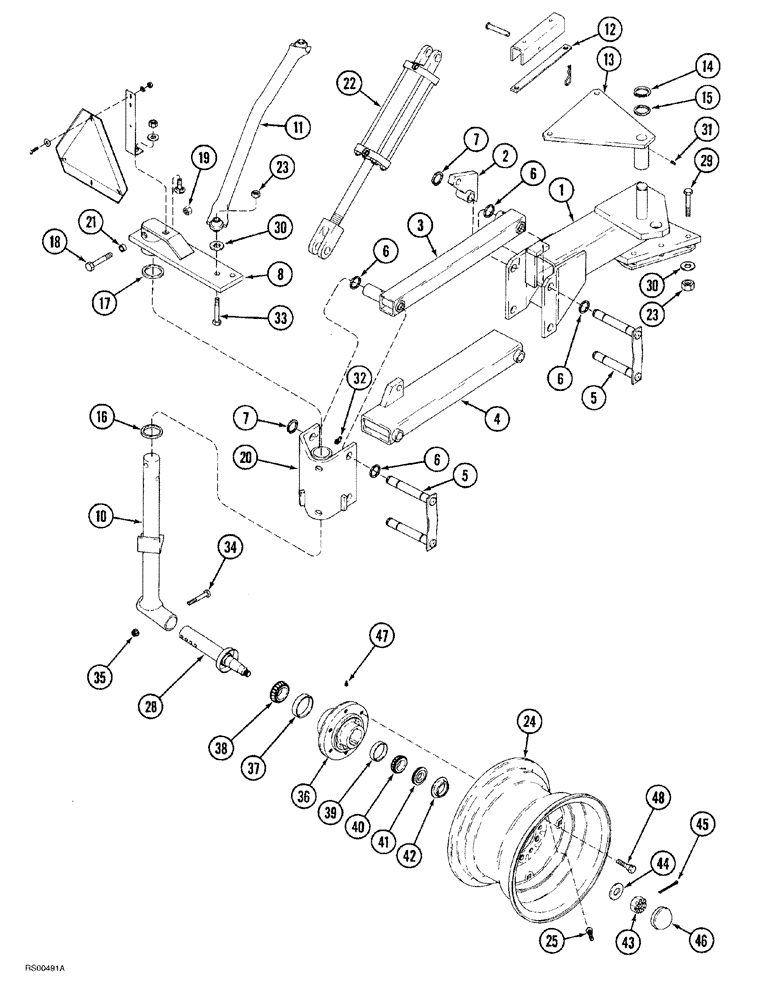

Запчасти Case IH 7500 (09-15) - REAR FURROW WHEEL (09) - CHASSIS/ATTACHMENTS

1

1973333C2

FRAME

rear furrow wheel

1шт.

2

1973340C1

BAR ASSY.

cylinder anchor

1шт.

3

1969307C1

TUBE ASSY.

upper

1шт.

4

1969309C1

TUBE

lower

1шт.

5

1969447C3

PIN ASSY.

Link, 215mm Long

2шт.

5

259392A1

PIN ASSY.

Link, 234mm Long

2шт.

6

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

flat, 1-9/32 x 1-3/4 x 1/16 inch

8шт.

7

100-16125

SNAP RING,#125, Ext

4шт.

8

1973347C2

ARM ASSY.

rear furrow wheel

1шт.

10

1973343C1

SHAFT

pivot

1шт.

11

1976190C1

TUBE

rear steering

1шт.

12

1344531C1

STRAP

support

2шт.

13

1344528C1

ARM ASSY.

steering, center

1шт.

14

100-11162

SNAP RING,#162, Ext

1шт.

15

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

flat, 1-21/32 x 2-1/4 x 7/64 inch

1шт.

16

61625C1

WASHER

flat, 2-17/32 x 3-1/4 x 7/64 inch

1шт.

17

495-81231

WASHER,2 17/32" x 3 1/4" x .060"

flat, 2-17/32 x 3-1/4 x 1/16 inch

1шт.

18

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2шт.

19

231-41412

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

2шт.

20

1969304C1

PIVOT

front pivot

1шт.

21

495827R1

SPACER,1" Tube x 1/2"

25/32 x 1/2 x 1 inch

2шт.

22

REF

INSTRUCTION

Cylinder, 3 x 8 inch (See Fig. 08-07)

1шт.

23

232-41112

NUT,3/4"-10, GC

6шт.

24

481344R91

WHEEL

14 (356) x 8 inch (203 mm), used on all plows, Serial Range: -JAG0303580

1шт.

24

481344R91

WHEEL

14 (356) x 8 inch (203 mm) used on "In-the-Furrow" plows, Start Serial: JAG0303580

1шт.

24

A57879

RIM

15 (381) x 8 inch (203 mm), used on "On-the-Land" plows JAG0303580 to

1шт.

25

810768C1

VALVE

Inflation, use with 14 x 8 wheel

2шт.

25

810769C1

VALVE

Inflation, use with 15 x 8 rim

2шт.

28

1344648C1

AXLE

rear furrow wheel, rear furrow wheel

1шт.

29

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

hex, 3/4 NC x 3-1/2 inch, GR 8

3шт.

30

522473R1

WASHER

flat, 49/64 x 1-3/4 x 1/8 inch

6шт.

31

219-87

LUBE NIPPLE,1/4" - 28 NPTF

9шт.

32

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper

2шт.

33

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

hex, 3/4 NC x 5-1/2 inch

3шт.

34

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

35

231-4118

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC

1шт.

36

606468R21

HUB

ASSEMBLY, wheel

1шт.

37

663558R1

BEARING CUP

tapered roller, 2-57/64 inch O.D.

1шт.

38

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

tapered roller, 1-5/8 inch ID, outer

1шт.

39

651817R1

BEARING CUP

tapered roller, outer

1шт.

40

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

1шт.

41

594702R91

SEAL

oil, with wear sleeve

1шт.

42

594703R1

SLEEVE

wear, 1/2 inch wide

1шт.

43

70120D

SLOTTED NUT,7/8"-14

hex, special, 7/8 inch NC

1шт.

44

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

flat, special, hardened

1шт.

45

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

46

224066C1

HUB CAP

1шт.

47

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

48

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

hex conical, 1/2 NF x 1-5/32 inch

6шт.

51

311860A1

EMBLEM

Slow Moving Vehicle

1шт.

51

311859A1

TRAFFIC SIGN

Slow Moving Vehicle

1шт.

51

311858A1

DECAL

Slow Moving Vehicle

1шт.

52

131946C1

SUPPORT

mounting

1шт.

53

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

54

495-81105

WASHER,.281" x 3/4" x .120"

flat, 9/32 x 3/4 x 1/8 inch

2шт.

55

492-11025

LOCK WASHER,1/4"

2шт.

56

425-104

NUT,1/4"-20, Cl 5

2шт.

59

1337050C1

CHANNEL

transport lockout

1шт.

60

439-1544

HEADED PIN,5/16" x 2 3/4"

headed, 5/16 x 2-3/4 inch, GR 2

1шт.

61

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

locking

1шт.

62

11-1224

CARRIAGE BOLT,Short NK, 3/4"-10 x 1 1/2", G2

1шт.

63

522473R1

WASHER

flat, 49/64 x 1-3/4 x 1/8 inch

1шт.

64

232-41112

NUT,3/4"-10, GC

1шт.
