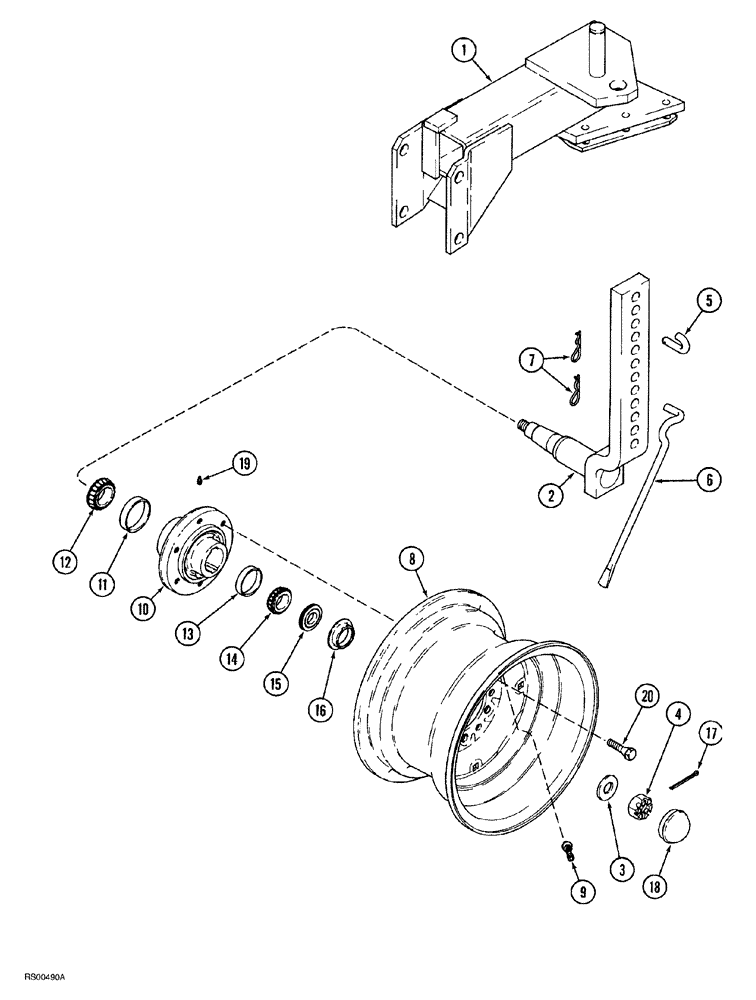

Запчасти Case IH 7500 (09-14) - GAUGE WHEEL (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME rear furrow wheel (See Fig. 09-15)

1шт.

2

1344904C1

SUPPORT ASSY.

gauge wheel

1шт.

3

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

flat, special, hardened

1шт.

4

70120D

SLOTTED NUT,7/8"-14

hex, special, 7/8 inch NC

1шт.

5

520620R1

AXLE PIN

retaining

1шт.

6

490680R1

ROD

gauge wheel

1шт.

7

1978738C1

HAIR PIN COTTER

2шт.

8

481344R91

WHEEL

14 x 8

1шт.

8

A57879

RIM

15 x 8

1шт.

9

810768C1

VALVE

Inflation, use with 14 x 8 wheel

1шт.

9

810769C1

VALVE

Inflation, use with 15 x 8 rim

1шт.

10

606468R21

HUB

ASSEMBLY, wheel

1шт.

11

663558R1

BEARING CUP

tapered roller, 2-57/64 inch O.D.

1шт.

12

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

tapered roller, 1-5/8 inch ID

1шт.

13

651817R1

BEARING CUP

tapered roller

1шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

1шт.

15

594702R91

SEAL

oil

1шт.

16

594703R1

SLEEVE

wear, 1/2 inch wide

1шт.

17

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

18

224066C1

HUB CAP

1шт.

19

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

20

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

hex conical, 1/2 NF x 1-5/32 inch

6шт.
