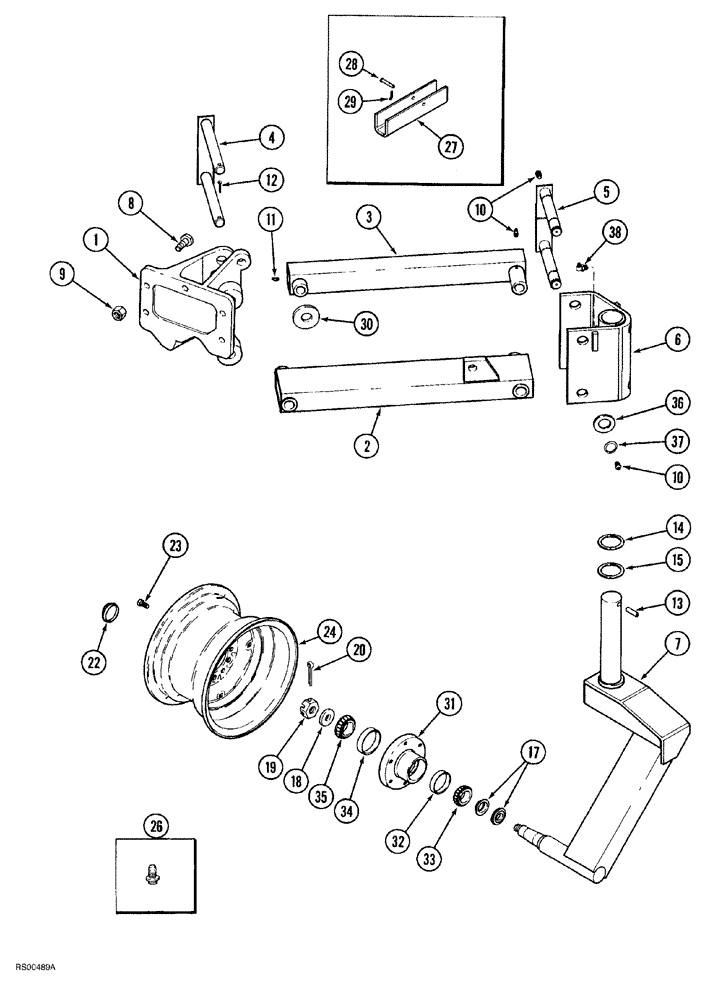

Запчасти Case IH 7500 (09-13) - FRONT FURROW WHEEL, ON THE LAND PLOWS (09) - CHASSIS/ATTACHMENTS

1

1969311C1

BRACKET

furrow wheel

1шт.

2

1969309C1

TUBE

lower

1шт.

3

1969307C1

TUBE ASSY.

upper

1шт.

4

1344584C1

PIN ASSY.

link

1шт.

5

1969447C1

PIN ASSY.

link

1шт.

6

1969304C1

PIVOT

front

1шт.

7

1969330C1

AXLE

caster

1шт.

8

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4 NC x 3 inch

5шт.

9

230-42112

LOCK NUT,3/4"-10, GA

hex, self locking, 3/4 inch NC

5шт.

10

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

11

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

grease, 45 degree, 1/4-28 special taper x 13/16 inch

2шт.

12

432-2040

COTTER PIN,5/16" x 2 1/2"

5/16" x 2 1/2"

2шт.

13

28003R1

PIN,1/2" x 3 1/2", Coiled

1/2" x 3 1/2", Coiled

1шт.

14

495-81231

WASHER,2 17/32" x 3 1/4" x .060"

flat, 2-17/32 x 3-1/4 x 1/16 inch

2шт.

15

61625C1

WASHER

flat, 2-17/32 x 3-1/4 x 7/64 inch

1шт.

17

606556R91

OIL SEAL

oil, with sleeve

1шт.

18

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch

1шт.

19

70120D

SLOTTED NUT,7/8"-14

hex, special, 7/8 inch NC

1шт.

20

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

22

663906R1

CAP

wheel hub

1шт.

23

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

hex conical, 1/2 NF x 1-5/32 inch

6шт.

24

481344R91

WHEEL

14 (356) x 8 inch (203 mm) (Use 9.50 x 14, 6 ply tire)

1шт.

26

810768C1

VALVE

inflation

1шт.

27

1337050C1

CHANNEL

transport lockout

1шт.

28

439-1544

HEADED PIN,5/16" x 2 3/4"

headed, 5/16 x 2-3/4 inch, grade 2

1шт.

29

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

locking

1шт.

30

495-81203

WASHER,1 9/32" x 2" x .120"

flat, 1-9/32 x 2 x 1/8 inch

3шт.

31

606468R21

HUB

ASSEMBLY, wheel

1шт.

32

663558R1

BEARING CUP

tapered roller, 2-57/64 inch O.D.

1шт.

33

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

tapered roller, 1-5/8 inch ID

1шт.

34

651817R1

BEARING CUP

tapered roller, outer

1шт.

35

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller, outer

1шт.

36

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

flat, 1-9/32 x 1-3/4 x 1/16 inch

4шт.

37

100-16125

SNAP RING,#125, Ext

1шт.

38

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper

2шт.
