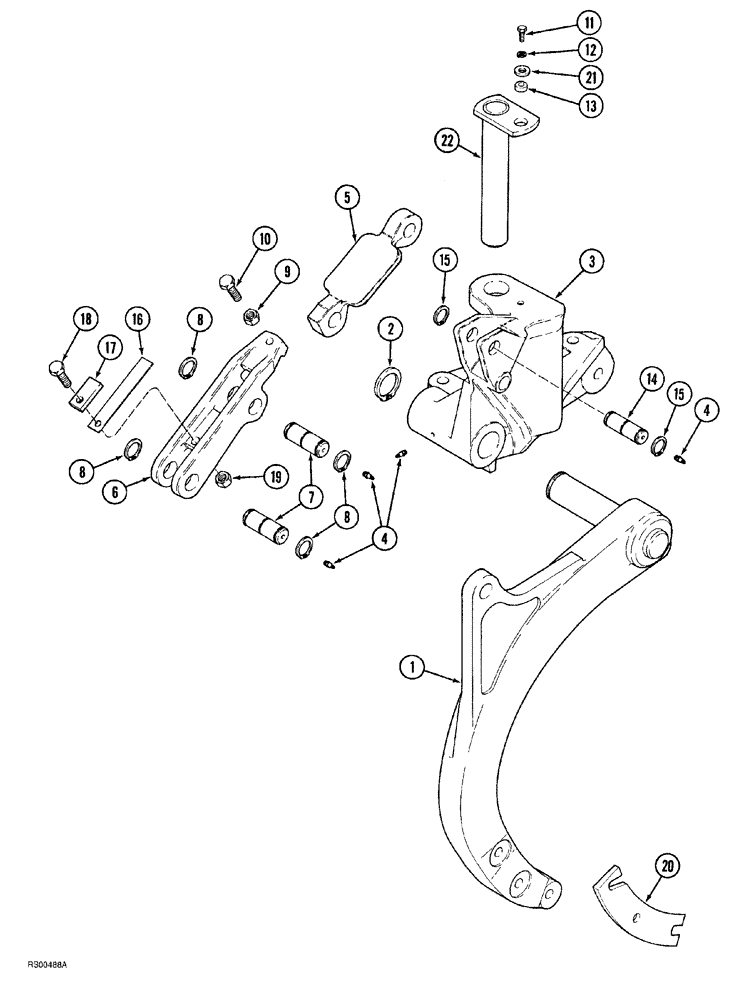

Запчасти Case IH 7500 (09-12) - TOGGLE TRIP BEAM (09) - CHASSIS/ATTACHMENTS

1

224140C1

BEAM ASSY.

toggle trip

1шт.

2

103-16200

SNAP RING,#200, Ext

1шт.

3

224092C1

BRACKET

auto trip

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

1986067C1

TOGGLE

ASSY, Front and Rear Links

1шт.

5

224269C1

LINK

Front (included in ASSY. 1986067C1)

1шт.

6

224278C1

LINK

Rear (included in ASSY. 1986067C1)

1шт.

7

1256897C1

PIN

pivot

2шт.

8

100-16112

SNAP RING,#112, Ext

2шт.

9

425-148

JAM NUT,Jam, 1/2"-13, G5

3шт.

10

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

1шт.

11

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

13

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

Grate and cage bar

1шт.

14

131948C2

PIN

Cylinder, Body End

1шт.

15

100-1698

SNAP RING,#98, Ext

2шт.

16

224273C1

SPRING

keeper

1шт.

17

1256865C1

BAR

spring

1шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

19

128366C1

LOCK NUT

hex, self locking, 3/8 inch NC

1шт.

20

491899R1

SHIM

SHIM beam

1шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

22

1256892C1

PIN

pivot

1шт.
