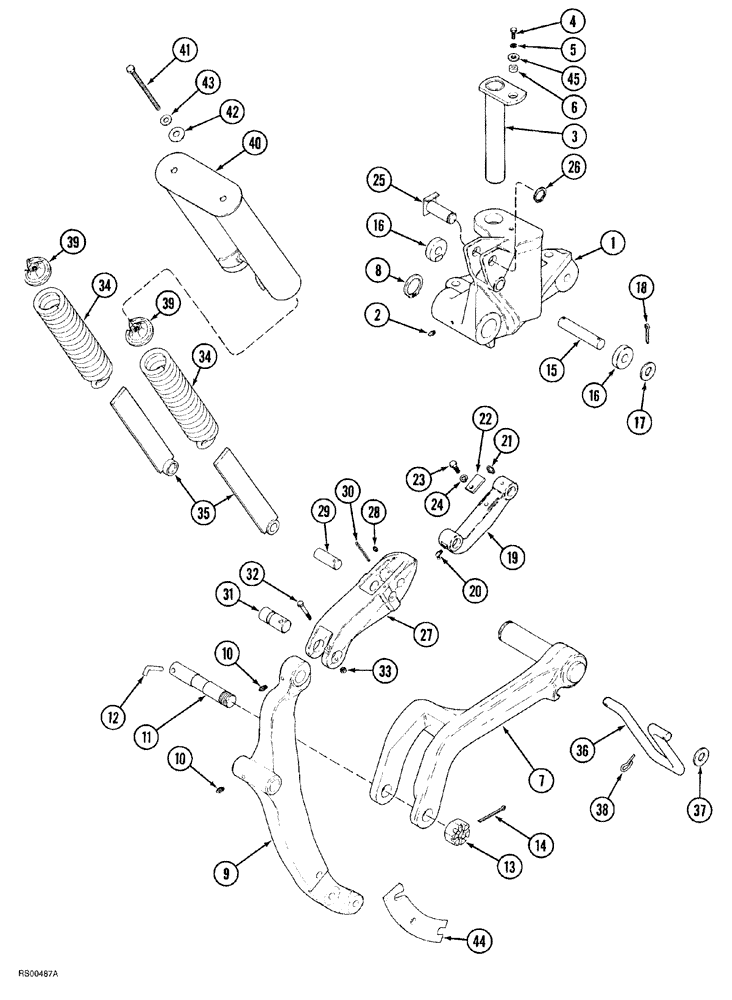

Запчасти Case IH 7500 (09-11) - AUTOMATIC TRIP BEAM (09) - CHASSIS/ATTACHMENTS

1

224092C1

BRACKET

auto trip

1шт.

2

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

3

1256892C1

PIN

pivot

1шт.

4

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

6

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

Grate and cage bar

1шт.

7

55366C4

PLOW BEAM

lower link

1шт.

8

103-16200

SNAP RING,#200, Ext

1шт.

9

121224A1

BEAM

auto trip (Replaces 61056C2)

1шт.

10

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

11

485526R1

SHAFT

pivot

1шт.

12

813175C2

LOCK PIN,9.5mm OD

special

1шт.

13

519250R1

SLOTTED NUT

hex, slotted, 1-1/4 inch NF

1шт.

14

432-840

COTTER PIN,1/8" x 2 1/2"

1/8" x 2 1/2"

1шт.

15

485534R2

PIN,25.4mm OD x 132mm L

retaining, upper mounting roller

1шт.

16

61561C1

SPACER

stop roller

2шт.

17

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

flat, 1-1/32 x 1-3/4 x 1/16 inch

2шт.

18

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

19

485537R4

SUPPORT

front

1шт.

20

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

22

489152R2

BAND

load adjusting

1шт.

23

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

hex, 5/16 NC x 1-1/4 inch, grade 8

1шт.

24

492-11031

LOCK WASHER,5/16"

1шт.

25

485539R1

PIN

front link

1шт.

26

100-1698

SNAP RING,#98, Ext

1шт.

27

485542R6

LEVER

upper rear

1шт.

28

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

29

485543R1

PIN

upper link center

1шт.

30

438-31440

PIN,7/32" x 2 1/2", Coiled

7/32" x 2 1/2", Coiled

1шт.

31

121225A1

PIN,31.75mm OD x 76mm L

pivot, plow beam

1шт.

32

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

33

231-4115

NUT,5/16"-18, GB

4шт.

34

118674A1

SPRING

extension (Replaces 485557R1)

2шт.

35

485545R1

BAR

spring insert

2шт.

36

485544R1

HOLDER

spring mounting hook

1шт.

37

486365R1

WASHER

flat, hardened, 29/32 x 1-1/2 x 1/16 inch

2шт.

38

460309R1

COTTER PIN

hair

2шт.

39

485548R2

WASHER

spring

2шт.

40

485551R3

TUBE

spring

1шт.

41

485555R1

BOLT,Hex, 1/2" - 13 x 4 1/4"

hex, full thread, 1/2 NC x 4-1/4 inch

2шт.

42

495-81169

WASHER,17/32" x 2 1/2" x .120"

flat, 17/32 x 2-1/2 x 3/64 inch

2шт.

43

495-81021

WASHER,17/32" x 1" x .120"

flat, 17/32 x 1 x 7/64 inch

2шт.

44

491899R1

SHIM

SHIM beam (If Equipped)

1шт.

45

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.
