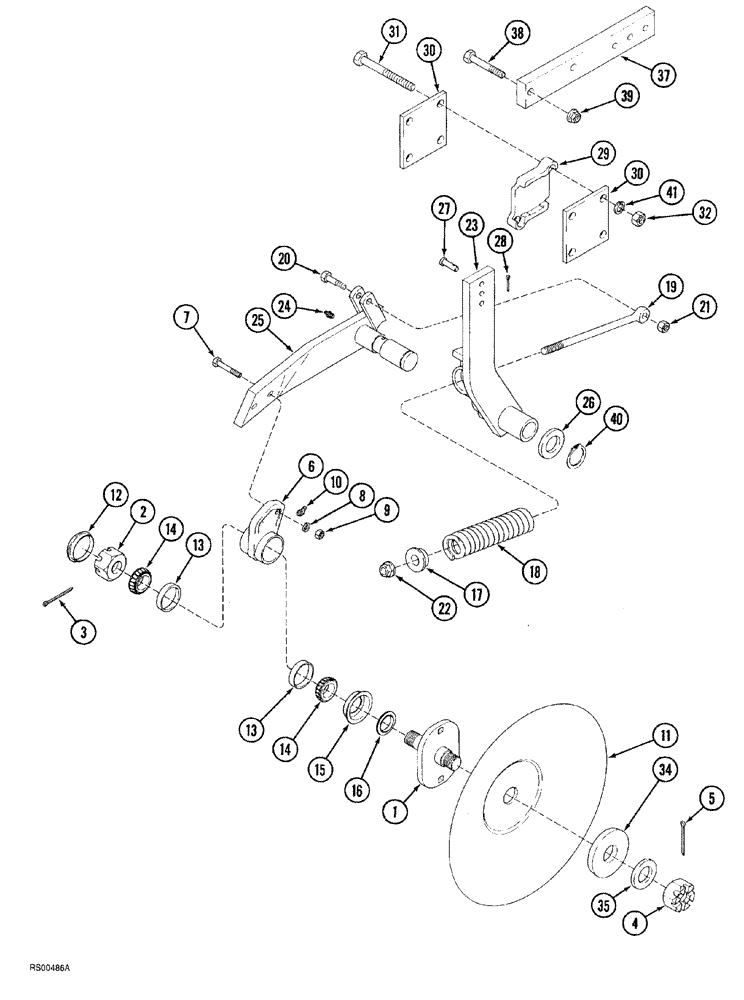

Запчасти Case IH 7500 (09-10) - ROLLING COULTER, SPRING CUSHION TYPE WITH CRIMPLED COULTER BLADE (09) - CHASSIS/ATTACHMENTS

1

1995604C1

SPINDLE

coulter

1шт.

2

519250R1

SLOTTED NUT

hex, slotted, 1-1/4 inch NF

1шт.

3

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

4

519250R1

SLOTTED NUT

hex, slotted, 1-1/4 inch NF

1шт.

5

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

6

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

bearing housing

1шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

11

87442985

PLOW DISC

solid, 508 x 6.5 mm

1шт.

11

87442984

NOTCHED DISK

notched, 508 x 5 mm

1шт.

11

87442995

PLOW DISC

DISK, 22"X6.5MM CC PLAIN

1шт.

11

87442994

NOTCHED DISK

DISK, 22"X5MM CC NOTCHED

1шт.

11

87442979

PLOW DISC

notched, 457 x 4.5 mm

1шт.

12

518842R1

CAP

hub

1шт.

13

651817R1

BEARING CUP

tapered roller

2шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

2шт.

15

472222R1

SLEEVE

oil seal

1шт.

16

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

1шт.

17

487697R1

CENTERING RING

spring

1шт.

18

487698R1

SPRING

cushion

1шт.

19

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT, EYE 5/8 inch NC

1шт.

20

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

1шт.

21

231-4138

LOCK NUT,1/2"-13, GB

1шт.

22

231-14410

NUT,5/8"-11, GB

1шт.

23

106574A1

SUPPORT ASSY.

bent

1шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

25

106575A1

SUPPORT ASSY.

coulter

1шт.

26

1284383C1

WASHER

arbor bolt

1шт.

27

439-1820

HEADED PIN,1/2" x 1 1/8"

headed, 1/2 x 2-1/4 inch

1шт.

28

432-816

COTTER PIN,1/8" x 1"

1шт.

29

61453C1

BLOCK

adjusting

1шт.

30

61450C1

PLATE

clamp

2шт.

31

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

32

425-1010

NUT,5/8"-11, G5

4шт.

34

139773C1

WASHER

end

1шт.

35

396-31131

WASHER,1 3/8" x 2 1/2" x 1/4", HDN

flat, 1-3/8 x 2-1/2 x 1/4 inch, hardened

1шт.

36

61570C1

FERRULE

coulter arm

1шт.

37

224272C1

BAR

coulter stub

1шт.

38

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

2шт.

39

230-42112

LOCK NUT,3/4"-10, GA

hex, self locking, 3/4 inch NC

2шт.

40

100-11162

SNAP RING,#162, Ext

1шт.

41

492-11062

BEARING WASHER,5/8"

4шт.
