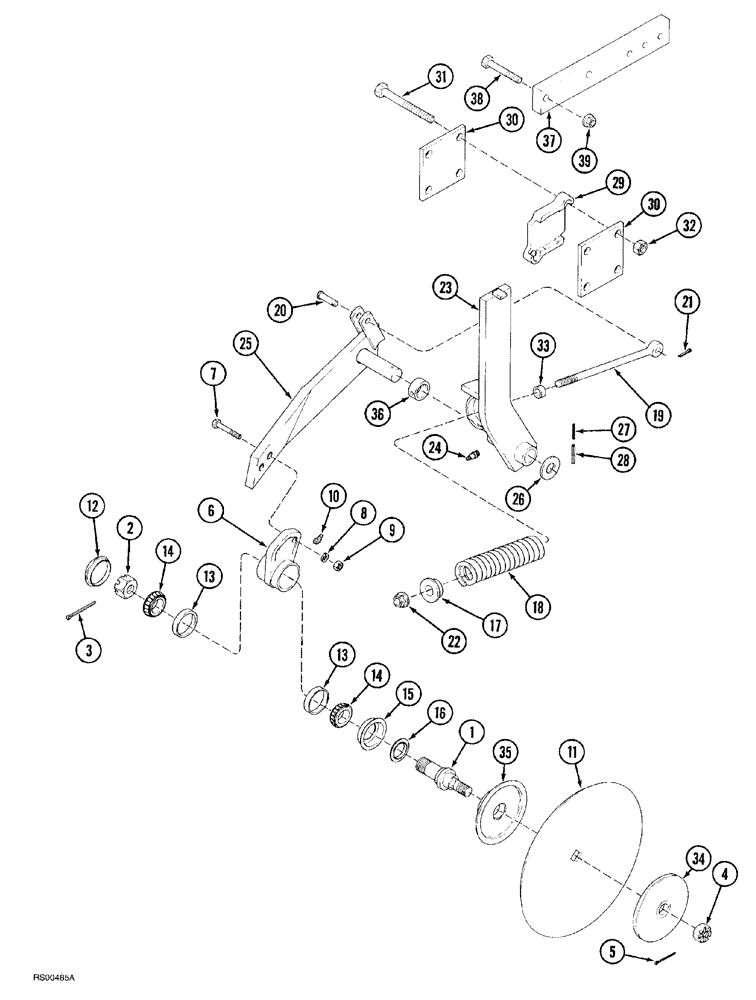

Запчасти Case IH 7500 (09-09) - ROLLING COULTER, SPRING CUSHION TYPE WITH CAST ARM (09) - CHASSIS/ATTACHMENTS

1

61452C1

SPINDLE

colter

1шт.

2

519250R1

SLOTTED NUT

hex, slotted, 1-1/4 inch NF

1шт.

3

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

4

429-1314

NUT,7/8"-14, G8

hex, 7/8 inch NF, grade 8

1шт.

5

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

6

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

bearing housing

1шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

2шт.

10

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

11

31200R1

DISC

coulter, 20 inch plane edge

1шт.

12

518842R1

CAP

hub

1шт.

13

651817R1

BEARING CUP

tapered roller

2шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

2шт.

15

472222R1

SLEEVE

oil seal

1шт.

16

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

1шт.

17

487697R1

CENTERING RING

spring

1шт.

18

487698R1

SPRING

cushion, 13-1/2 coils

1шт.

19

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT, EYE 5/8 inch NC

1шт.

20

439-1828

HEADED PIN,1/2" x 1 3/4"

headed, 1/2 x 1-3/4 inch, grade 2

1шт.

21

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

22

232-41110

NUT,5/8"-11, GC

1шт.

23

61446C1

SUPPORT ASSY.

bent

1шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

25

61447C1

ARM

coulter

1шт.

26

162677C1

WASHER

flat, 1-9/32 x 1-3/4 x 1/16 inch

1шт.

27

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

1шт.

28

38-32028

PIN,7.92mm OD x 44.45mm L

5/16" x 1 3/4", Coiled

1шт.

29

61453C1

BLOCK

adjusting

1шт.

30

61450C1

PLATE

clamp

2шт.

31

413-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

hex, 5/8 NC x 4-3/4 inch

4шт.

32

425-1010

NUT,5/8"-11, G5

4шт.

33

484624R1

SPACER

rod

1шт.

34

519086R2

SUPPORT

disc

1шт.

35

61451C1

WASHER

disk, inner

1шт.

36

61570C1

FERRULE

coulter arm

1шт.

37

224272C1

BAR

coulter stub

1шт.

38

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

2шт.

39

230-42112

LOCK NUT,3/4"-10, GA

hex, self locking, 3/4 inch NC

2шт.
