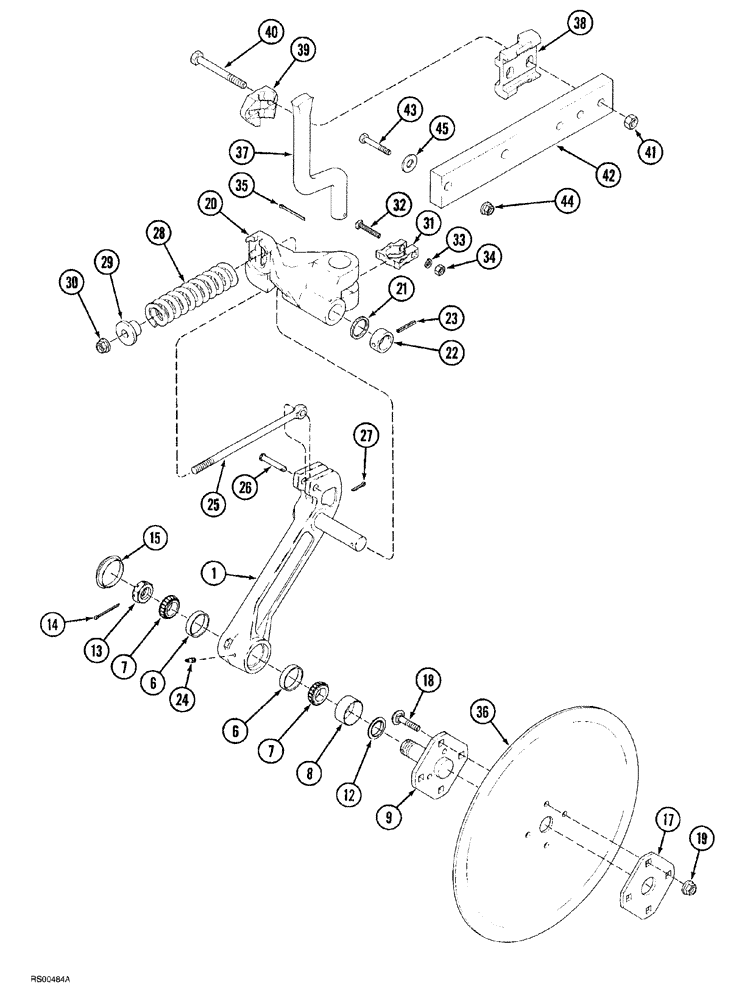

Запчасти Case IH 7500 (09-08) - ROLLING COULTER, HEAVY DUTY SPRING CUSHION TYPE (09) - CHASSIS/ATTACHMENTS

1

224274C1

LEVER

cast

1шт.

6

651817R1

BEARING CUP

tapered roller

2шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller

2шт.

8

472633R1

BUSHING

wear

1шт.

9

224063C1

HUB

coulter

1шт.

12

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

1шт.

13

519250R1

SLOTTED NUT

hex, slotted, 1-1/4 inch NF

1шт.

14

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

15

224066C1

HUB CAP

1шт.

17

224067C1

LARGE PLATE

PLATE, LARGE disk, outer

1шт.

18

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

carriage, 1/2 NC x 1-1/4 inch

4шт.

19

231-5348

FLANGE NUT,Flg, 1/2"-13

4шт.

20

224068C1

SUPPORT

coulter

1шт.

21

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

flat, 1-9/32 x 1-3/4 x 1/16 inch

1шт.

22

61570C1

FERRULE

coulter arm

1шт.

23

438-32032

PIN,5/16" x 2", Coiled

5/16" x 2", Coiled

1шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

25

480344R1

EYEBOLT,Spring, 5/8" - 11 x 299.70mm

BOLT, EYE 5/8 inch NC

1шт.

26

439-1834

HEADED PIN,1/2" x 2 1/8"

headed, 1/2 x 2-1/8 inch, GR 2

1шт.

27

432-1216

COTTER PIN,3/16" x 1"

1шт.

28

487698R1

SPRING

cushion, 13-1/2 coils

1шт.

29

487697R1

CENTERING RING

spring

1шт.

30

231-41110

LOCK NUT,5/8"-11, GB

1шт.

31

112844C1

COLLAR CLAMP

stop collar

1шт.

32

18929R1

BOLT,7/16" - 14 x 2 1/2", Gr 2

square head, 7/16 NC x 2-1/2 inch

1шт.

33

492-11044

LOCK WASHER,7/16"

1шт.

34

425-107

NUT,7/16"-14, G5

1шт.

35

432-2036

COTTER PIN,5/16" x 2 1/4"

5/16" x 2 1/4"

1шт.

36

28341R1

PLOW DISC

coulter, rippled edge, 20 inch

1шт.

36

122567C1

DISC

coulter, 22 inch rippled edge

1шт.

37

488792R1

SHANK

coulter

1шт.

38

524456R3

CLAMP

coulter

1шт.

39

524492R1

CLAMP

coulter clamp

1шт.

40

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

41

425-1010

NUT,5/8"-11, G5

2шт.

42

224272C1

BAR

coulter stub

1шт.

43

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

2шт.

44

231-42112

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC

2шт.

45

495-81042

WASHER,25/32" x 1 1/2" x .120"

flat, 25/32 x 1-1/2 x 7/64 inch

2шт.
