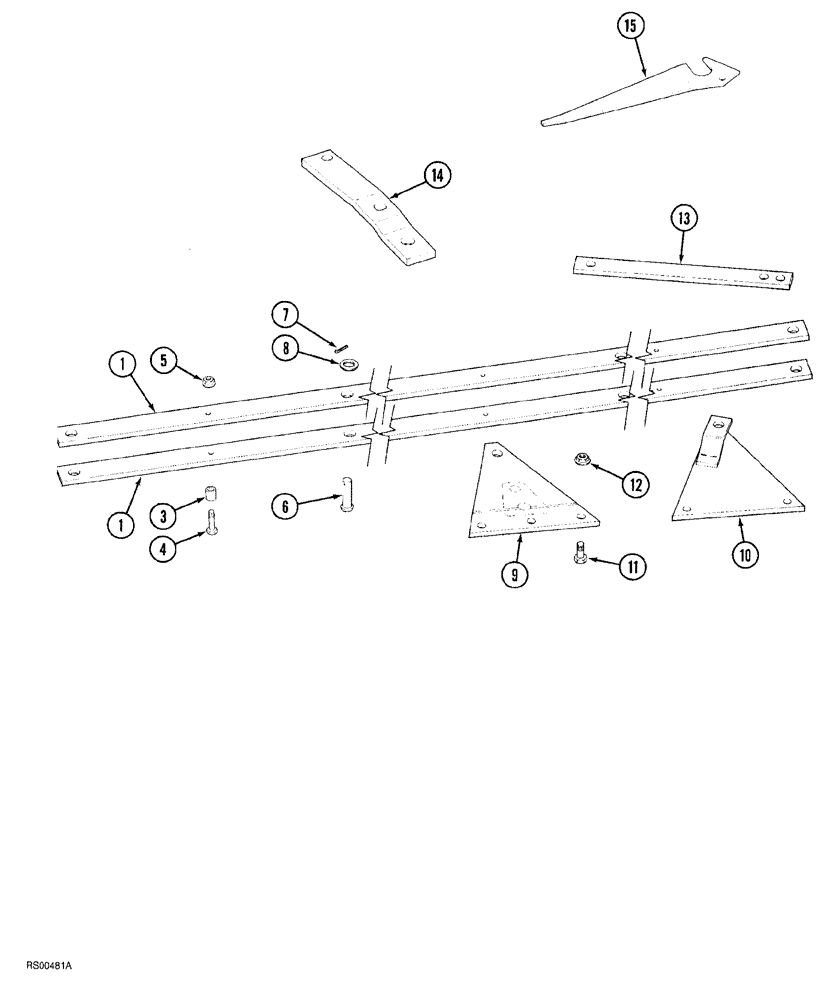

Запчасти Case IH 7500 (09-05) - VARI-WIDTH LINKAGE, IN THE FURROW PLOWS (09) - CHASSIS/ATTACHMENTS

1

1344556C1

BAR

parallel (4 furrow)

2шт.

1

1344557C1

BAR

parallel (5 furrow) (Shown)

2шт.

1

1344558C1

BAR

parallel (6 furrow)

2шт.

3

605210R1

SPACER,1/2" X-Strng Pipe x 1 1/8"

1/2 ID x 1-1/8 inch (4 furrow)

5шт.

3

605210R1

SPACER,1/2" X-Strng Pipe x 1 1/8"

1/2 ID x 1-1/8 inch (5 furrow)

7шт.

3

605210R1

SPACER,1/2" X-Strng Pipe x 1 1/8"

1/2 ID x 1-1/8 inch (6 furrow)

9шт.

4

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2 NC x 2-3/4 inch (4 furrow)

5шт.

4

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2 NC x 2-3/4 inch (5 furrow)

7шт.

4

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

hex, 1/2 NC x 2-3/4 inch (6 furrow)

9шт.

5

231-4218

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC (4 furrow)

5шт.

5

231-4218

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC (5 furrow)

7шт.

5

231-4218

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC (6 furrow)

9шт.

6

439-51644

HEADED PIN,1" x 2 3/4", G5

headed, 1 x 2-3/4 inch (4 furrow)

5шт.

6

439-51644

HEADED PIN,1" x 2 3/4", G5

headed, 1 x 2-3/4 inch (5 furrow)

6шт.

6

439-51644

HEADED PIN,1" x 2 3/4", G5

headed, 1 x 2-3/4 inch (6 furrow)

7шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

(4 furrow)

5шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

(5 furrow)

6шт.

7

432-1624

COTTER PIN,1/4" x 1 1/2"

(6 furrow)

7шт.

8

495-11106

WASHER,1", SAE

(flat, 1-1/16 x 2 x 1/8") (4 furrow)

5шт.

8

495-11106

WASHER,1", SAE

(flat, 1-1/16 x 2 x 1/8") (5 furrow)

6шт.

8

495-11106

WASHER,1", SAE

(flat, 1-1/16 x 2 x 1/8") (6 furrow)

7шт.

9

101870A1

PLATE

parallel, bent (4 furrow) (Replaces 131867C1)

4шт.

9

101870A1

PLATE

parallel, bent (5 furrow) (Replaces 131867C1)

5шт.

9

101870A1

PLATE

parallel, bent (6 furrow) (Replaces 131867C1)

6шт.

10

224286C1

LARGE PLATE

PLATE, LARGE front parallel, used on plows equipped with hydraulic hitch

1шт.

11

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

(4 furrow)

9шт.

11

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

(5 furrow)

12шт.

11

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

(6 furrow)

15шт.

12

231-42112

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC (4 furrow)

9шт.

12

231-42112

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC (5 furrow)

12шт.

12

231-42112

NUT,3/4"-10, GB

hex, self locking, 3/4 inch NC (6 furrow)

15шт.

13

224289C1

BAR

shift linkage, used on plows equipped with hydraulic hitch

1шт.

14

1344577C1

ARM

shifting, Not used on plows equipped with hydraulic hitch

1шт.

15

1344994C1

INDICATOR

ARM

1шт.
