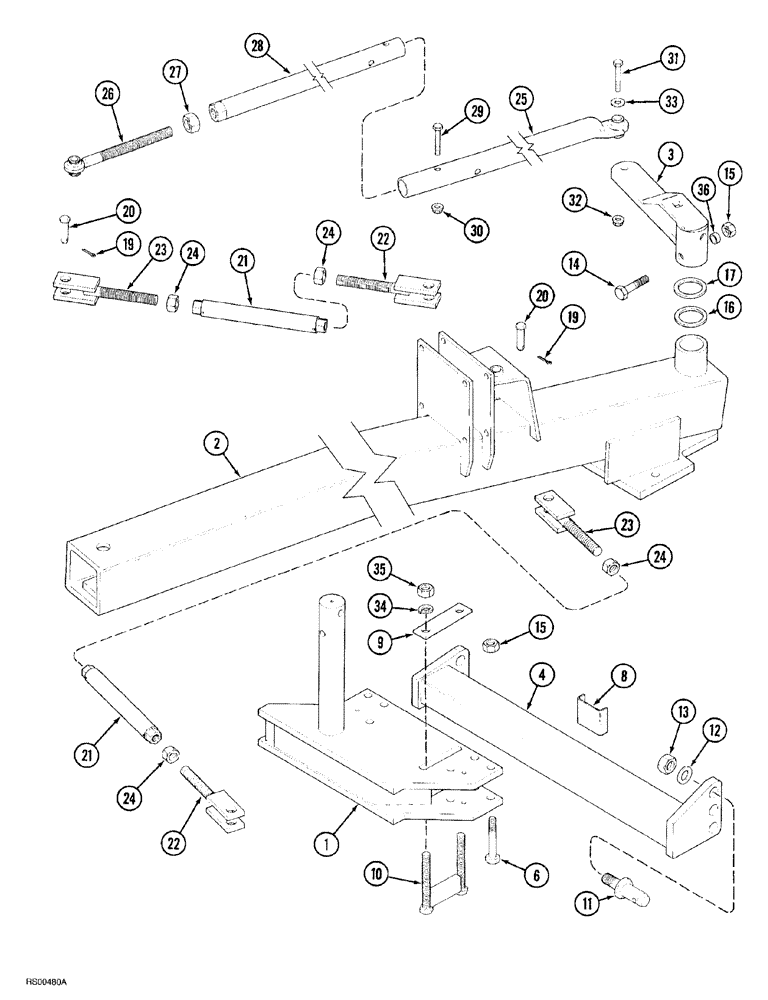

Запчасти Case IH 7500 (09-04) - RIGID HITCH AND STEERING LINKAGE, IN THE FURROW PLOWS (09) - CHASSIS/ATTACHMENTS

1

1344664C1

PIVOT ASSY.

crossbar

1шт.

2

REF

INSTRUCTION

FRAME pull (See Fig. 09-01)

1шт.

3

1344541C2

ARM ASSY.

front steering

1шт.

4

1344656C1

CROSSBAR

category II

1шт.

4

1344658C1

CROSSBAR

category III (Shown)

1шт.

6

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

hex, 3/4 NC x 5-1/2 inch, grade 8

4шт.

8

1344834C1

CLIP

wear

2шт.

9

1344829C1

BAR

bolt stop (Replaces 1344845C1)

1шт.

10

1985936C1

BOLT (MACHINE)

special

1шт.

11

472790R2

STUD

PIN hitch (Category II)

2шт.

11

483659R2

STUD

(Category III) (Shown)

2шт.

12

496-11119

WASHER,1 3/16" x 2 1/4" x .134" HDN

flat, 1-3/16 x 2-1/4 x 9/64 inch, hardened

2шт.

13

425-1118

NUT,1 1/8"-12, G5

hex, 1-1/8 inch NF

2шт.

14

426-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

hex, 3/4 NC x 4 inch, grade 8

2шт.

15

232-41112

NUT,3/4"-10, GC

6шт.

16

61625C1

WASHER

flat, 2-17/32 x 3-1/4 x 7/64 inch

1шт.

17

495-81231

WASHER,2 17/32" x 3 1/4" x .060"

flat, 2-17/32 x 3-1/4 x 1/16 inch

1шт.

19

432-1624

COTTER PIN,1/4" x 1 1/2"

4шт.

20

439-51644

HEADED PIN,1" x 2 3/4", G5

headed, 1 x 2-3/4 inch

4шт.

21

480249R1

TRUSS ROD

landing yoke (If equipped)

2шт.

22

1344919C1

CLEVIS

turnbuckle, left hand thread, left (If equipped)

2шт.

23

1344920C1

CLEVIS

turnbuckle, right hand thread, right (If equipped)

2шт.

24

425-1016

NUT,1"-8, G5

Hex (If equipped)

4шт.

25

1344913C1

TUBE

steering

1шт.

26

489858R2

LINK ASSY.

adjusting

1шт.

27

425-1016

NUT,1"-8, G5

Hex

1шт.

28

1256871C1

TUBE,1100 mm Length

steering, inside

1шт.

29

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

2шт.

30

231-4218

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC

2шт.

31

426-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

hex, 3/4 NC x 4 inch, grade 8

2шт.

32

230-42112

LOCK NUT,3/4"-10, GA

hex, self locking, 3/4 inch NC

2шт.

33

522473R1

WASHER

flat, 49/64 x 1-3/4 x 1/8 inch

2шт.

34

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

35

425-1012

NUT,3/4"-10, G5

2шт.

36

495827R1

SPACER,1" Tube x 1/2"

25/32 x 1/2 x 1 inch

2шт.
