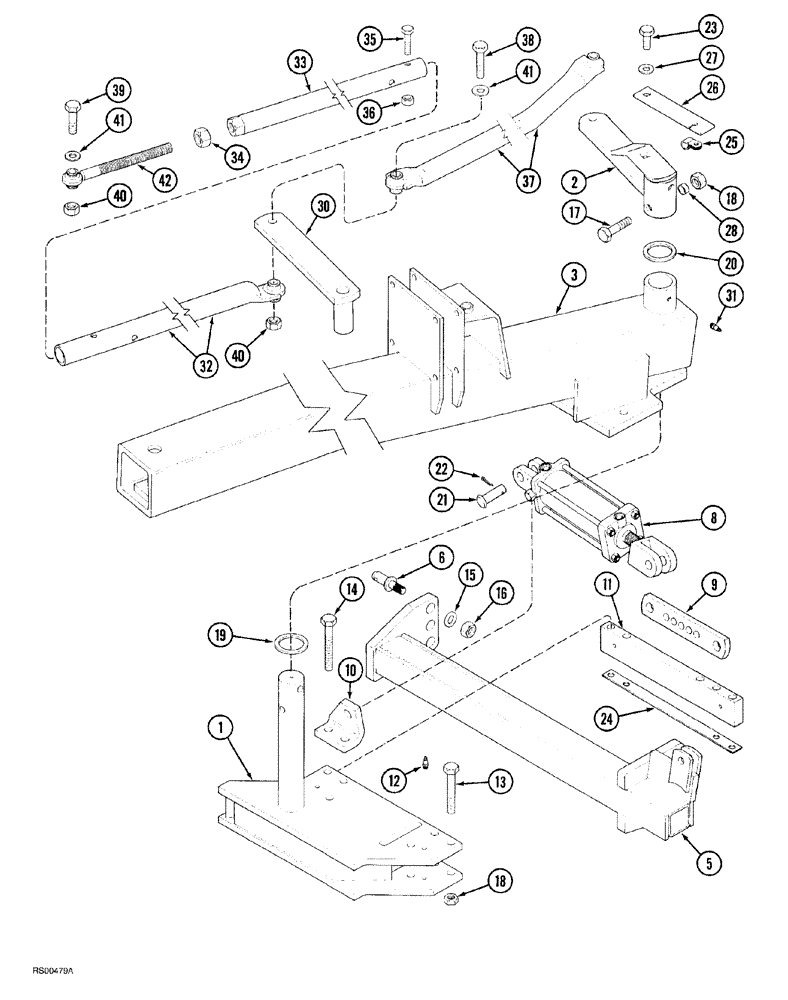

Запчасти Case IH 7500 (09-03) - HYDRAULIC HITCH AND STEERING LINKAGE, IN THE FURROW PLOWS (09) - CHASSIS/ATTACHMENTS

1

1344664C1

PIVOT ASSY.

crossbar

1шт.

2

1344541C2

ARM ASSY.

front steering

1шт.

3

224281C1

FUNNEL

FRAME Pull (See Fig. 09-01)

1шт.

5

1344836C1

CROSSBAR

category II (not used for 6 furrow)

1шт.

5

1344837C1

BAR ASSY.

CROSS, category III (Shown)

1шт.

6

472790R2

STUD

hitch (Category II)

2шт.

6

483659R2

STUD

(Category III) (Shown)

2шт.

8

87427820

CYLINDER

Hydraulic (See Fig. 08-07)

1шт.

9

122754C2

BAR

shift adjustment

1шт.

10

122734C1

SUPPORT

cylinder anchor

1шт.

11

1344835C1

BAR

wear

1шт.

12

219-86

LUBE NIPPLE,1/8" NPTF

4шт.

13

426-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

hex, 3/4 NC x 5-1/2 inch, GR 8

2шт.

14

426-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

15

496-11119

WASHER,1 3/16" x 2 1/4" x .134" HDN

flat, 1-3/16 x 2-1/4 x 9/64 inch, hardened

2шт.

16

425-1118

NUT,1 1/8"-12, G5

hex, 1-1/8 inch NF

2шт.

17

426-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

Hex, 3/4 NC x 4 inch, GR 8

2шт.

18

232-41112

NUT,3/4"-10, GC

7шт.

19

61625C1

WASHER

flat, 2-17/32 x 3-1/4 x 7/64 inch

1шт.

20

495-81052

WASHER,0.91" ID x 1.25" OD x 0.12" Thk

flat, 2-17/32 x 3-1/4 x 1/16 inch

1шт.

21

810751C1

PIN

1 x 3-1/2 inch

2шт.

22

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

23

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

24

122738C1

SHIM

shifting

1шт.

25

299615C1

CLAMP

P-type, 5/8 inch ID

2шт.

26

131627C2

BRACKET

mounting

1шт.

27

522473R1

WASHER

flat, 49/64 x 1-3/4 x 1/8 inch

2шт.

28

495827R1

SPACER,1" Tube x 1/2"

25/32 x 1/2 x 1 inch

2шт.

30

224002C1

ARM ASSY.

center steering (not used with 4 furrow)

1шт.

31

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

32

1256873C1

TUBE

steering, outside rear (5 and 6 furrow)

1шт.

33

1256871C1

TUBE,1100 mm Length

steering, inside rear (5 and 6 furrow)

1шт.

34

425-1016

NUT,1"-8, G5

Hex

1шт.

35

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

2шт.

36

231-4218

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC

2шт.

37

1256869C1

TUBE,3203 mm Length

steering, front (5 and 6 furrow)

1шт.

38

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

39

426-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

hex, 3/4 NC x 4 inch, GR 8

2шт.

40

232-41112

NUT,3/4"-10, GC

3шт.

41

522473R1

WASHER

flat, 49/64 x 1-3/4 x 1/8 inch

3шт.

42

489858R2

LINK ASSY.

adjusting

1шт.
