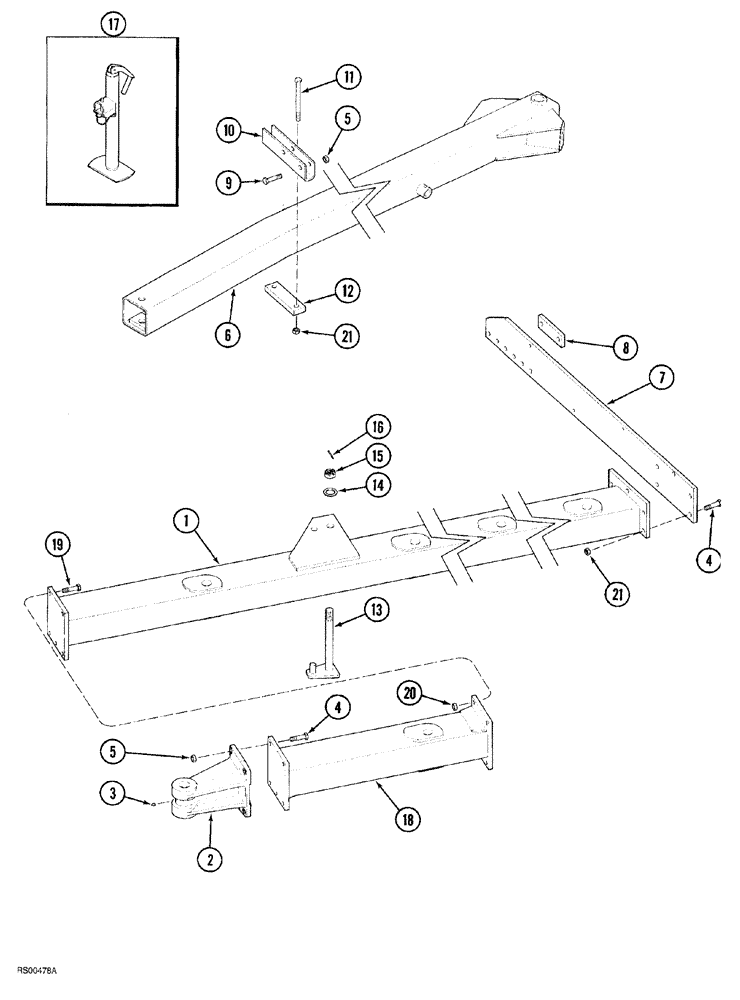

Запчасти Case IH 7500 (09-02) - MAIN FRAME, ON THE LAND PLOWS (09) - CHASSIS/ATTACHMENTS

1

1986230C1

FRAME

Main (five furrow) (Shown)

1шт.

1

1986231C1

FRAME

Main (six furrow)

1шт.

2

224244C1

BRACKET

Main frame, rear

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

4

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

5шт.

4

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

10шт.

5

232-41112

NUT,3/4"-10, GC

(5-6 furrow)

5шт.

5

232-41112

NUT,3/4"-10, GC

(6/7 furrow)

10шт.

6

1969344C1

FRAME

Pull

1шт.

7

1969346C1

PLATE

Spreader

1шт.

8

543240R1

SPACER

Spreader

1шт.

9

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

Hex, 3/4 NC x 3 inch

2шт.

10

1969347C1

MOUNTING PARTS

Pull frame

1шт.

11

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

Hex, 3/4 NC x 8-1/2 inch

2шт.

12

1969348C1

BAR

Pull frame mounting

1шт.

13

224173C1

PIN ASSY.

Pull frame

1шт.

14

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

Flat, 1-17/32 x 2-1/4 x 3/64 inch

2шт.

15

519250R1

SLOTTED NUT

Hex, slotted, 1-1/4 inch NF

1шт.

16

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

17

121557A1

JACK ASSY.

Hitch

1шт.

18

224094C1

FRAME

Extension (If equipped)

1шт.

19

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

(If equipped)

5шт.

20

232-41112

NUT,3/4"-10, GC

If equipped

5шт.

21

231-42112

NUT,3/4"-10, GB

Hex, self locking, 3/4 inch NC

4шт.
