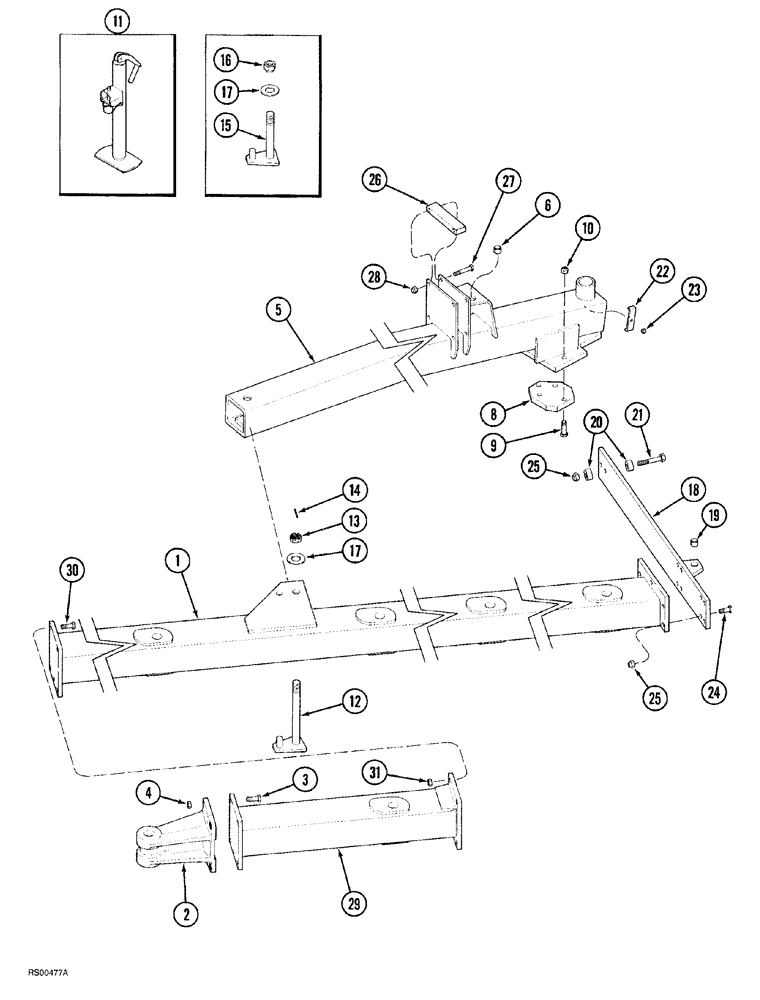

Запчасти Case IH 7500 (09-01) - MAIN FRAME, IN THE FURROW PLOWS (09) - CHASSIS/ATTACHMENTS

1

1986229C1

FRAME

main (four furrow)

1шт.

1

1986230C1

FRAME

main (five furrow) (Shown)

1шт.

1

1986231C1

FRAME

main (six furrow)

1шт.

2

224244C1

BRACKET

main frame, rear

1шт.

3

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

8шт.

4

232-41112

NUT,3/4"-10, GC

8шт.

5

224281C1

FUNNEL

FRAME pull

1шт.

6

64601C1

BUSHING

tension

1шт.

8

1256818C1

LARGE PLATE

PLATE, LARGE stop

1шт.

9

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

3шт.

10

232-41112

NUT,3/4"-10, GC

3шт.

11

121557A1

JACK ASSY.

hitch

1шт.

12

224173C1

PIN ASSY.

pull frame (5 and 6 furrow)

1шт.

13

519250R1

SLOTTED NUT

hex, slotted, 1-1/4 inch NF (5 and 6 furrow)

1шт.

14

432-828

COTTER PIN,1/8" x 1 3/4"

(5 and 6 furrow)

1шт.

15

1976121C1

PIN ASSY.

pull frame (4 furrow)

1шт.

16

231-41120

NUT,1 1/4"-7, GB

1шт.

17

495-81207

WASHER,1.28" ID x 2.5" OD x 0.06" Thk

flat, 1-9/32 x 2-1/2 x 1/16 inch

2шт.

18

1284324C1

BAR

spreader (5 and 6 furrow) (Inc. REF 19)

1шт.

18

224257C1

BAR ASSY.

spreader (4 furrow)

1шт.

19

64601C1

BUSHING

tension

1шт.

20

122695C1

SPACER

pull frame stop (5 and 6 furrow)

2шт.

21

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

hex, 3/4 NC x 4 inch

2шт.

22

129888C2

CLAMP

hose

1шт.

23

231-4118

LOCK NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC

1шт.

24

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

25

230-42112

LOCK NUT,3/4"-10, GA

hex, self locking, 3/4 inch NC

1шт.

26

224288C1

BAR

wear

2шт.

27

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.

28

1256884C1

NUT

hex flange, locking, special, 5/8 inch NC, GR8

4шт.

29

224094C1

FRAME

extension (If equipped)

1шт.

30

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

(If equipped)

5шт.

31

232-41112

NUT,3/4"-10, GC

If equipped

5шт.
