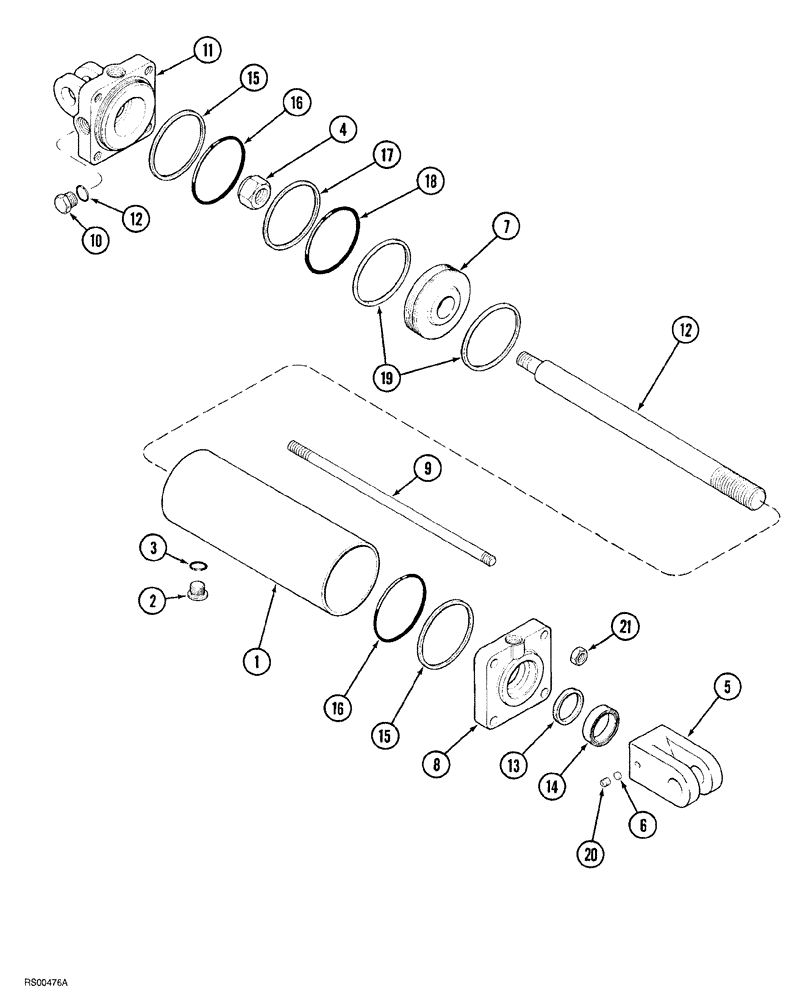

Запчасти Case IH 7500 (08-08) - HYDRAULIC CYLINDER, PHASING, 3-1/2 INCH BORE X 8 INCH STROKE (08) - HYDRAULICS

87427820

CYLINDER

hydraulic, Phasing, 3-1/2 (89 mm) ID x 8 inch (203 mm) stroke

1шт.

1

145424C2

HYD TUBE,3.5" ID, 10.167" Length

cylinder

1шт.

2

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2" OD (also included in seal kit)

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

145233C1

CLEVIS,1/4" - 12

rod end

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD insert

1шт.

7

85179C1

PISTON

cylinder

1шт.

8

1272826C1

HEAD

cylinder, front

1шт.

9

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

TIE ROD Cylinder

4шт.

10

214389

PLUG,3/4" - 16 ORB

1шт.

11

1272825C1

HEAD

cylinder, two ports, rear

1шт.

12

145231C1

PISTON ROD

1шт.

84919C2

GASKET KIT

(Inc; REF 13-19)

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL piston rod

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER backup

2шт.

16

NSS

NOT SOLD SEPARAT

O-RING, 3-1/4 x 3-1/2 inch

2шт.

17

NSS

NOT SOLD SEPARAT

RING piston seal

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING, 3 x 3-3/16 inch

1шт.

19

NSS

NOT SOLD SEPARAT

RING piston wear

2шт.

20

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

Set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

21

425-108

NUT,1/2" - 13, Gr 5

4шт.
