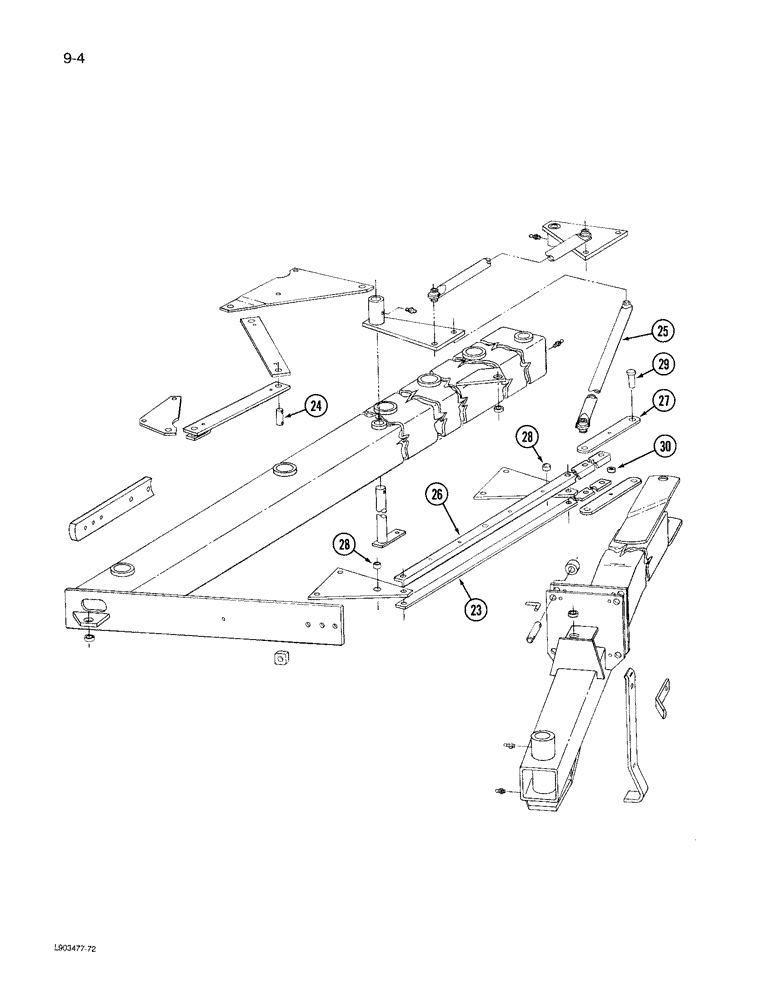

Запчасти Case IH 735 (9-04) - MAIN FRAME

23

122715C2

BAR

- parallel (5 furrow)

1шт.

23

122975C2

BAR

- parallel (6 furrow)

1шт.

Use a quantity of 2 on machines built before 1982.

1шт.

HA4457

SPACER

- 1/2 x 5/8 inch (5 furrow)

6шт.

HA4457

SPACER

- 1/2 x 5/8 inch (6 furrow)

8шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(5 furrow) Hex, 1/2"-13 x 2", G5

6шт.

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(6 furrow) Hex, 1/2"-13 x 2", G5

8шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC (5 furrow)

6шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC (6 furrow)

8шт.

22983R1

HEADED PIN,1" x 2"

PIN - 1 x 2 inch (5 furrow)

4шт.

22983R1

HEADED PIN,1" x 2"

PIN - 1 x 2 inch (6 furrow)

5шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 3/32" (5 furrow)

8шт.

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 3/32" (6 furrow)

10шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2" (5 furrow)

8шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2" (6 furrow)

9шт.

24

122751C1

PIN

- pull frame linkage

1шт.

25

122769Cl

ROD - steering, front

1шт.

26

224264C1

ANGLE

- diagonal drive (5 furrow)

1шт.

Used on machines built after 1982.

1шт.

26

224265C1

ANGLE

- diagonal drive (6 furrow)

1шт.

Used on machines built after 1982.

1шт.

27

224267C1

BAR

- steering link

2шт.

Used on machines built after 1982.

1шт.

28

64601C1

BUSHING

- tension

1шт.

Used on machines built after 1982.

1шт.

29

480255R1

HEADED PIN,1" x 2 3/16"

PIN - 1 x 2-3/16 inch

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

30

M22613

SPACER,1/2" X-Strng Pipe x 1"

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.
