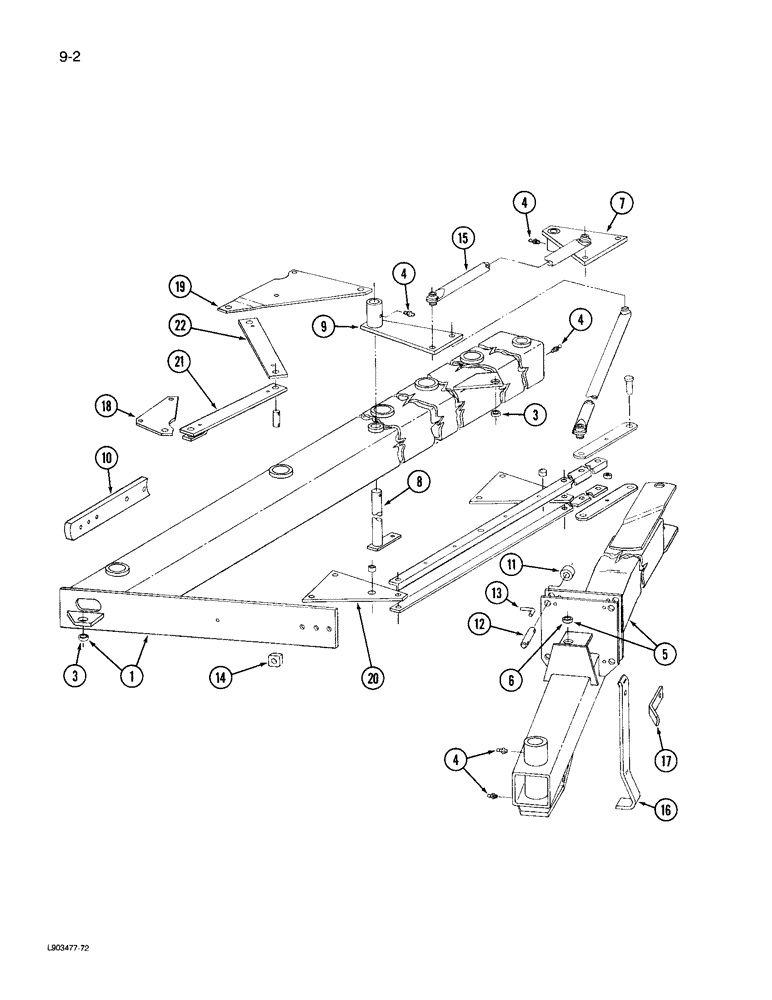

Запчасти Case IH 735 (9-02) - MAIN FRAME

1

131682C91

FRAME

- main (5 furrow)

1шт.

1

131683C91

FRAME

- main (6 furrow)

1шт.

3

64601C1

BUSHING

- tension

2шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4 inch NF

5шт.

5

122655C2

FRAME

- pull

1шт.

6

64601C1

BUSHING

- tension

1шт.

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

1шт.

7

224122C1

PLATE

- rear steering

1шт.

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

8

224120C1

ROD ASSY.

PIVOT - center

1шт.

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch

1шт.

32-1644

COTTER PIN,1/4" x 2 3/4"

Pin, Split (Cotter), 1/4" x 2 3/4"

1шт.

25-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex slotted, 1-1/2 inch NC

1шт.

9

122761C1

BAR

- center steer arm

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

474848R1

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

1шт.

10

122750C1

SUPPORT

BAR - colter (Use 1 per furrow)

1шт.

426-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- hex, 3/4 NC x 2-3/4 inch, Grade 8 (Use 2 per furrow)

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, two way, 3/4 inch NC (Use 2 per furrow)

1шт.

11

122694C1

SPACER

TUBE - pull frame roller

4шт.

12

122693C1

PIN

- pull frame roller

4шт.

13

471323R1

LINCH PIN

PIN - pivot lock

4шт.

432-2428

COTTER PIN,3/8" x 1 3/4"

Pin, Split (Cotter), 3/8" x 1 3/4"

4шт.

14

122695C1

SPACER

- pull frame stop

2шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x 4 inch

1шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, two way, 3/4 inch NC

1шт.

15

122755C1

ROD

- center steering (5 furrow)

1шт.

15

122991C1

ROD

- center steering (6 furrow)

1шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

4шт.

522473R1

WASHER

- flat, 49/64 x 1-3/4 x 1/8 inch

4шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, two way, 3/4 inch NC

4шт.

16

544099R1

BAR

- stand

1шт.

411-1040

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT - round head square neck, 5/8 NC x 2-1/2 inch

1шт.

17

544098R1

SUPPORT

HANDLE - stand

1шт.

18

122688C1

PLATE

- parallel, front

1шт.

19

122689C1

PLATE

- parallel, main (5 furrow)

1шт.

19

122988C1

PLATE

- parallel, main (6 furrow)

1шт.

20

122690C2

PLATE

- parallel, rear (5 furrow)

3шт.

20

122690C2

PLATE

- parallel, rear (6 furrow)

4шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch (5 furrow)

10шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch (6 furrow)

12шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, two way, 3/4 inch NC (5 furrow)

10шт.

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex lock, two way, 3/4 inch NC (6 furrow)

12шт.

21

122697C1

BAR

- linkage, front (5 furrow)

1шт.

21

122980C1

BAR

- linkage, front (6 furrow)

1шт.

22

122699C1

BAR

- linkage, main (5 furrow)

1шт.

22

122983C1

BAR

- linkage, main (6 furrow)

1шт.

480255R1

HEADED PIN,1" x 2 3/16"

PIN - 1 x 2-3/16 inch

2шт.
