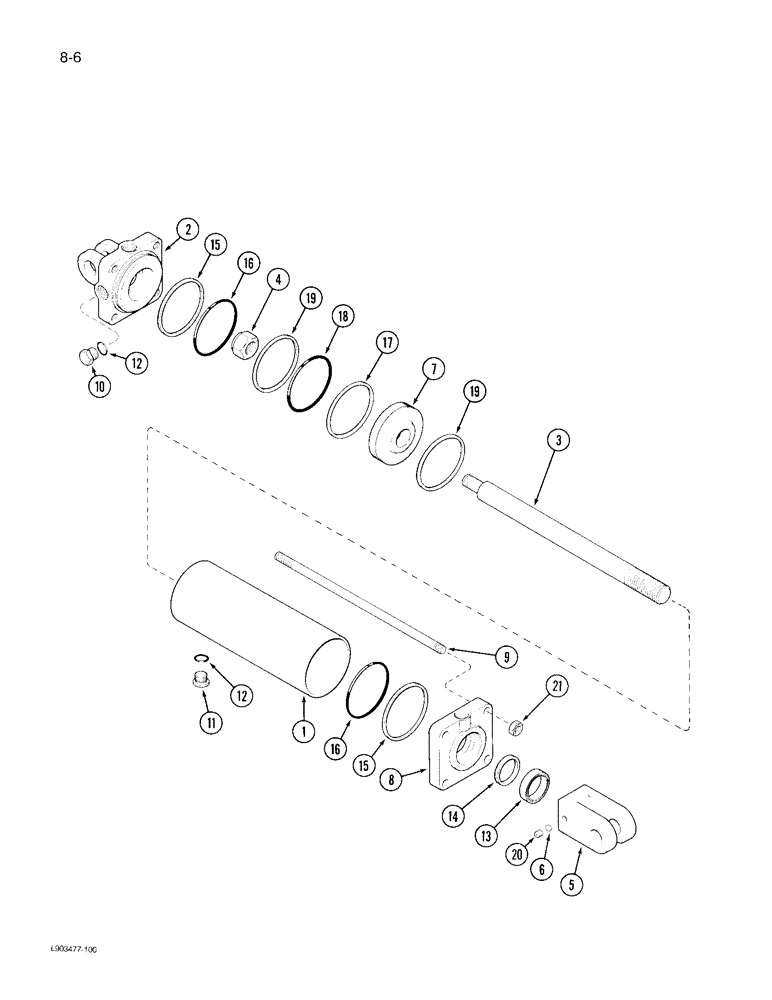

Запчасти Case IH 735 (8-6) - HYDRAULIC CYLINDER, 3-1/2 INCH BORE X 8 INCH STROKE

1282323C92

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, 3-1/2 x 8 inch

1шт.

1

145424C2

HYD TUBE,3.5" ID, 10.167" Length

BODY - cylinder

1шт.

2

1923599C1

HEAD

- cylinder rear

1шт.

3

145231C1

PISTON ROD

ROD - piston

1шт.

4

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

5

145233C1

CLEVIS,1/4" - 12

- rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

7

85179C1

PISTON

- cylinder

1шт.

8

1272826C1

HEAD

- cylinder, front

1шт.

9

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

ROD - cylinder retaining

4шт.

10

9410359

PLUG

- hex, 3/4-16 inch o-ring boss

1шт.

11

224582C1

PLUG

- hex socket, 3/4-16 inch, o-ring boss

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

2шт.

Part of O-Ring cylinder repair kit 84919C2

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of O-Ring cylinder repair kit 84919C2

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of O-Ring cylinder repair kit 84919C2

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

Part of O-Ring cylinder repair kit 84919C2

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 x 3-1/2 inch

2шт.

Part of O-Ring cylinder repair kit 84919C2

1шт.

17

NSS

NOT SOLD SEPARAT

RING - piston seal

1шт.

Part of O-Ring cylinder repair kit 84919C2

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 3 x 3-3/16 inch

1шт.

Part of O-Ring cylinder repair kit 84919C2

1шт.

19

NSS

NOT SOLD SEPARAT

RING - piston wear

2шт.

Part of O-Ring cylinder repair kit 84919C2

1шт.

20

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW - set, hex socket, 3/8 NC x 3/8 inch

1шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

84919C2

GASKET KIT

KIT - cylinder repair, o-ring, Includes: Ref. 12 thru 19

1шт.
