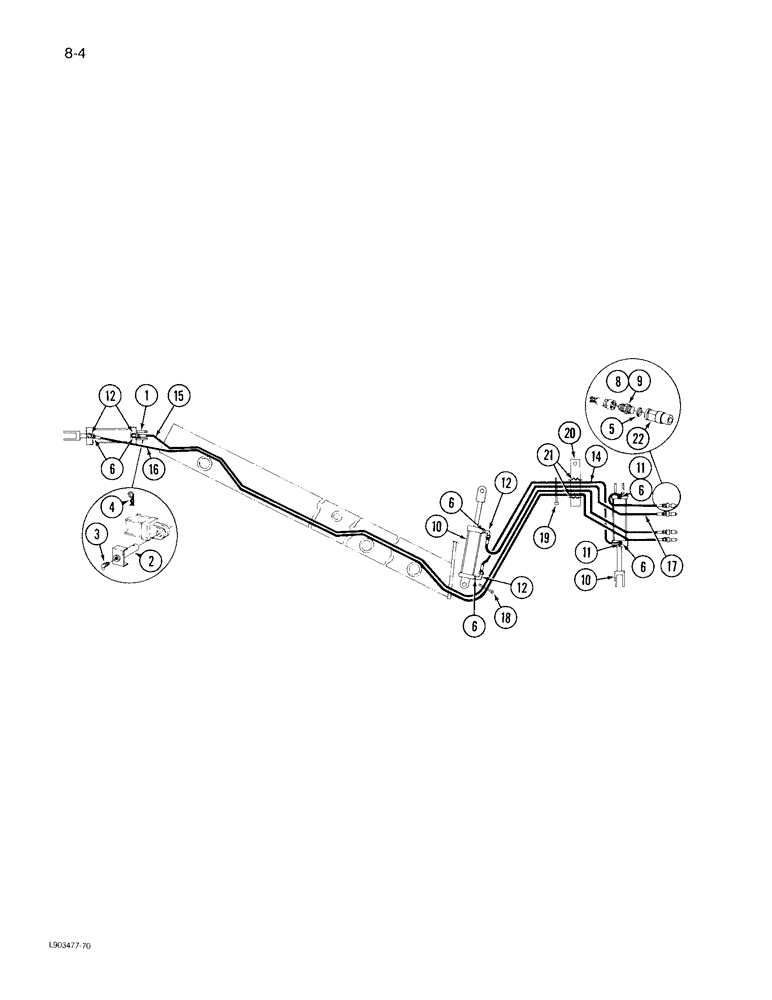

Запчасти Case IH 735 (8-4) - HYDRAULIC EQUIPMENT, PLOWS BUILT AFTER 1982

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3 x 8 inch (See page 8-9)

1шт.

2

1256856C1

PIN

- non-rotating

1шт.

3

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

4

432-1220

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER) 3/16" x 1 1/4"

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

6шт.

8

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch o-ring boss

3шт.

9

92424C1

RESTRICTOR

ADAPTER - one way orifice (Used with 1284296C1 Hose)

1шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 x 8 inch (See page 8-7)

2шт.

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - clevis, 1 x 3-1/4 inch

5шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

5шт.

11

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch o-ring boss

2шт.

12

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj o-ring

4шт.

14

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

HOSE - hydraulic, 3/8 x 55 inch long

2шт.

Also order two nuts 9403529 and two reducers 9403402

1шт.

15

129673C2

HOSE

- hydraulic, 3/8 x 280 inch long, 5 furrow plows

2шт.

Also order two nuts 9403529 and two reducers 9403402

1шт.

15

1284299C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 320 inch long, 6 furrow plows

1шт.

Also order two nuts 9403529 and two reducers 9403402

1шт.

16

1284302C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 330 inch long, 6 furrow plows

1шт.

Also order two nuts 9403529 and two reducers 9403402

1шт.

16

1284264C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 290 inch long, 5 furrow plows

1шт.

Also order two nuts 9403529 and two reducers 9403402

1шт.

17

1284296C1

HYDRAULIC HOSE,9.52 mm ID x 1905.00 mm

9.52 mm ID x 1905.00 mm

1шт.

Also order two nuts 9403529 and two reducers 9403402

1шт.

18

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, nylon, 7 inch long

4шт.

19

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch long

3шт.

20

131627C1

SUPPORT

BRACKET - hose mounting

1шт.

21

515030R1

CLAMP

- hose

2шт.

433-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/4 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 5/64 inch

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

22

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread

1шт.

22

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type

1шт.

22

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8-14 thread

1шт.

22

1285718C2

QUICK MALE COUPLING

- self sealing male, 3/4-16 thread (ISO Standard)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 3/4-16 x 7/8-14 thread

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 7/8-14 x 3/4-16 thread

1шт.

1282459C1

PACKAGE

KIT - coupler tag, color coded

1шт.
