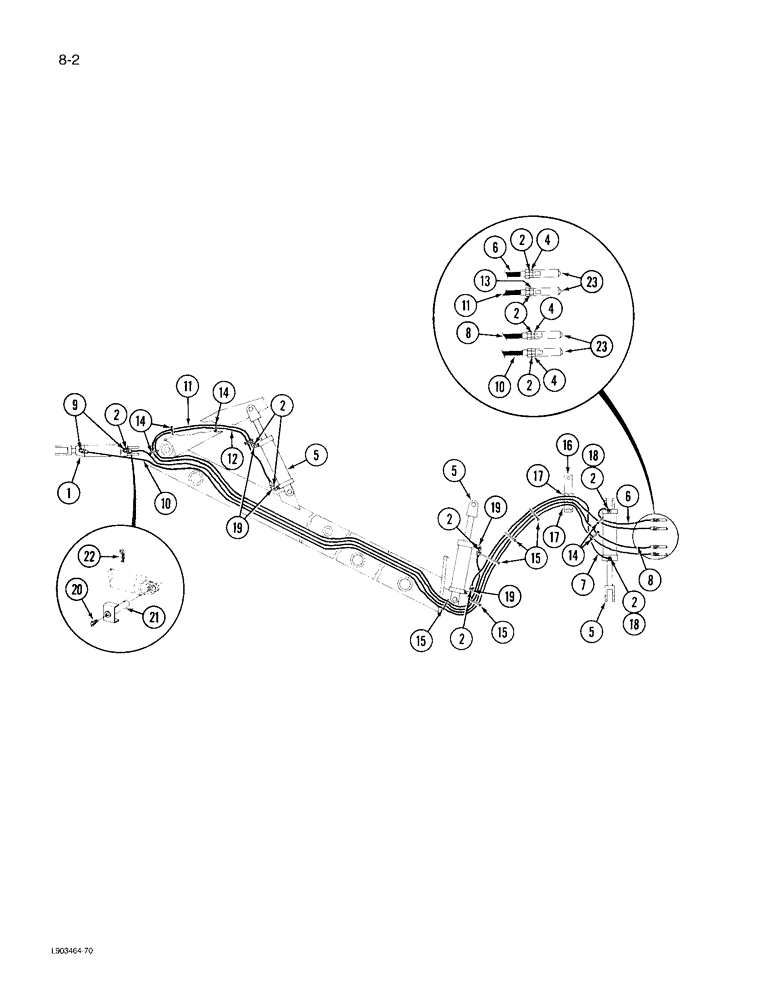

Запчасти Case IH 735 (8-2) - HYDRAULIC EQUIPMENT, PLOWS BUILT FROM 1978 THROUGH 1982

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3 x 8 inch (See page 8-9)

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

12шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - 9/16-18 flare x 3/4-16 inch o-ring boss

3шт.

5

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 x 8 inch (See page 8-7)

3шт.

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - clevis, 1 x 3-1/4 inch

6шт.

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

6шт.

6

1284301C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 45 inch long (See note)

1шт.

Also order two nuts 9403529 and two reducers 9403402

1шт.

7

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

HOSE - hydraulic, 3/8 x 55 inch long

1шт.

8

129673C2

HOSE

- hydraulic, 3/8 x 280 inch long (5 furrow plows) (See note)

1шт.

Also order two nuts 9403529 and two reducers 9403402

1шт.

8

1284299C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 320 inch long (6 furrow plows) (See note)

1шт.

Also order two nuts 9403529 and two reducers 9403402

1шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj o-ring boss

2шт.

10

1284264C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 290 inch long (5 furrow plows) (See note)

1шт.

Also order two nuts 9403529 and two reducers 9403402

1шт.

10

1284302C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 330 inch long (6 furrow plows) (See note)

1шт.

Also order two nuts 9403529 and two reducers 9403402

1шт.

11

131731C1

HYDRAULIC HOSE

HOSE - hydraulic, 1/2 x 300 inch long (5 furrow plows)

1шт.

11

131729C1

HOSE

- hydraulic, 1/2 x 342 inch long (6 furrow plows)

1шт.

12

58767C1

HOSE

- hydraulic, 1/2 x 242 inch long (5 furrow plows)

1шт.

12

129673C2

HOSE

- hydraulic, 3/8 x 280 inch long (6 furrow plows) (See note)

1шт.

Also order two nuts 9403529 and two reducers 9403402

1шт.

13

55565C1

UNION

ADAPTER - special, 1/16 inch orifice

1шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

6шт.

15

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

5шт.

16

131627C1

SUPPORT

BRACKET - hose mounting

1шт.

17

515030R1

CLAMP

- hose

2шт.

27451R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 5

BOLT - round head square neck, 3/8 NC x 2-1/4 inch

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

1шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

18

384539R1

HYD CONNECTOR,7/8"-14, 37 Degree x 3/4"-16, O-Ring

ADAPTER - short, 3/4-16 inch o-ring boss x 7/8 inch flare

2шт.

19

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj o-ring

4шт.

20

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

21

1256856C1

PIN

- non-rotating

1шт.

22

432-1220

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER) 3/16" x 1 1/4"

1шт.

23

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread

1шт.

23

544787R91

COUPLING, BREAK AWAY

COUPLER - hose, male, 7/8-14 thread self sealing type

1шт.

23

1272399C2

QUICK MALE COUPLING

COUPLING ASSEMBLY - self sealing male, 7/8-14 thread

1шт.

23

1285718C2

QUICK MALE COUPLING

- self sealing male, 3/4-16 thread (ISO Standard)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

218-5261

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 3/4-16 x 7/8-14 thread

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

BUSHING - reducer, 7/8-14 x 3/4-16 thread

1шт.

1282459C1

PACKAGE

KIT - coupler tag, color coded

1шт.
