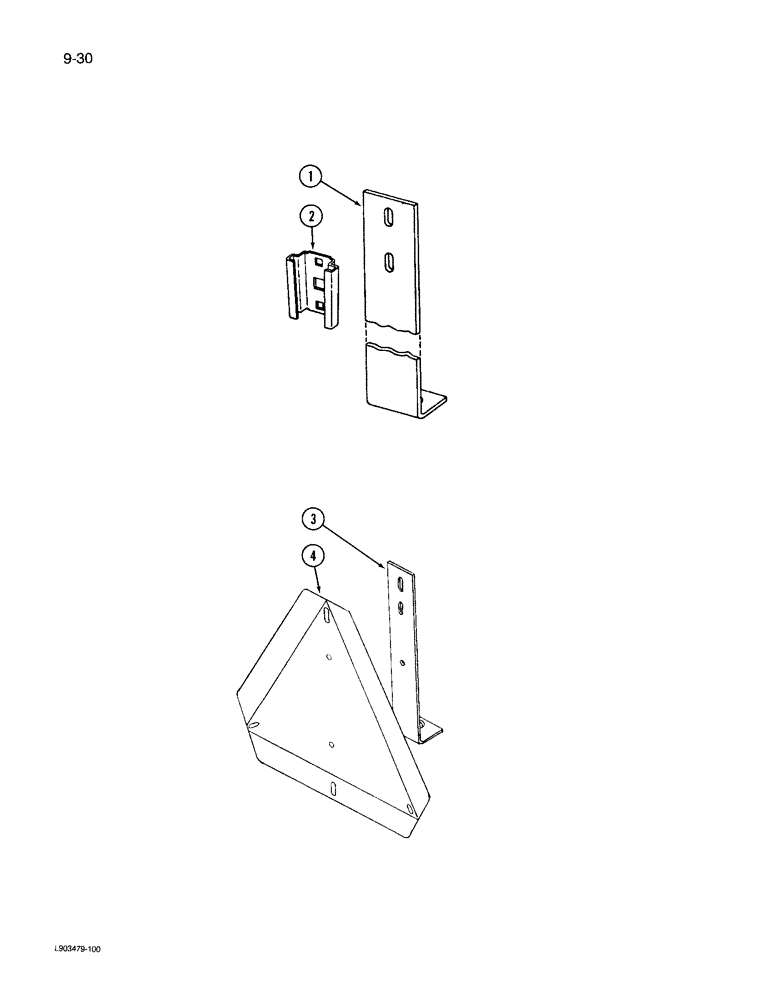

Запчасти Case IH 735 (9-30) - SMV EMBLEM

1

131946C1

SUPPORT

BRACKET - tail light support

1шт.

Used on machines built prior to June 1983.

1шт.

2

A59457

BRACKET

SOCKET - SMV emblem

1шт.

Used on machines built prior to June 1983.

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

1шт.

Used on machines built prior to June 1983.

1шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

1шт.

Used on machines built prior to June 1983.

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Used on machines built prior to June 1983.

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

Used on machines built prior to June 1983.

1шт.

3

131946C1

SUPPORT

BRACKET - tail light support

1шт.

4

202013C2

TRAFFIC SIGN

EMBLEM - slow moving vehicle

1шт.

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

- round head, No. 10-32 x 1/2 inch

2шт.

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

2шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

225-14210

NUT,#10-32

2шт.
