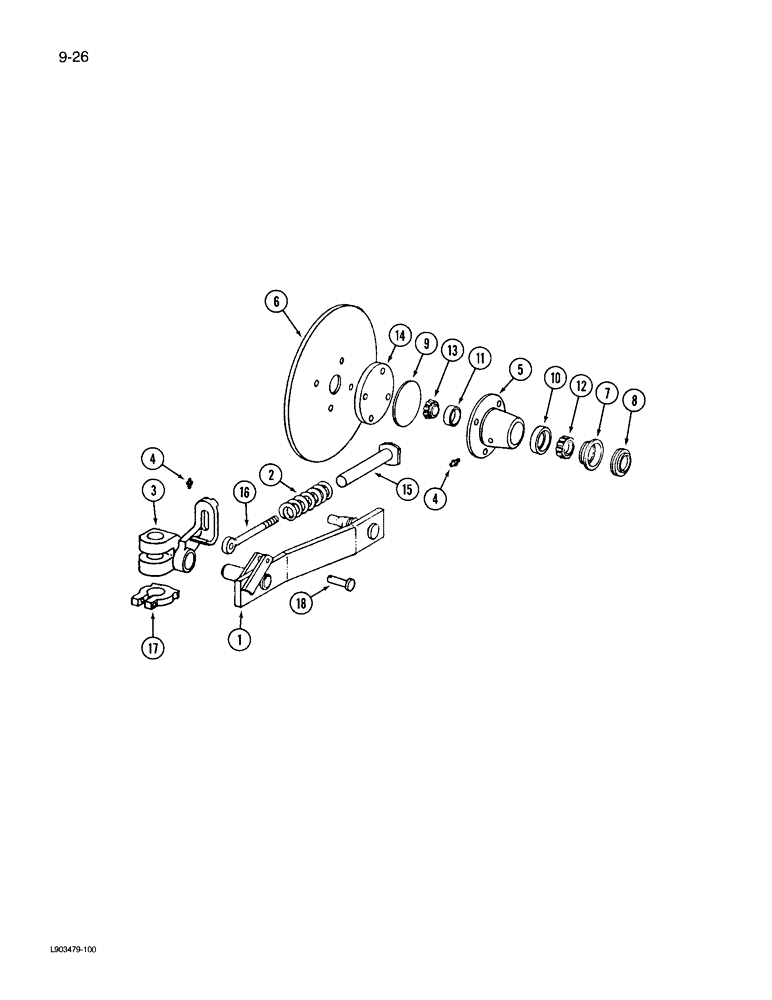

Запчасти Case IH 735 (9-26) - ROLLING COLTER, HIGH LIFT SPRING CUSHION TYPE WITH 22 INCH DISC
№
Артикул
Название
Примечание
Количество
1
112535C1
ARM
- colter
1шт.
432-1628
COTTER PIN,1/4" x 1 3/4"
Pin, Split (Cotter), 1/4" x 1 3/4"
1шт.
495-81203
WASHER,1 9/32" x 2" x .120"
- flat, 1-9/32 x 2 x 7/32 inch
1шт.
69442D
NUT
- slotted hex, 3/4 inch NF
1шт.
369857R1
WASHER,20.7mm ID x 31.75mm OD x 3mm Thk
- flat, hardened
1шт.
432-1020
COTTER PIN,5/32" x 1 1/4"
PIN, SPLIT (COTTER), 5/32" x 1 1/4"
1шт.
2
112536C1
SPRING
- cushion
1шт.
3
122520C1
SUPPORT
- colter mounting
1шт.
4
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING - grease, straight, 1/4 inch NF
2шт.
5
122711C1
HUB
- wheel
1шт.
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
4шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
4шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
4шт.
6
112538C1
DISC
- colter, 22 inch plain
1шт.
6
122567C1
DISC
- colter, 22 inch ripple edge
1шт.
7
472222R1
SLEEVE
- oil seal
1шт.
8
472221R91
SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk
- oil
1шт.
9
41-3044
PLUG,Exp, 2 3/4"
- wheel hub, 2-3/4 inch
1шт.
10
B12408
BEARING CUP,59.156 mm OD x 11.862 mm
CUP - bearing
1шт.
11
651814R1
BEARING CUP
CUP - bearing
1шт.
12
B12409
BEARING, ROLLER,31.763 mm ID x 16.84 mm
CONE - bearing
1шт.
13
651815R91
BEARING ASSY,7.508" ID x 17.82" OD x 6"
CONE - bearing
1шт.
13
651815R91GV
BEARING CONE
Value, Cone Bearing
1шт.
14
112524C1
COVER
- reinforcing plate
1шт.
15
109058C1
TUBE,16 - 22 mm ID, 35 mm OD
- spring adjusting
1шт.
16
131669C1
BOLT
- eye
1шт.
17
112844C1
COLLAR CLAMP
CLAMP - colter stop
1шт.
113-319
BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5
1шт.
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
1шт.
425-107
NUT,7/16"-14, G5
- hex, 7/16 inch NC
1шт.
432-2036
COTTER PIN,5/16" x 2 1/4"
Pin, Split (Cotter), 5/16" x 2 1/4"
1шт.
18
21806R1
HEADED PIN,1/2" x 1 3/4"
PIN - clevis, 1/2 x 1-3/4 inch
1шт.
432-1220
COTTER PIN,3/16" x 1 1/4"
3/16" x 1 1/4"
1шт.
Выбрано товаров: 33
