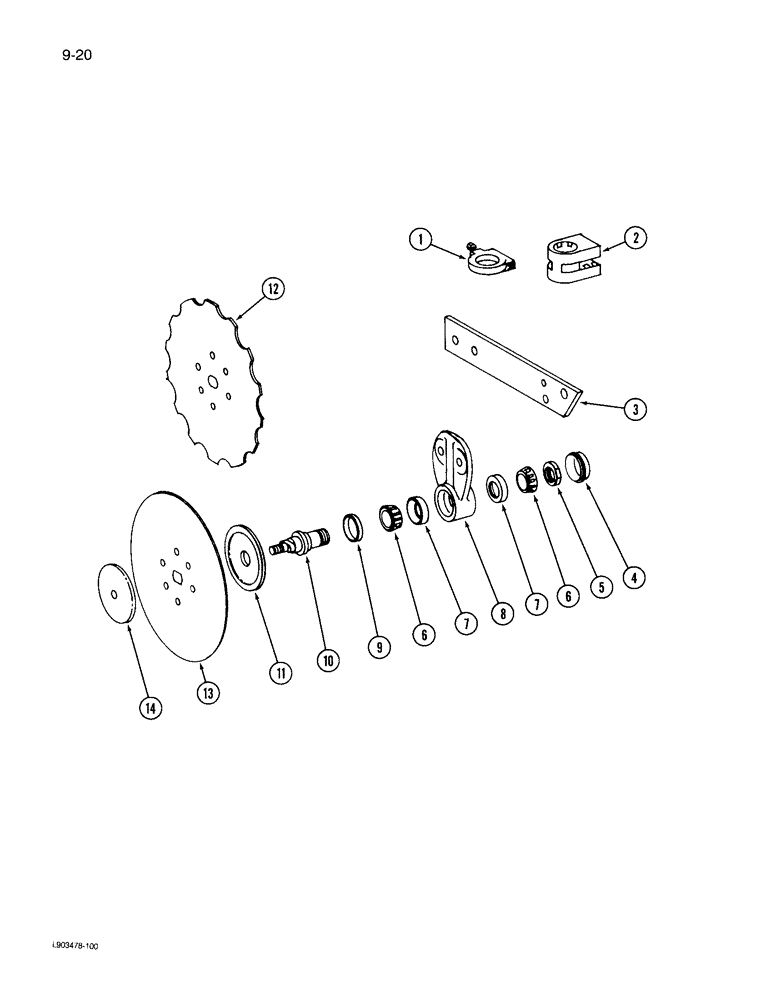

Запчасти Case IH 735 (9-20) - ROLLING COLTER, SHEAR BOLT TYPE WITH 20 INCH DISC

1

523345R21

COLLAR CLAMP

COLLAR ASSEMBLY - stop

1шт.

485-15020

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

SCREW - square head cup point, set, 1/2 NC x 1-1/4 inch

1шт.

2

462273R3

SUPPORT ASSY.

BEARING - colter arm, right

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

1шт.

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

3

131517C92

LEVER

ARM - colter

1шт.

M906

HEADED PIN,7/16" x 1 1/8"

PIN - clevis, 7/16 x 1-1/8 inch

1шт.

32-1216

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

549827R92

HUB CAP

SPINDLE ASSEMBLY - colter, Includes: Ref. 4 thru 8, 9 and 10

1шт.

4

T23707

CAP

- hub

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

5

519250R1

SLOTTED NUT

- hex slotted, 1-1/4 inch NF

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

6

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing

2шт.

Part of colter spindle assembly P/N 549827R92

1шт.

7

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing

2шт.

Part of colter spindle assembly P/N 549827R92

1шт.

8

541482R1

BEARING HOUSING,2.3275" ID x 3" OD x 2.44"

HOUSING - bearing

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

472222R1

SLEEVE

- oil seal

2шт.

Part of colter spindle assembly P/N 549827R92

1шт.

10

541480R1

SPINDLE

- colter

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

429-1314

NUT,7/8"-14, G8

NUT - hex, slotted, 7/8 inch NF, Grade 8

1шт.

Part of colter spindle assembly P/N 549827R92

1шт.

11

59158C1

SUPPORT ASSY.

SUPPORT - inside blade

1шт.

12

474252R2

COULTER

RIPPLED 20"

1шт.

13

474251R1

DISC

- colter, 20 inch plain

1шт.

14

59159C1

SUPPORT ASSY.

SUPPORT - outside blade

1шт.

15

523025R2

HALF BLADE

DISC colter, plain edge, flat, 17 inch

1шт.

16

469191R3

BLADE

DISC colter, plain edge, flat, 17 inch

1шт.
