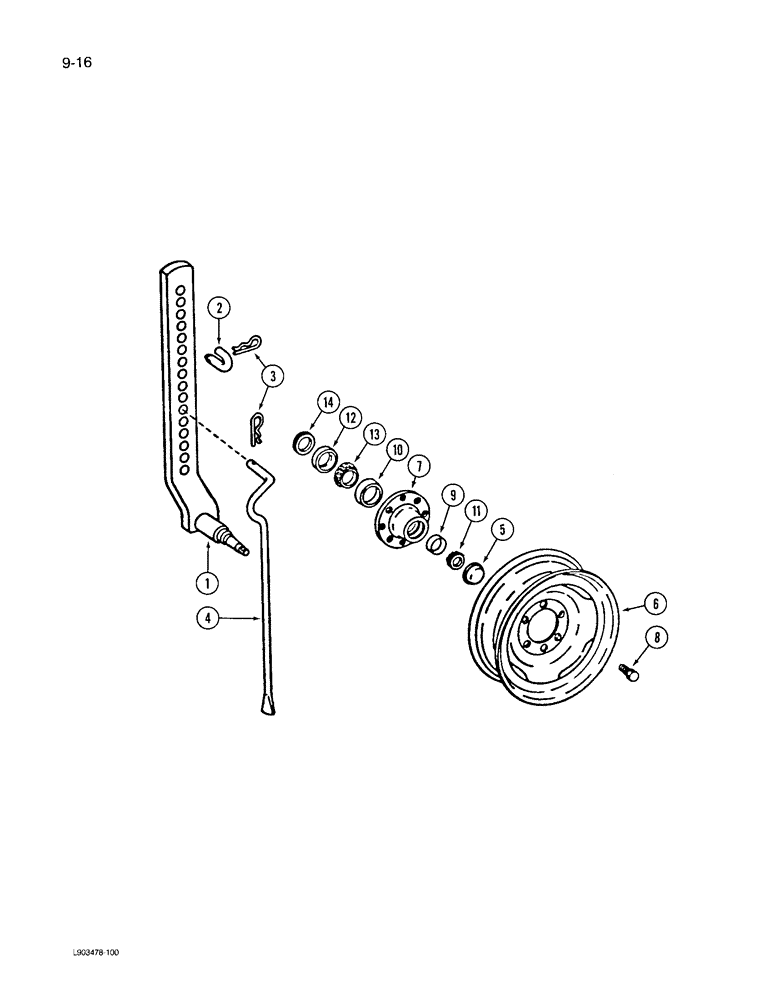

Запчасти Case IH 735 (9-16) - GAUGE WHEEL

1

112652C4

SUPPORT ASSY.

STANDARD

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, hardened

2шт.

69442D

NUT

- slotted hex, 3/4 inch NF

1шт.

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

2

520620R1

AXLE PIN

PIN - standard retaining

1шт.

3

1978738C1

HAIR PIN COTTER

2шт.

4

490680R1

ROD

BAR - gauge wheel

1шт.

5

663908R1

CAP

- hub

1шт.

6

481344R91

WHEEL

- 14 x 8 inch (Use 9.5L - 14 six ply tire)

1шт.

810768C1

VALVE

- tubeless tire steel

1шт.

7

465493R2

HUB

- wheel, 6 bolt

1шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, straight, 1/4 inch NF

1шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-1/2 inch

6шт.

9

371883R1

BEARING CUP

Outer

1шт.

10

G57451

BEARING, CUP

CUP - bearing

1шт.

11

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer

1шт.

12

667564R2

SLEEVE

RING - wear sleeve

4шт.

13

G57452

ROLLER BEARING

CONE - bearing

1шт.

14

667599R92

SEAL

- wheel hub oil

1шт.
